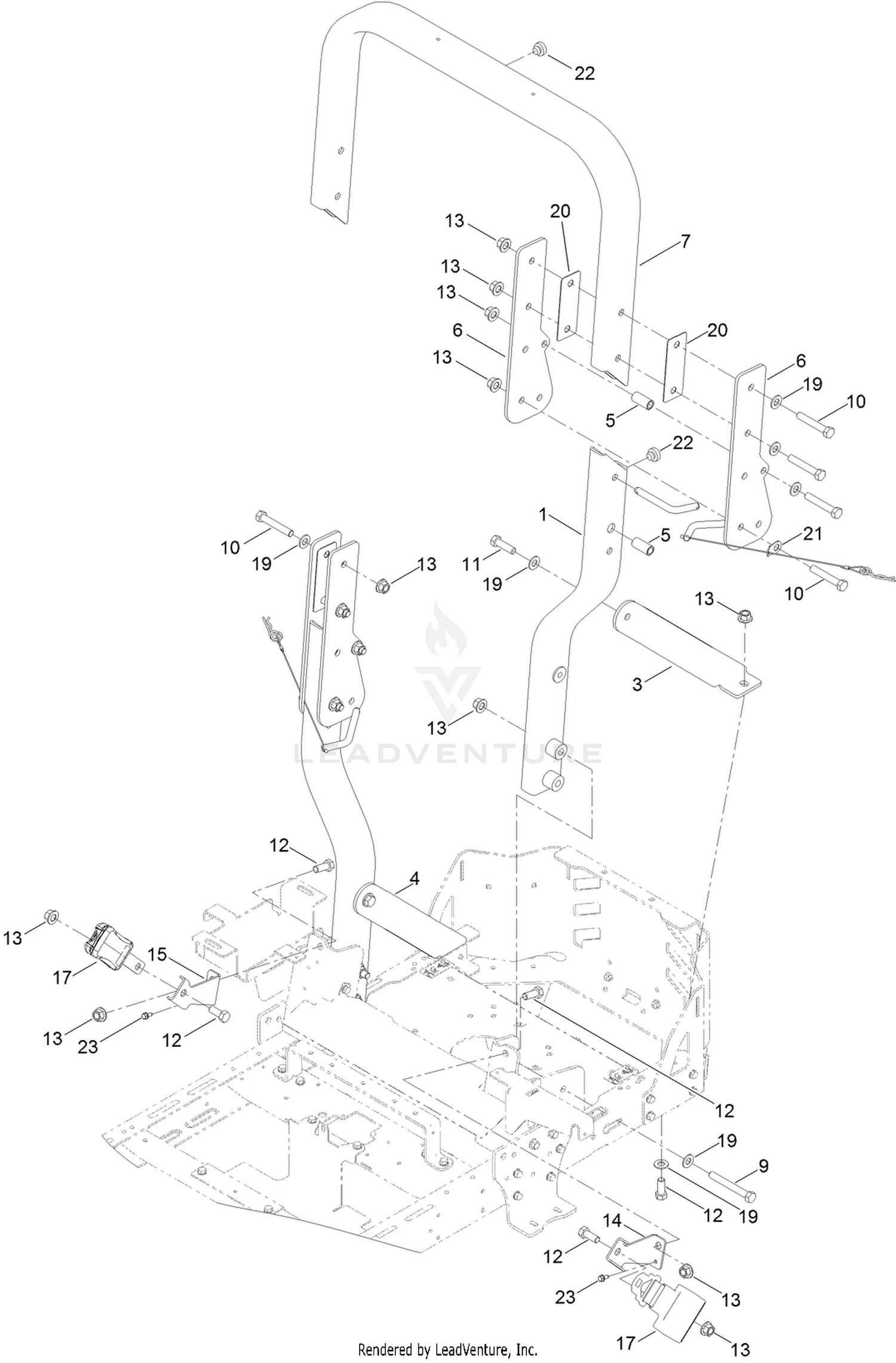

Roll-Over Protection System Assembly No. 136-7495
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-5061-03 | TUBE-ROPS, LOWER (LH) Price: $160.30 |
| 3 | 136-5550-03 | BRACKET-SUPPORT (LH) Price: $32.03 |
| 4 | 136-5551-03 | BRACKET-SUPPORT (RH) Price: $32.03 |
| 5 | 137-5053 | SPACER Price: $10.21 |
| 6 | 137-5052-03 | PLATE-SIDE Price: $24.63 |
| 7 | 137-5057-03 | TUBE-ROPS, UPPER Price: $123.29 |
| 9 | 325-17 | SCREW-HH Price: $2.90 |
| 10 | 325-12 | SCREW-HH Price: $2.27 |
| 11 | 325-7 | SCREW-HH Price: $1.53 |
| 12 | 325-5 | SCREW-HH Price: $1.20 |
| 13 | 99-5107 | NUT-LOCK Price: $1.77 |
| 14 | 136-5591-03 | BRACKET-BELT, SEAT Price: $17.24 |
| 15 | 136-5592-03 | BRACKET-BELT, SEAT Price: $17.24 |
| 17 | 109-9805 | SEAT BELT KIT Price: $212.10 |
| 19 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 20 | 119-8926 | SPACER-ROPS Price: $2.79 |
| 21 | 119-8970 | PIN-ROPS W/ LANYARD Price: $21.50 |
| 22 | 104-1412 | BUMPER-RUBBER Price: $16.98 |
