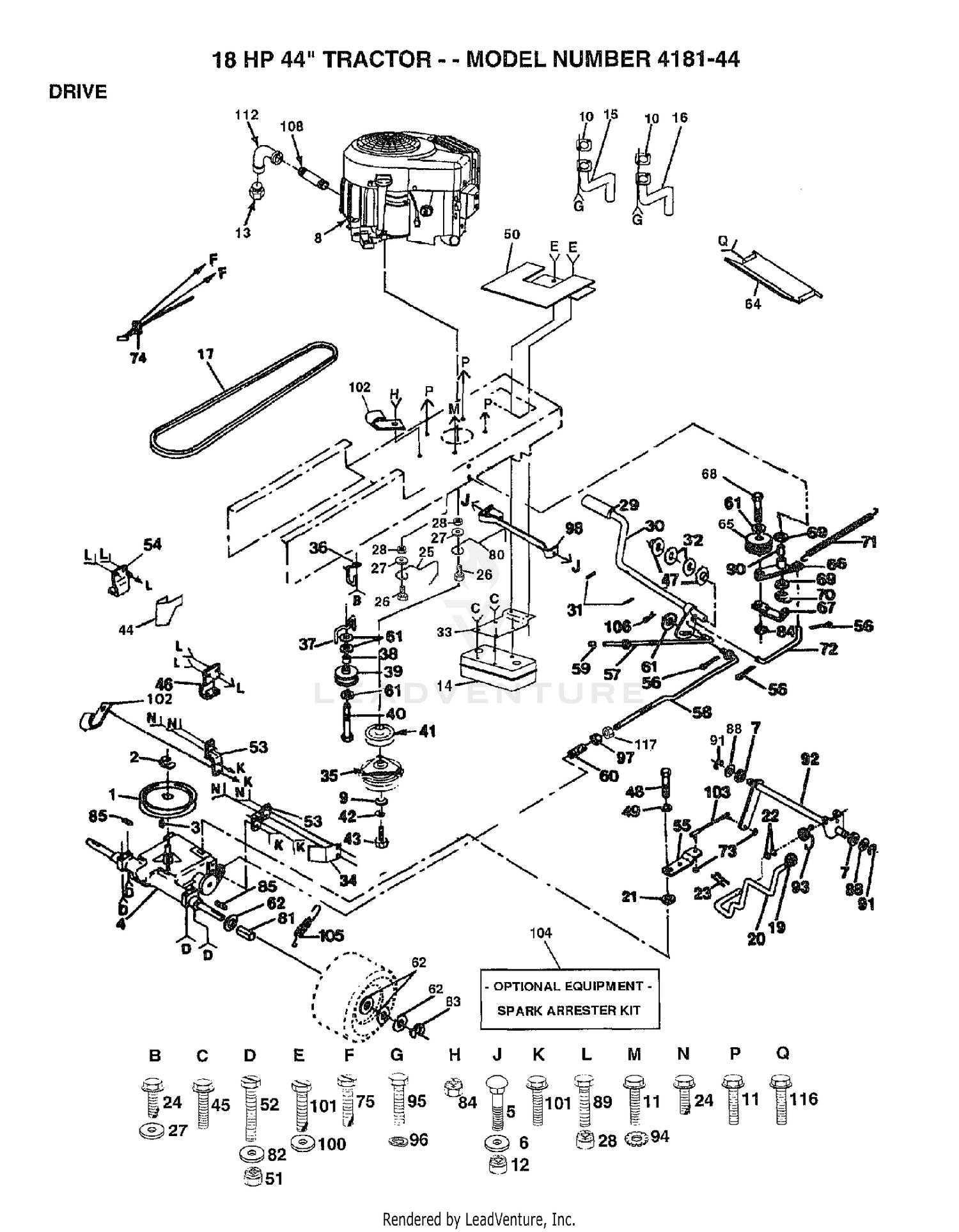

| Ref | Part Number | Description |
|---|
| 1 |
532121327 |
Transaxle (Driven) Pulley (AYP part number) Price: $22.03 |
| 1 |
X-159-3 |
Screw Price: Call Us |
| 2 |
235057 |
Gasket Price: Call Us |
| 2 |
812000004 |
RING Price: $3.99 |
| 3 |
532125096 |
KEY STD (1373) DANA This part replaces 532002228. Price: $3.99 |
| 4 |
TBD |
Price: Call Us |
| 5 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 6 |
819111012 |
WASHER T Price: $3.99 |
| 7 |
532071208 |
BUSHING.STEERING.ROD Price: $3.99 |
| 9 |
532126197 |
WASHER Price: $4.99 |
| 11 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 12 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 13 |
TBD |
Price: Call Us |
| 14 |
532122440 |
Price: $86.29 |
| 15 |
532144069 |
EXHAUST ASM. LEFT Price: $39.99 |
| 16 |
532144068 |
EXHAUST ASM. RIGHT Price: $22.99 |
| 17 |
532123796 |
BELT.GROUND.DRIVE Price: $29.99 |
| 19 |
532106933 |
KNOB T (1/2-HOLE) Price: $3.99 |
| 20 |
532141002 |
Rod Shifter (AYP part number) This part replaces 532123781. Price: $16.58 |
| 21 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 22 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 23 |
876020416 |
PIN COTTER Price: $3.99 |
| 24 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 25 |
532121218 |
Keeper, Belt, Engine, L.H. (AYP part number) Price: $2.86 |
| 26 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 27 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 28 |
873680600 |
LOCKNUT Price: $1.99 |
| 29 |
532008883 |
PEDAL COVER Price: $3.99 |
| 30 |
532122424 |
Shaft Asm Pedal Foot 1 930 (AYP part number) Price: $21.56 |
| 31 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) Price: $3.99 |
| 32 |
819211616 |
WASHER LT Price: $3.99 |
| 33 |
532122439 |
Bracket Muffler Mounting (AYP part number) Price: $6.27 |
| 34 |
532123792 |
KEEPER,BELT RH Price: $3.99 |
| 35 |
532137140 |
Clutch, Electric (AYP part number) Price: $279.99 |
| 36 |
532136715 |
Keeper Belt Chassis Span Ctr (AYP part number) This part replaces 532104777. Price: $6.79 |
| 37 |
532109070 |
BELT KEEPER LT Price: $3.99 |
| 38 |
532124965 |
SPACER T This part replaces 532004470. Price: $3.99 |
| 39 |
532123674 |
Idler, Flat (AYP part number) This part replaces 532004859. Price: $17.99 |
| 40 |
874760644 |
BOLT Price: $3.99 |
| 41 |
532123795 |
Pulley, Engine (AYP part number) Price: $27.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 43 |
501606501 |
Speed Clip This part replaces 871170768. Price: $1.99 |
| 44 |
532123791 |
KEEPER BELT LH Price: $5.99 |
| 45 |
817190408 |
Screw, Hex Washer Hd. Thd. Cutting 1 4-20 x 1/2 (AYP part number) Price: $5.99 |
| 46 |
532123776 |
Bracket, Transaxle, RH (AYP part number) Price: $4.06 |
| 47 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 48 |
871040412 |
BOLT LT Price: $3.99 |
| 49 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 50 |
532143600 |
HEAT SHIELD Price: $6.99 |
| 51 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 52 |
874780544 |
BOLT HEX Price: $3.99 |
| 53 |
532123787 |
STRAP TORQUE Price: $2.99 |
| 54 |
532123780 |
BRKT TRANS LH Price: $4.99 |
| 55 |
532123794 |
ARM,SHIFT Price: $2.38 |
| 56 |
876020412 |
COTTER PIN Price: $3.99 |
| 57 |
532133261 |
BRAKE PARK ROD Price: $3.99 |
| 58 |
532123786 |
ROD BRAKE Price: $24.99 |
| 59 |
532071673 |
PLUNGER CAP Price: $3.99 |
| 60 |
532126909 |
SPRING,ROD BRAKE Price: $2.99 |
| 61 |
819131316 |
WASHER Price: $2.99 |
| 62 |
532123800 |
WASHER Price: $3.99 |
| 64 |
532128953 |
Shield Heat Browning LT/YT (AYP part number) Price: $3.08 |
| 65 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 66 |
532123789 |
Bellcrank Assembly (Inc. Key No. 54) (AYP part number) Price: $13.07 |
| 67 |
532123205 |
RETAIN BELT Price: $3.99 |
| 68 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 69 |
532110812 |
WASHER LT Price: $3.10 |
| 70 |
812000039 |
KLIP RING Price: $3.99 |
| 71 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 73 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 873530400. Price: $2.99 |
| 74 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532132747. Price: $22.99 |
| 75 |
817720410 |
Screw, Hex, Thread Cutting 1/4 - 20 x 5/8 TY23 (AYP part number) Price: $5.99 |
| 80 |
532105730 |
KEEPER,BLT ENG LT Price: $2.99 |
| 81 |
532108097 |
SPACER HYT Price: $3.99 |
| 82 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 83 |
812000053 |
E RING HYT Price: $3.99 |
| 84 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 85 |
532009396 |
SQ KEY Price: $3.99 |
| 88 |
819212016 |
WASHER D Price: $3.99 |
| 89 |
874760612 |
BOLT Price: $1.99 |
| 90 |
532105706 |
BEARING LT (2 2) Price: $3.99 |
| 91 |
812000008 |
KLIP RING Price: $3.99 |
| 92 |
532123772 |
Shaft Assembly, Shifter (AYP part number) Price: $13.22 |
| 93 |
532123782 |
SPRING,TORSION Price: $2.99 |
| 94 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 95 |
874780412 |
Bolt, Hex Head, Fin. 1/4-20 x 3/4 Grade 5 (AYP part number) Price: $2.99 |
| 96 |
810040400 |
LOCKWASHER Price: $3.99 |
| 97 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 98 |
532137141 |
BRACKET ASM MTG Price: $3.99 |
| 100 |
819132012 |
WASHER This part replaces 532061537. Price: $2.99 |
| 101 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 102 |
532002751 |
CLIP T Price: $2.42 |
| 103 |
532123793 |
Rod, Tie (AYP part number) Price: $27.99 |
| 104 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 105 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 106 |
532004497 |
RETAINER M Price: $5.99 |
| 108 |
813280336 |
Pipe Nipple, Standard (AYP part number) This part replaces 813090336. Price: Call Us |
| 112 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 116 |
817021008 |
SCREW Price: $1.99 |
