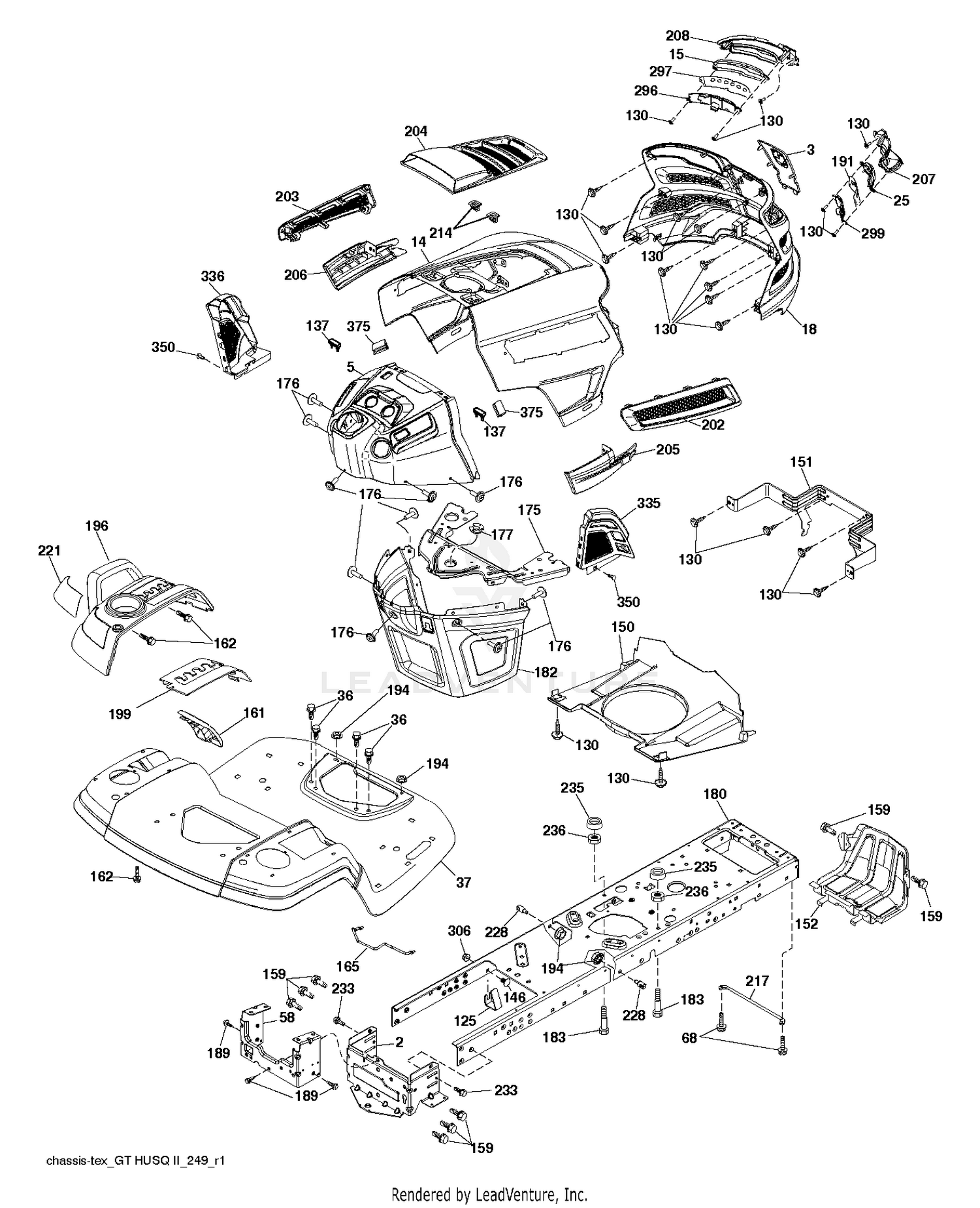

| Ref | Part Number | Description |
|---|
| 1 |
133-2911 |
LIFT ARM ASM #1 This part replaces 110-0991. Price: $382.73 |
| 2 |
133-2914 |
LIFT ARM ASM #4 This part replaces 114-8874. Price: $382.73 |
| 2 |
532412282 |
DRAWBAR.LOWER.2PC.18/22 Price: $32.99 |
| 3 |
133-2915 |
LIFT ARM ASM #5 This part replaces 110-0995. Price: $616.56 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
117-0208 |
SHAFT-PIVOT, LIFTARM Price: $96.42 |
| 5 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 5 |
590748819 |
DASH.UPR.GT2.DUAL.RD.PTO.MC This part replaces 501747101. Price: $44.99 |
| 6 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 9 |
325-7 |
SCREW-HH Price: $1.53 |
| 11 |
117-5154-01 |
PLATE-BRIDGE 1 AND 4 Price: $38.81 |
| 12 |
327-7 |
SCREW-HH Price: $5.69 |
| 13 |
110-0922 |
HOOP-CHAIN Price: $15.10 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 14 |
63-8410 |
WASHER Price: $1.76 |
| 15 |
323-7 |
SCREW-HH Price: $0.65 |
| 15 |
597247301 |
Grilles This part replaces 585420301. Price: $169.99 |
| 16 |
138-1248 |
PIVOT YOKE ASM This part replaces 107-2052. Price: $429.41 |
| 17 |
92-1298 |
PIN-LYNCH Price: $2.27 |
| 18 |
597247201 |
Grilles This part replaces 587523401. Price: $84.99 |
| 18 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
117-5153-01 |
PLATE-BRIDGE 5 Price: $35.44 |
| 21 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 22 |
107-4027 |
CAP Price: $12.59 |
| 23 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 24 |
325-5 |
SCREW-HH Price: $1.20 |
| 25 |
585420201 |
LENS.RH Price: $119.99 |
| 25 |
84-2451 |
CHAIN-STRAIGHT, 5 LINK Price: $9.25 |
| 26 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 30 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ Price: $219.99 |
| 58 |
532412281 |
DRAWBAR.UPPER.2PC,LRG.FENDER Price: $37.99 |
| 68 |
596030701 |
Screws This part replaces 539990858. Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532439929. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 593346301. Price: $229.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
586182801 |
INSERT INFLECT.RH Price: $3.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 196 |
532439674 |
CONSOLE.ASM.DECKLIFT.HUSQGT.DL Price: $84.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 233 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 296 |
585420501 |
LED LIGHT.LH Price: $59.99 |
| 297 |
586182901 |
INSERT REFECT LH Price: $3.99 |
| 299 |
585420401 |
LED LIGHT.RH Price: $59.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
