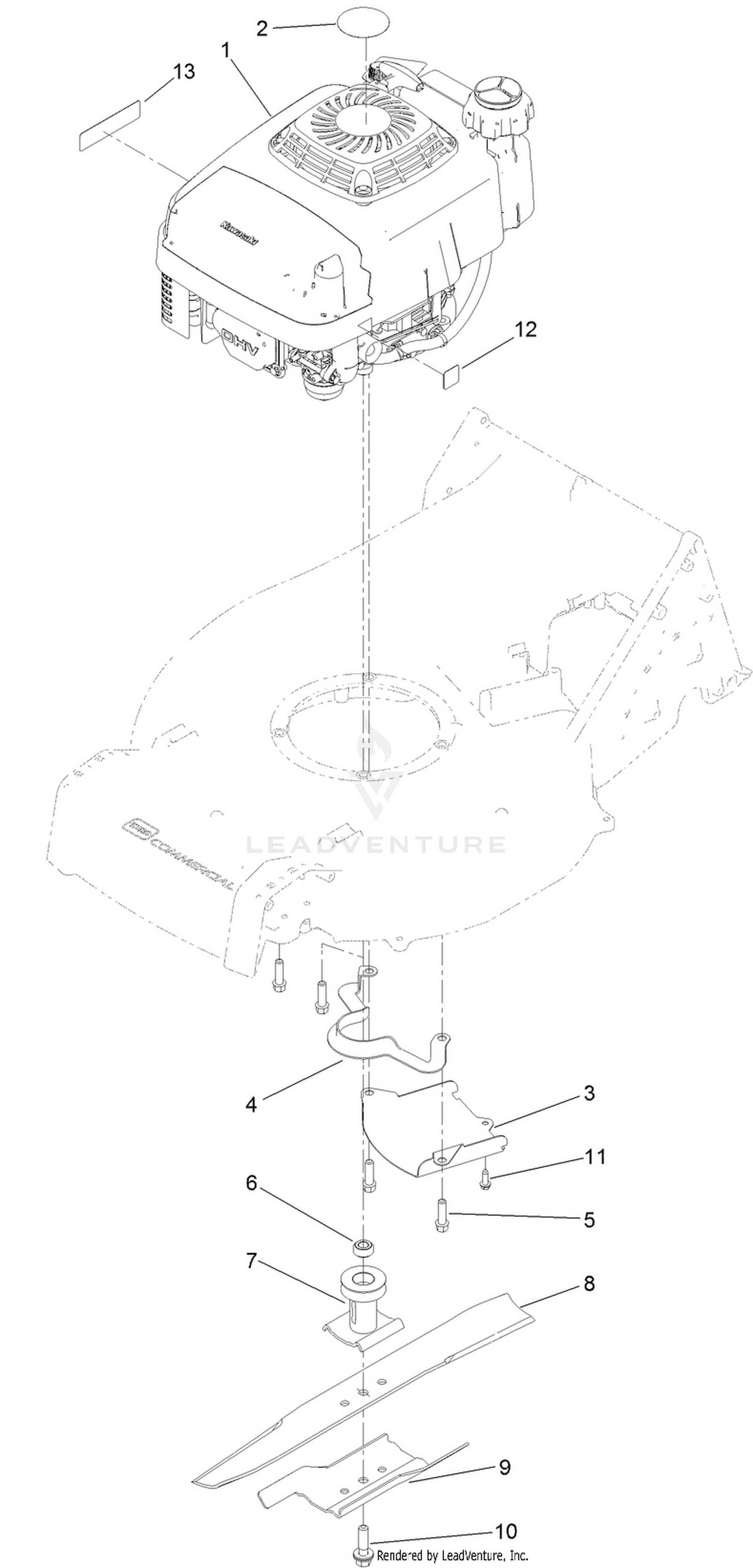

Engine and Blade Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 110-0520 | DECAL Price: $20.04 |
| 3 | 125-1005-03 | SHIELD-GRASS Price: $13.38 |
| 4 | 108-8110-03 | GUIDE-BELT Price: $10.46 |
| 5 | 95-1727 | SCREW-TAPTITE Price: $1.79 |
| 6 | 125-8432 | SPACER-DRIVER, BLADE Price: $1.84 |
| 7 | 106-3987 | DRIVER-BLADE Price: $20.79 |
| 8 | 133-8183-03 | BLADE-RECYCLING, 21IN This part replaces 108-3762-03. Price: $19.68 |
| 9 | 125-1069-03 | ACCELERATOR-BLADE Price: $11.38 |
| 10 | 125-2466 | BOLT-BLADE Price: $2.20 |
| 11 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 12 | 125-8403 | DECAL-PRIMER Price: $2.00 |
