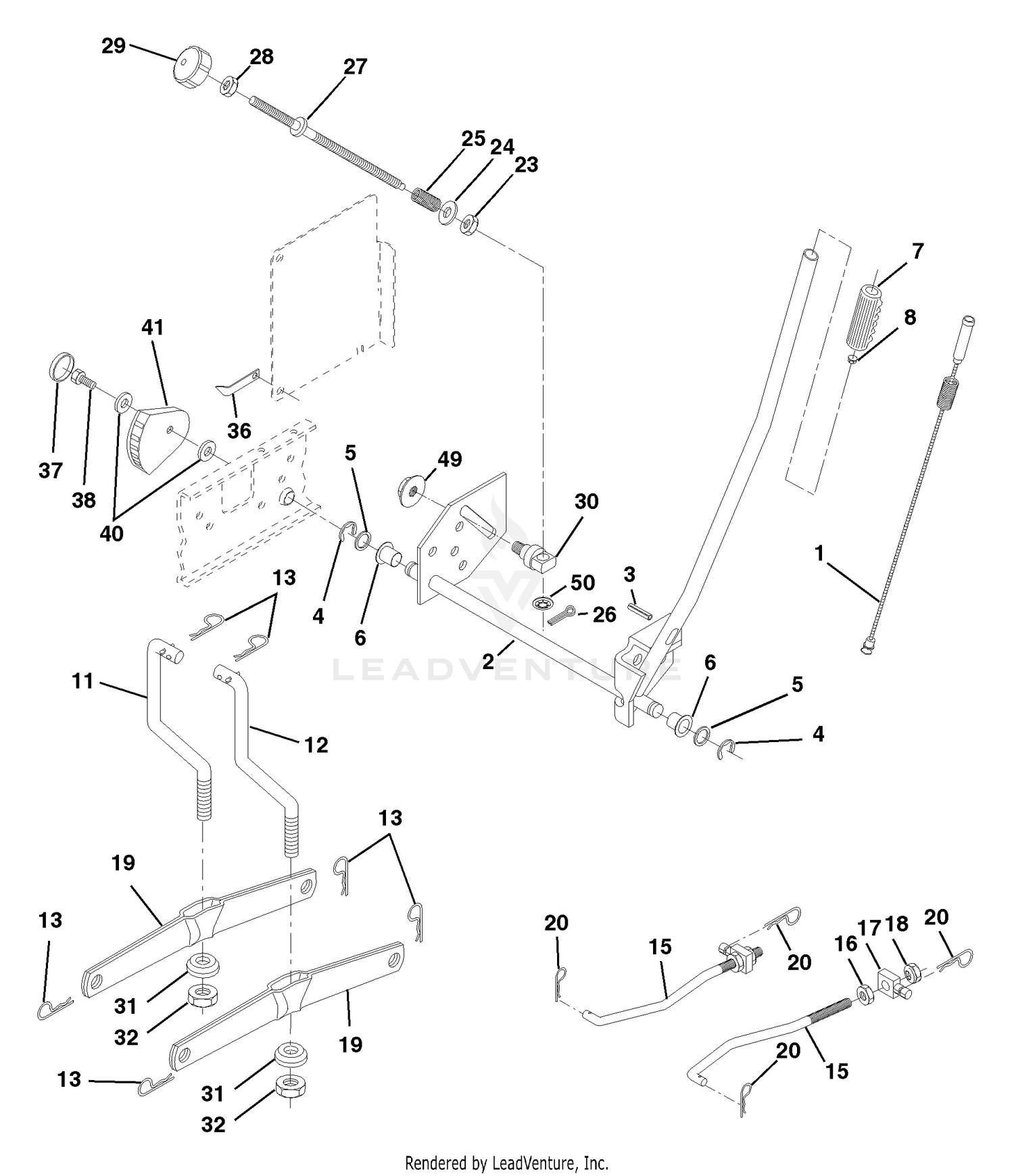

| Ref | Part Number | Description |
|---|
| 1 |
532159460 |
WIRE ASM INNER W/ PLUNGER LT Price: $22.99 |
| 1 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 2 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 3 |
76-1910 |
DISCONTINUED Price: Call Us |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 4 |
92-6533 |
SEAT CUSHION KIT Price: $290.43 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
351-78 |
EDGING Price: $60.98 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 7 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 8 |
351-80 |
CLIP Price: $8.87 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
76-2940 |
BUMPER Price: $9.73 |
| 10 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 12 |
322-3 |
SCREW-HH Price: $0.79 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 13 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 14 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 15 |
532127218 |
FRONT LINK Price: $14.99 |
| 15 |
66-8610 |
DISCONTINUED Price: Call Us |
| 16 |
108-6702 |
ADJUSTER-SEAT, W/HANDLE This part replaces 66-8510. Price: $239.09 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
| 18 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
3218-2 |
NUT-JAM Price: $0.25 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 21 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 22 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 23 |
32128-25 |
NUT-HF Price: $3.19 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 25 |
66-8600 |
FRAME-UPPER Price: $327.08 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 27 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 27 |
532126971 |
ROD ADJ LIFT Price: $5.99 |
| 28 |
322-6 |
SCREW-HH Price: $0.45 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
93-3163 |
SPRING Price: $26.01 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT This part replaces 532140302. Price: $5.99 |
| 31 |
93-3164 |
CAP Price: $11.64 |
| 32 |
69-1180 |
ARMREST Price: $166.08 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 34 |
323-9 |
SCREW-HH Price: $1.29 |
| 35 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 36 |
69-0770 |
BRACKET-ARM, RH Price: $117.82 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532155098 |
IND. HEIGHT STLT Price: $4.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
