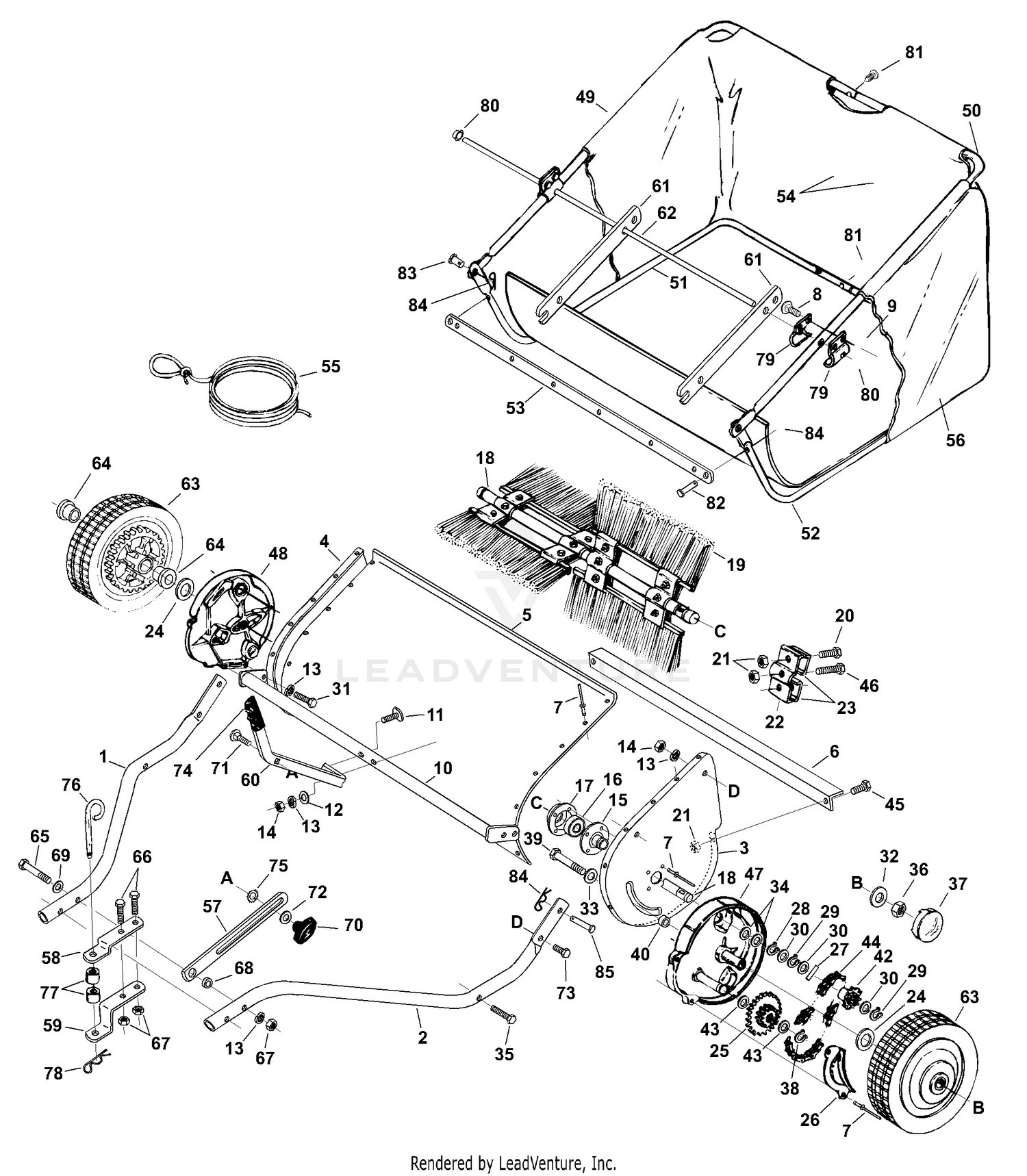

| Ref | Part Number | Description |
|---|
| 1 |
531007410 |
ROD Price: $59.99 |
| 2 |
531007412 |
ROD Price: $59.99 |
| 3 |
531002808 |
PLATE, L.H. Price: $27.73 |
| 4 |
531002809 |
PLATE, R.H. Price: $31.53 |
| 5 |
531007414 |
PLATE Price: $62.99 |
| 6 |
531007416 |
SUPPORT Price: $23.99 |
| 7 |
722785402 |
Rivet This part replaces 722787003. Price: $2.99 |
| 8 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 9 |
531007616 |
NUT Price: $2.99 |
| 10 |
531007419 |
CONTROL Price: $65.99 |
| 11 |
531002815 |
Bolt, Cv. Hd. 5/16-18 x 1-5/8" Lg. Price: $2.93 |
| 12 |
531002816 |
WASHER Price: $1.52 |
| 13 |
735116405 |
WASHER Price: $3.99 |
| 14 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 15 |
506620201 |
BRUSH BUSHING ASSY Price: $73.72 |
| 16 |
601002178 |
This part replaces 531002817. Price: $20.07 |
| 17 |
506620401 |
BEARING RETAINER Price: $24.99 |
| 18 |
601002177 |
This part replaces 506620501. Price: $56.23 |
| 19 |
531007421 |
BRUSH Price: $34.99 |
| 20 |
725237071 |
SCREW This part replaces 725237051. Price: $3.99 |
| 21 |
531007629 |
NUT Price: $1.99 |
| 22 |
506620601 |
BRUSHRETAINER DOUBLE Price: $7.99 |
| 23 |
506620701 |
BRUSH RETAINER SINGLE Price: $11.99 |
| 24 |
531002741 |
Washer, Flat 1-1/8" x .78" x .025" Price: $4.32 |
| 25 |
601001940 |
This part replaces 506621701. Price: $36.66 |
| 26 |
506621801 |
Dust Cover Price: $16.32 |
| 27 |
531007650 |
DOWEL PIN Price: $3.99 |
| 28 |
506622301 |
Ring, Retaining 3/4" Price: $5.25 |
| 29 |
506622401 |
Ring, Retaining .594" Price: $4.77 |
| 30 |
506622501 |
SHIM WASHER Price: $0.99 |
| 31 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 32 |
734117341 |
Washer, Flat 1-1/2" x .375" x .062" Price: $2.24 |
| 33 |
596134901 |
GSPH This part replaces 734117201. Price: $2.99 |
| 34 |
819251816 |
WASHER T This part replaces 506624701. Price: $4.99 |
| 35 |
522751501 |
BOLT This part replaces 531002838. Price: $0.99 |
| 36 |
873610600 |
NUT This part replaces 506622901. Price: $2.99 |
| 37 |
506623001 |
HUB CAP Price: $8.99 |
| 38 |
506623101 |
RETAINING RING 1/2Ä Price: $5.05 |
| 39 |
874610652 |
This part replaces 506623301. Price: $1.51 |
| 40 |
506626601 |
Bushing, Spacer Price: $15.23 |
| 42 |
506623501 |
RATCHET SPROCKET Price: $54.99 |
| 43 |
506623601 |
Washer, 1/2" x 1" x .02" Price: $3.36 |
| 44 |
531002741 |
Chain, Roller Price: $4.32 |
| 45 |
531002821 |
Bolt, Hex 1/4-20 x 1/2" Lg. Price: $1.52 |
| 46 |
531007626 |
BOLT Price: $1.99 |
| 47 |
531002744 |
SHIELD Price: $166.56 |
| 48 |
531002743 |
Housing, Wheel Drive Ass'y. R.H. Price: $54.37 |
| 49 |
506623801 |
UPPER HOPPER TUBE R-H Price: $31.65 |
| 50 |
506623901 |
UPPER HOPPER TUBE L-H Price: $33.45 |
| 51 |
506624201 |
LOWER HOPPER TUBE R-H Price: $31.65 |
| 52 |
506624301 |
LOWER HOPPER TUBE L-H Price: $33.45 |
| 53 |
506621501 |
BAG FRAME STRAP Price: $54.99 |
| 54 |
506624401 |
HOPPER SUPPORT ROD Price: $9.99 |
| 55 |
531002734 |
ROPE Price: $12.99 |
| 56 |
531007669 |
HOPPER BAG 38" Price: $159.99 |
| 57 |
531002828 |
ARM Price: $19.99 |
| 58 |
531002772 |
Bracket, Hitch Price: $46.33 |
| 59 |
506621201 |
HITCH BRACKET Price: $29.99 |
| 60 |
531002831 |
Handle, Height Adjustment Price: $25.50 |
| 61 |
531007423 |
ARM Price: $24.99 |
| 62 |
531007425 |
ROD Price: $22.99 |
| 63 |
601001889 |
WHEEL & TIRE ASS'Y CPL This part replaces 531002746. Price: $100.99 |
| 64 |
531002740 |
BEARING Price: $5.99 |
| 65 |
531002834 |
Bolt, Hex 5/16-18 x 3" Lg. Price: $1.38 |
| 66 |
531002835 |
SCREW Price: $5.99 |
| 67 |
531007616 |
NUT Price: $2.99 |
| 68 |
531002836 |
SPACER Price: $1.38 |
| 69 |
735116450 |
Washer, Flat 11/32" x 11/16" Price: $2.99 |
| 70 |
506626001 |
Knob, Wing 5/16-18 Thread Price: $22.27 |
| 71 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 72 |
734116401 |
WASHER BRB 8.4X17 Price: $5.99 |
| 73 |
531007426 |
BOLT Price: $1.99 |
| 74 |
506623701 |
BRACE ROD Price: $18.33 |
| 75 |
531002839 |
WASHER, TOOTH LOCK Price: $1.99 |
| 76 |
506625601 |
Pin, Hitch Price: $24.08 |
| 77 |
506626501 |
Tube, Hitch Spacer Price: $20.57 |
| 78 |
721680251 |
R-CLIP Price: $4.99 |
| 79 |
506626701 |
HOPPER MOUNTING CLAMPS Price: $32.99 |
| 80 |
531002840 |
NUT Price: $1.99 |
| 81 |
531007683 |
PLUG Price: $7.99 |
| 82 |
531007684 |
PIN Price: $4.99 |
| 83 |
531007685 |
PIN Price: $5.99 |
| 84 |
531002843 |
Pin, Hair Cotter 3/32" #3 Price: $5.50 |
