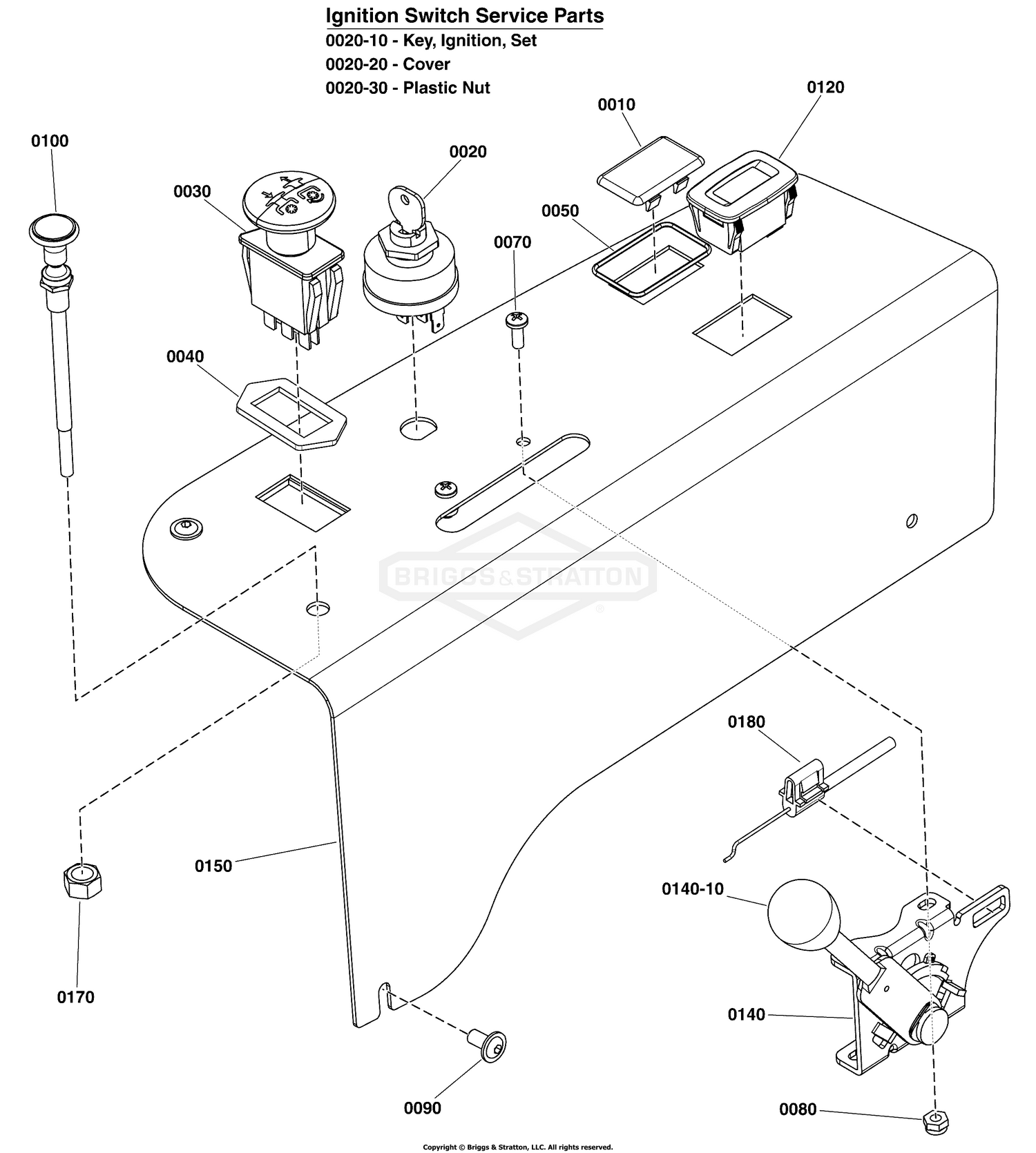

Instrument Control Panel Group

Instrument Control Panel Group

Parts (13)

RefPart NumberDescription
0010 1709188SM PLUG, BLACK PLASTIC This part replaces 1709188. Price: $4.62
0020 5020927FS SWITCH, IGNITION This part replaces 5020927. Price: $30.37
0030 1722887SM SWITCH-PTO PUSH This part replaces 1722887. Price: $30.86
0040 5022222SM RING, SWITCH RETAINER This part replaces 5022222. Price: $3.94
0050 5022269SM O-RING, 7/8" ID X 1/1 This part replaces 5022269. Price: $2.97
0070 5025179X6SM SCREW - #10-24 This part replaces 5025179X6. Price: $6.24
0080 5025271FS NUT This part replaces 5025271. Price: $3.62
0090 84002228 SCREW, FLANGE This part replaces 5106469. Price: $2.22
0100 5047779SM CABLE, CHOKE CTRL This part replaces 5047779. Price: $49.05
0120 84008510 HOURMETER (6 Pin Connector) Price: $30.73
0140 5101537SM LEVER, THROTTLE CONTR This part replaces 5101537. Price: $44.64
0150 5410303AYP PLATE, CONTROL PANEL This part replaces 5410303A. Price: $61.82
0170 703895 NUT, HEX, 3/8-24 This part replaces 5025035SM. Price: $3.82
