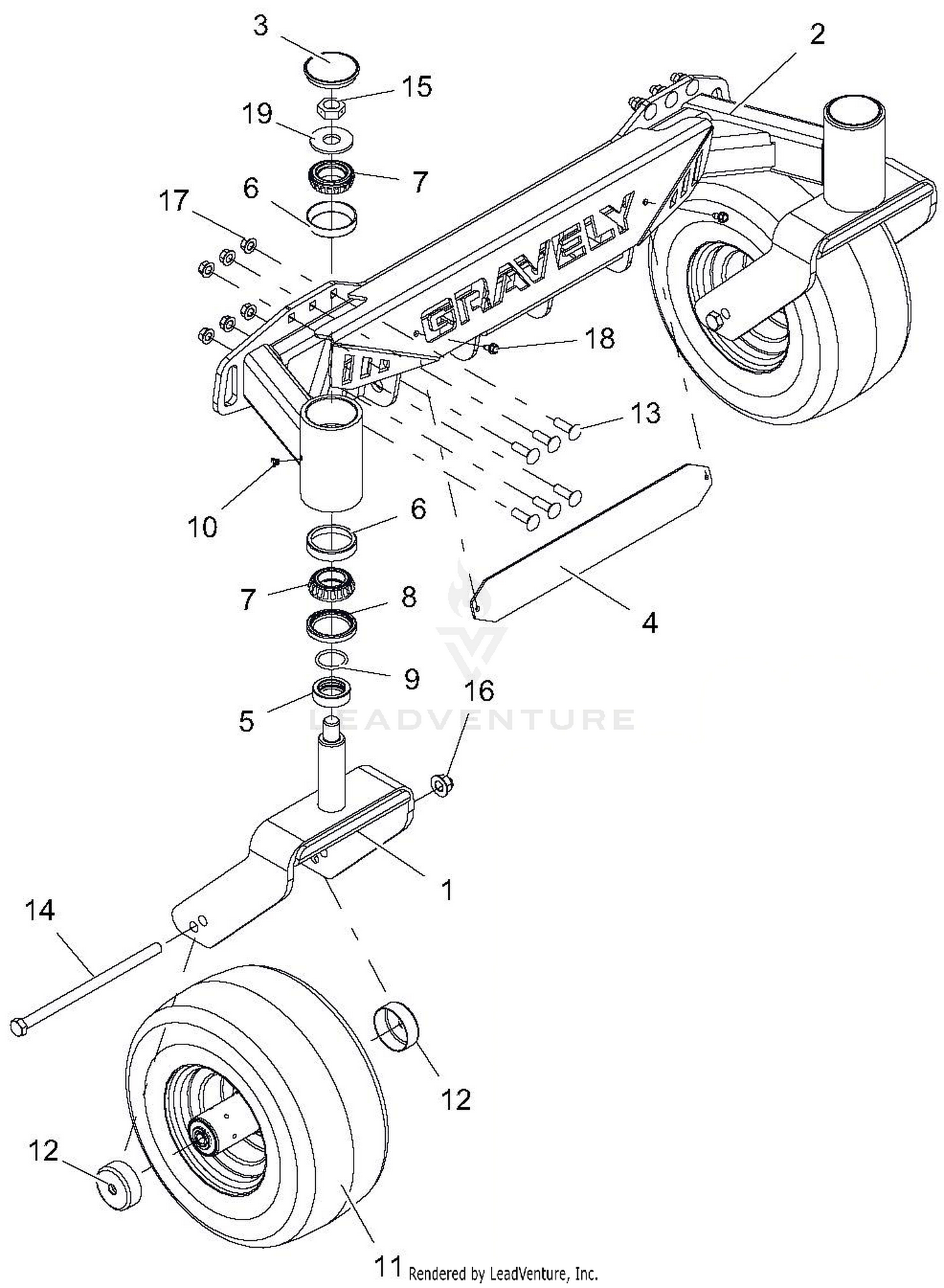

| Ref | Part Number | Description |
|---|
| 2 |
04364853 |
WMT, 48 FRONT AXLE Price: $444.45 |
| 3 |
03925900 |
CAP, DUST Price: $10.45 |
| 5 |
04861500 |
SPCR, FRONT CASTER FORK This part replaces 04718600. Price: $12.45 |
| 6 |
05404600 |
BRG-CUP 2.328X.465 Price: $13.45 |
| 7 |
05404700 |
BRG-CONE 1.25X.66 Price: $19.95 |
| 8 |
05600432 |
SEAL, OIL 1.75 X 2.332 X .312 Price: $10.95 |
| 9 |
05600515 |
O-RING, Price: $2.45 |
| 10 |
07001723 |
PLUG, .250-28 X .185 HEX HEAD Price: $2.45 |
| 11 |
07101308 |
ASM, WHL/TIRE 13X6.50-6 SEMI-PNEUMATIC - CHARCOAL GRAY - SMOOTH TREAD This part replaces 07101027. Price: $164.95 |
| 12 |
09357800 |
SHIELD, WHEEL BEARING Price: $10.95 |
| 13 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 14 |
05901930 |
BLT, HEX .50-13X9.00 G5 ZCC This part replaces 05961200. Price: $9.95 |
| 15 |
06536900 |
NUT-JAM CTRLK .75-16 YWZC Price: $5.45 |
| 16 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 17 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 18 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
