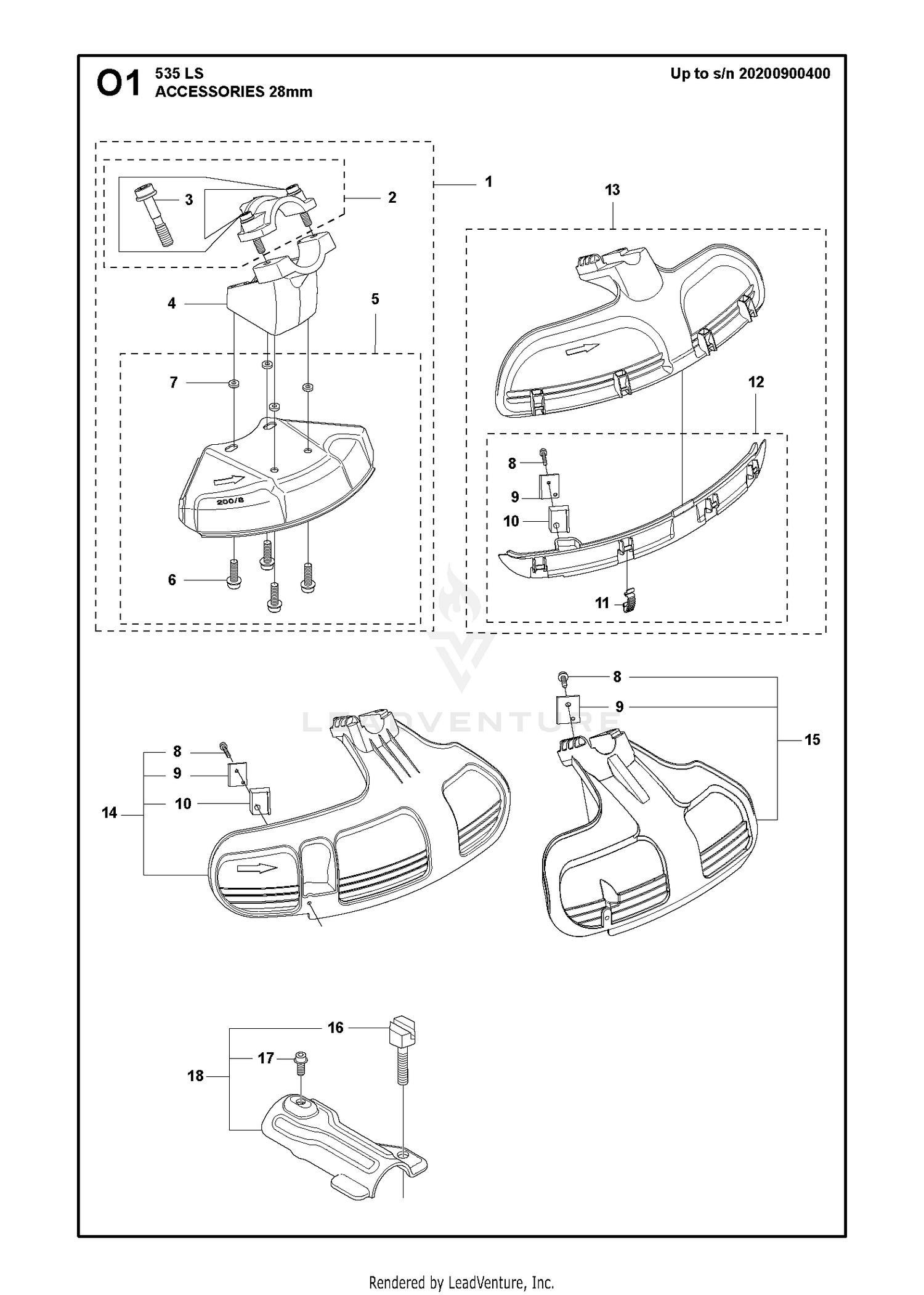

ACCESSORIES
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501320402 | ADAPTER Price: $37.99 |
| 2 | 574530601 | CLAMP Price: $24.99 |
| 4 | 501320802 | ADAPTER Price: $22.99 |
| 5 | 574532601 | BLADE GUARD Price: $24.99 |
| 6 | 503200216 | SCREW Price: $3.99 |
| 7 | 574039501 | LOCKING NUT Price: $2.99 |
| 8 | 503216825 | SCREW Price: $2.99 |
| 9 | 503798802 | BLADE Price: $5.99 |
| 10 | 115-4105 | GEAR CASE ASM Price: $560.23 |
| 10 | 544124501 | DISTANSBLOCK Price: $5.99 |
| 11 | 537387201 | BUCKLE Price: $3.99 |
| 12 | 537396307 | SPLASH GUARD SHIELD ASY W/ RET This part replaces 537396303. Price: $44.99 |
| 14 | 537349403 | PROTECTOR Price: $27.99 |
| 15 | 502448101 | TRIMMER GUARD ASSY Price: $24.99 |
| 16 | 537189501 | SCREW Price: $3.99 |
| 17 | 503200710 | SCREW M5 X 10 Price: $4.99 |
| 18 | 574306803 | CLAMP Price: $8.99 |
| 20 | 127-0425 | PLUG This part replaces 98-9598. Price: $4.34 |
| 25 | 98-7487 | PLUG Price: $3.18 |
| 30 | 98-7562 | WASHER-PLAIN Price: $0.36 |
| 40 | 98-9388 | JOINT-PIPE Price: $31.66 |
| 50 | 98-9544 | SPRING Price: $0.94 |
| 60 | 98-9543 | SEAT-VALVE Price: $26.61 |
| 70 | 98-9380 | BALL Price: $0.84 |
| 80 | 98-9540 | OIL PUMP ROTOR ASM Price: $271.67 |
| 85 | 107-9069 | COVER-PUMP, OIL Price: $27.77 |
| 90 | 107-9071 | SCREW Price: $0.36 |
| 100 | 107-9072 | PIN-STRAIGHT Price: $0.28 |
| 110 | 98-9633 | GASKET-CASE, GEAR Price: $30.19 |
| 120 | 100-1765 | BOLT This part replaces 107-9073. Price: $1.59 |
| 130 | 105-3797 | BOLT Price: $1.40 |
| 140 | 98-9356 | BOLT Price: $2.06 |
| 150 | 107-9074 | BOLT Price: $1.43 |
| 160 | 99-3510 | BOLT This part replaces 98-9586. Price: $0.80 |
| 170 | 105-3709 | STUD Price: $1.13 |
| 180 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 200 | 119-8038 | SEAL-OIL Price: $40.16 |
| 210 | 105-3710 | STUD Price: $1.16 |
| 220 | 99-3515 | PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
