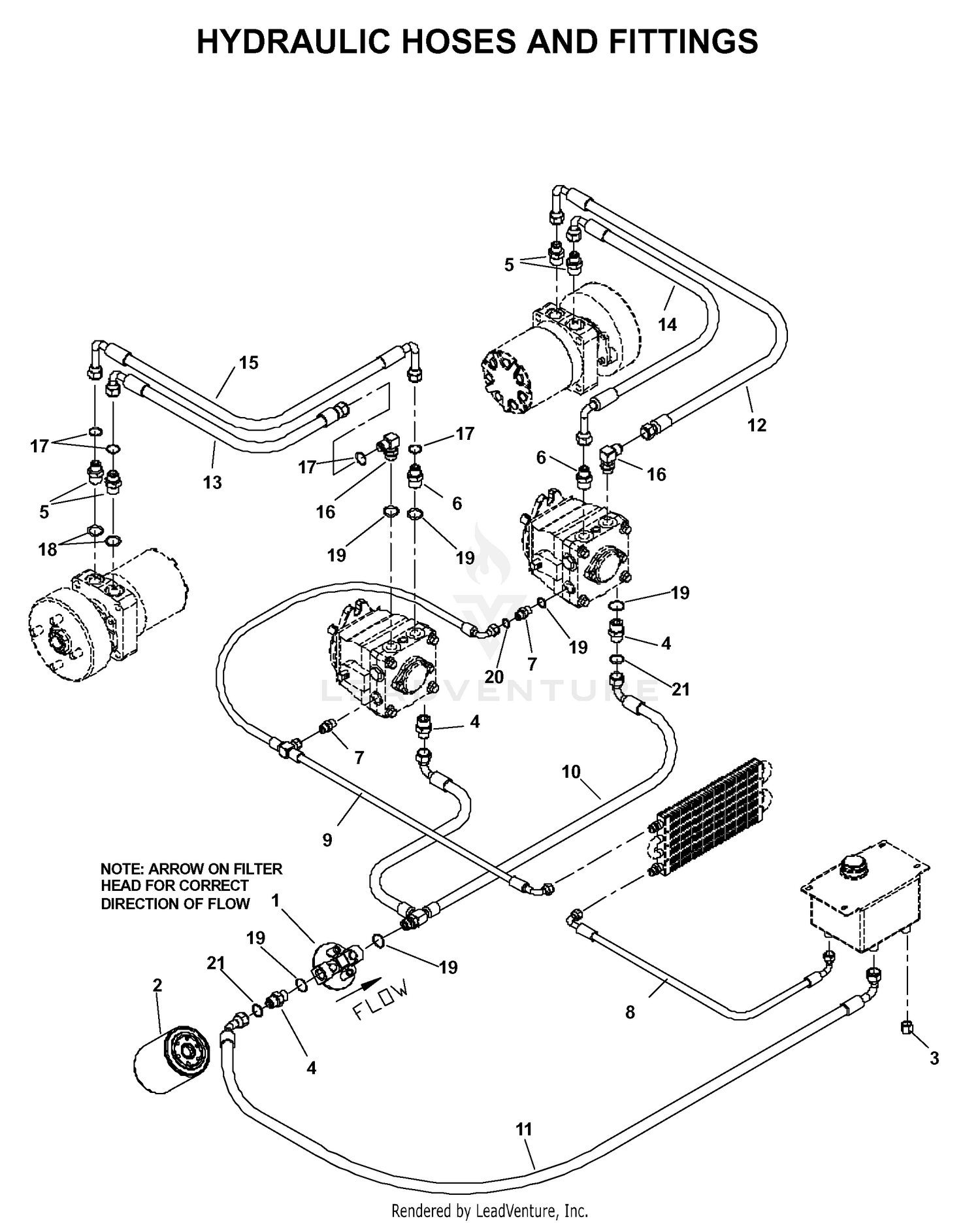

TUBE
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5573 | COOLANT RESERVOIR ASM Price: $134.92 |
| 1 | 539105892 | FILTER HEAD Price: $37.99 |
| 2 | 539105893 | HYDRAULIC OIL FILTER Price: $32.99 |
| 2 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 3 | 3274-55 | SCREW-HSBH Price: $3.19 |
| 3 | 539105168 | NUT 9/16-18 JIC CAP Price: $2.99 |
| 4 | 340-9 | FITTING-HYD, STRAIGHT Price: $67.47 |
| 4 | 539101237 | FITTING, STRAIGHT F6400-8-8-0 Price: $7.99 |
| 5 | 121-5554 | SEAL-FOAM Price: $13.39 |
| 5 | 539106357 | FITTING Price: $8.99 |
| 6 | 110-5310-01 | BRACKET-MOUNTING Price: $55.86 |
| 6 | 539106358 | FITTING Price: $12.99 |
| 7 | 110-5276 | SEAL-FOAM Price: $16.24 |
| 7 | 539106359 | FITTING Price: $6.99 |
| 8 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 9 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 9 | 539106361 | T-HOSE Price: $40.10 |
| 10 | 120-3840 | OIL COOLER AND RADIATOR ASM Price: $2,427.80 |
| 10 | 539106362 | T-HOSE Price: $84.99 |
| 11 | 120-3815-03 | FRAME-RADIATOR Price: $638.73 |
| 11 | 539106363 | HOSE Price: $37.99 |
| 12 | 3234-30 | SCREW-HHF Price: $0.41 |
| 12 | 539106364 | HOSE Price: $69.99 |
| 13 | 121-5568-0P | BRACKET-RESEVOIR This part replaces 121-5568-03. Price: $22.62 |
| 13 | 539106365 | HOSE Price: $64.99 |
| 14 | 133-2994 | HOSE-FORMED Price: $36.26 |
| 14 | 539106366 | HOSE Price: $59.99 |
| 15 | 121-5558 | HOSE-RADIATOR, LOWER Price: $50.96 |
| 15 | 539106367 | HOSE Price: $89.99 |
| 16 | 125-2901 | SHROUD-FAN, TURBO DIESEL Price: $264.73 |
| 16 | 539106370 | FITTING Price: $19.99 |
| 17 | 3269-15 | RIVET-POP Price: $0.54 |
| 17 | 539108983 | O-RING Price: $2.99 |
| 18 | 3234-5 | SCREW-HHF Price: $0.42 |
| 18 | 539103114 | O-RING Price: $2.99 |
| 19 | 115-1554 | LATCH-DRAW Price: $38.46 |
| 19 | 539103115 | O RING Price: $2.99 |
| 20 | 32104-32 | SCREW-HWH Price: $1.99 |
| 20 | 539103118 | O RING Price: $2.99 |
| 21 | 121-5575 | SEAL-FOAM Price: $3.07 |
| 21 | 539103119 | O RING Price: $3.99 |
| 22 | 121-5576 | SEAL-FOAM Price: $4.11 |
| 23 | 120-3844-03 | SCREEN Price: $1,127.09 |
| 24 | 93-6028 | PLATE-LOGO Price: $13.70 |
| 25 | 94-2638 | NUT-FLAT Price: $0.54 |
| 26 | 115-1556 | PIN-BALL, DETENT Price: $8.01 |
| 27 | 110-8752 | HOSE-FUEL Price: $9.32 |
| 28 | 110-0969 | SEAL-FOAM Price: $2.48 |
| 29 | 125-2905 | CAP-SHROUD, DIESEL Price: $114.82 |
| 30 | 125-8767 | SEAL-FOAM Price: $12.86 |
| 31 | 93-7272 | DECAL-WARNING Price: $6.37 |
