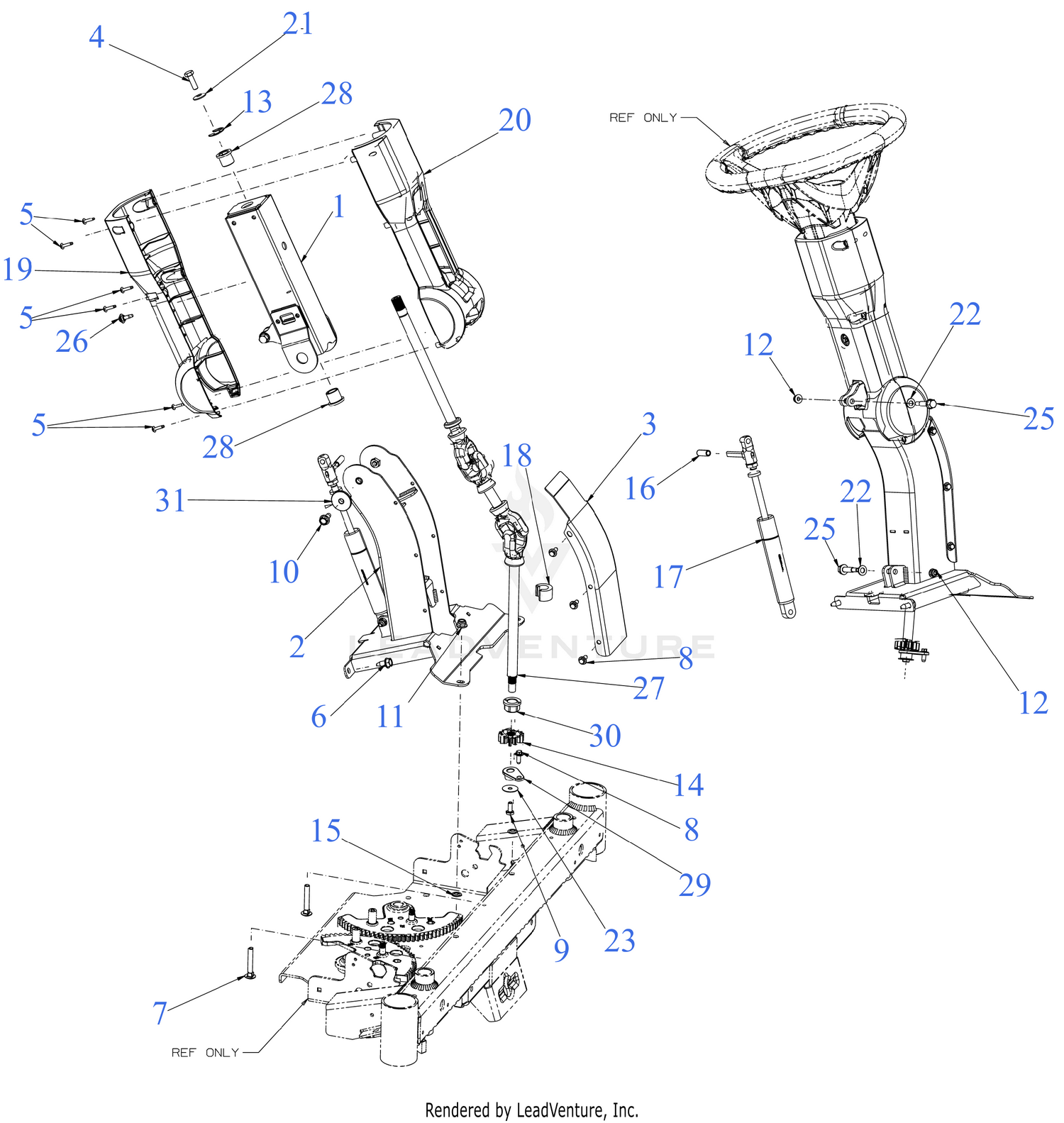

| Ref | Part Number | Description |
|---|
| 4 |
710-0117A |
HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5 Price: $4.64 |
| 5 |
710-04194 |
SCREW 8-16 x 3/4 Price: $3.66 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-04532 |
CARRIAGE BOLT 5/16-18 x 2.00 GR5 Price: $5.50 |
| 8 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 9 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 10 |
710-1260A |
SCREW 5/16-18 x .750 Price: $3.34 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 13 |
716-0231 |
E-RING Price: $3.50 |
| 14 |
717-04960 |
STEERING GEAR 14T Price: $11.71 |
| 15 |
726-0201 |
PUSH NUT Price: $6.01 |
| 16 |
726-05566 |
END CAP Price: $1.82 |
| 17 |
727-05836A |
TILT STEERING CYLINDER This part replaces 727-05836. Price: $91.15 |
| 18 |
731-05791 |
SNAP SPACER Price: $4.90 |
| 19 |
731-27026 |
STEERING COLUMN COVER (BACK) Price: $14.69 |
| 20 |
731-27027 |
STEERING COLUMN COVER (FRONT) Price: $14.69 |
| 21 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 22 |
736-0264 |
FLAT WASHER Price: $5.99 |
| 23 |
736-3092 |
FLAT WASHER Price: $3.68 |
| 25 |
738-04185 |
SHOULDER SCREW Price: $7.45 |
| 26 |
738-05090 |
SHOULDER SCREW M6-1 .368 X.115 Price: $2.77 |
| 28 |
741-0685A |
FLANGE BEARING .631 ID Price: $3.38 |
| 29 |
741-07140 |
FLANGE BEARING Price: $3.66 |
| 30 |
948-0227A |
HEX FLANGE BEARING Price: $7.61 |
