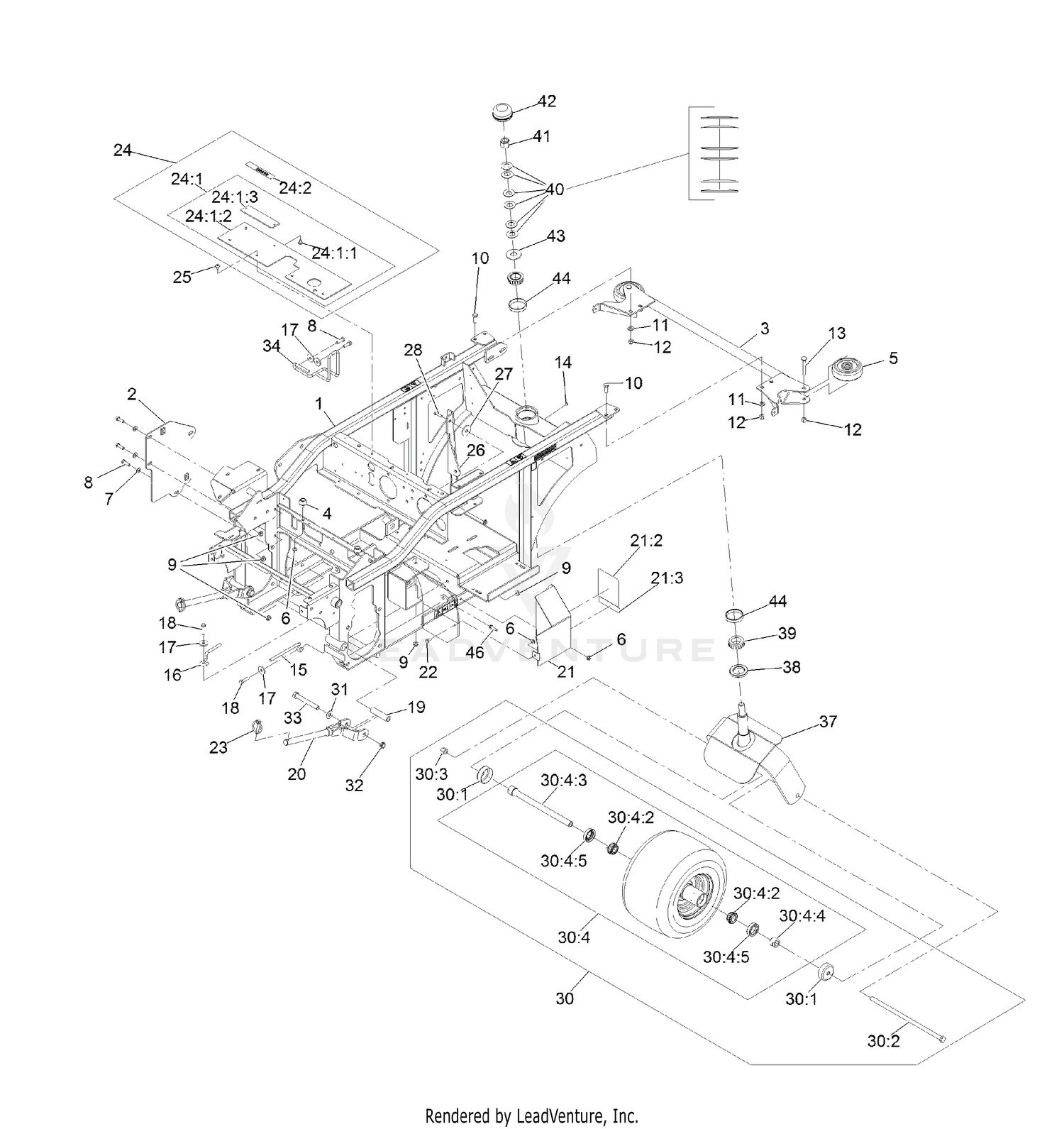

Main Frame Assembly
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 116-7482 | FRAME ASM Price: $2,300.99 |
| 2 | 116-7396-03 | PLATE-SUPPORT Price: $40.99 |
| 3 | 109-0925-03 | BUMPER-REAR Price: $275.99 |
| 4 | 109-2365 | BUMPER-RUBBER Price: $4.89 |
| 5 | 103-5408 | ROLLER-BUMPER Price: $21.99 |
| 6 | 32128-33 | NUT-HF Price: $0.69 |
| 7 | 3256-23 | WASHER-PLAIN Price: $1.99 |
| 8 | 322-5 | SCREW-HH Price: $0.49 |
| 9 | 32128-20 | NUT-HF Price: $0.99 |
| 10 | 323-6 | SCREW-HH Price: $2.29 |
| 11 | 3256-24 | WASHER-FLAT Price: $0.59 |
| 12 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 13 | 3231-31 | SCREW-CARR Price: $6.59 |
| 14 | 1-811010 | PLUG Price: $4.89 |
| 15 | 103-8333 | GUIDE-BELT Price: $10.99 |
| 16 | 103-8349 | GUIDE-BELT Price: $9.99 |
| 17 | 1-613235 | WASHER Price: $1.49 |
| 18 | 322-6 | SCREW-HH Price: $3.79 |
| 19 | 1-633060 | SPACER-WHEEL, SHORT Price: $13.99 |
| 20 | 103-6596-03 | ROD-PUSH Price: $116.99 |
| 21 | 130-2879 | DRIVE SHIELD ASM Price: $82.99 |
| 22 | 321-3 | SCREW-HH Price: $1.19 |
| 23 | 103-4155 | PIN-LYNCH Price: $5.89 |
| 24 | 103-9476 | LIFT SHIELD ASM Price: $96.99 |
| 25 | 1-803035 | RIVET-POP Price: $1.19 |
| 26 | 109-5874-03 | BRACE-PTO Price: $46.99 |
| 27 | 1-213069 | WASHER Price: $2.29 |
| 28 | 321-6 | SCREW-HH Price: $0.49 |
| 30 | 103-9494 | REAR CASTER WHEEL ASM Price: $462.99 |
| 31 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 32 | 3296-45 | NUT-HEX Price: $3.79 |
| 33 | 325-17 | SCREW-HH Price: $5.69 |
| 34 | 135-5784 | WLD-BELT GUIDE Price: $39.99 |
| 37 | 103-3351-03 | FORK-REAR CASTER Price: $392.99 |
| 38 | 103-9027 | SEAL-GREASE Price: $13.99 |
| 39 | 103-9028 | BEARING-ROLLER, CONE TAPE Price: $28.99 |
| 40 | 1-633508 | WASHER-BELLVILLE Price: $3.19 |
| 41 | 3296-51 | NUT-LOCK, NI Price: $5.99 |
| 42 | 126-9882 | CAP-GREASE Price: $7.59 |
| 43 | 3256-8 | WASHER-FLAT Price: $3.49 |
| 44 | 103-9029 | CUP-TAPERED, ROLLER BEARI Price: $9.99 |
