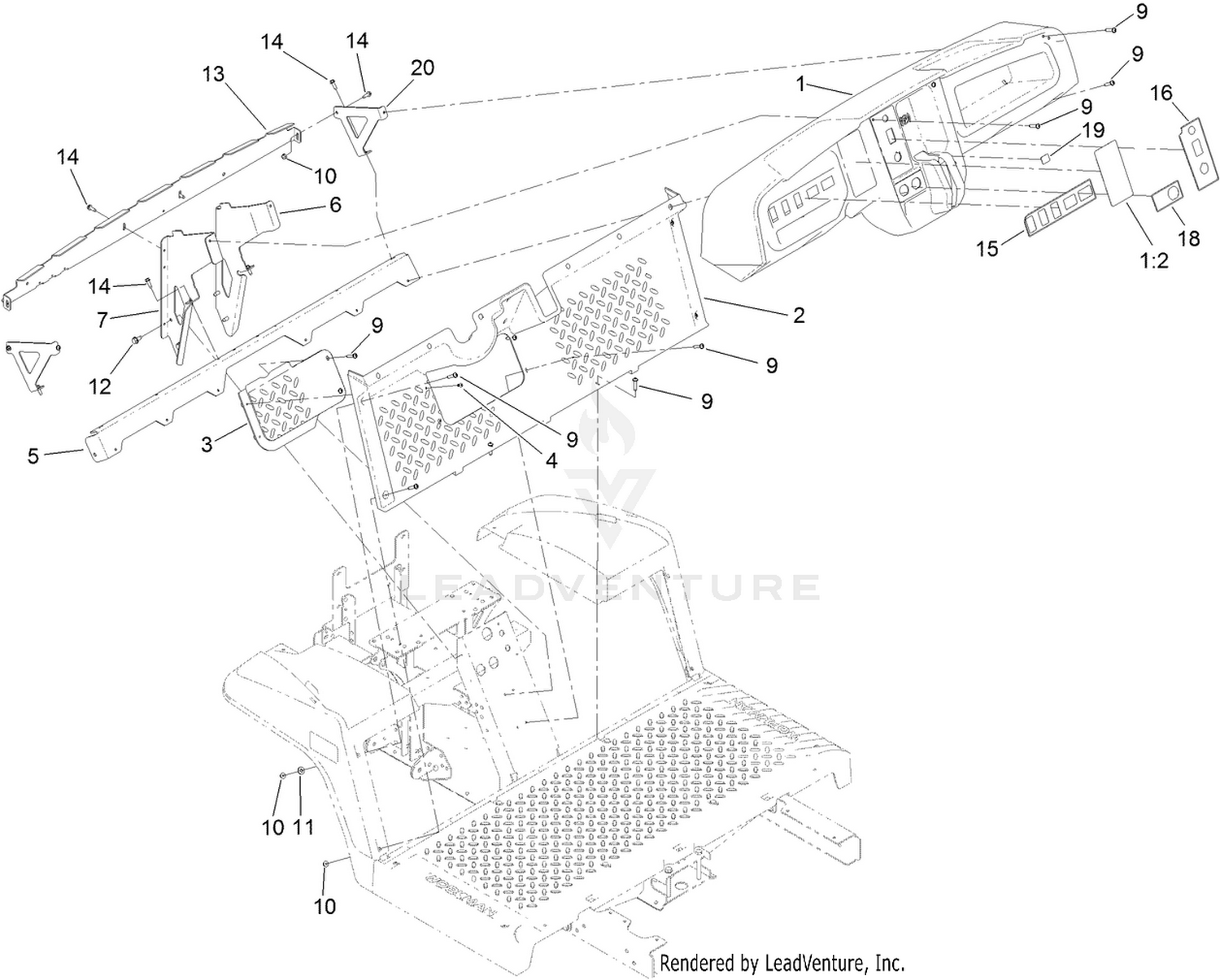

| Ref | Part Number | Description |
|---|
| 1 |
131-8593 |
DASH Price: $343.91 |
| 2 |
147-8212 |
FOOTBOARD This part replaces 127-7846. Price: $110.19 |
| 3 |
127-7847 |
COVER-FOOTBOARD Price: $26.95 |
| 4 |
107-7461 |
SCREW-PLASTITE Price: $0.47 |
| 5 |
127-7831-03 |
ANGLE Price: $66.58 |
| 6 |
131-8336-03 |
BRACKET-DASH, RH Price: $31.08 |
| 7 |
131-8335-03 |
BRACKET-DASH, LH Price: $37.95 |
| 9 |
132-6777 |
SCREW-TTH Price: $0.95 |
| 10 |
104-7201 |
NUT-HF Price: $0.69 |
| 11 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 12 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 13 |
131-8568-03 |
REINFORCEMENT-DASH Price: $79.02 |
| 14 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 15 |
138-3525 |
DECAL-DASHBOARD Price: $13.41 |
| 16 |
131-8412 |
DECAL-CONTROL PANEL, ELECTRIC Price: $23.72 |
| 18 |
131-8493 |
DECAL-USB Price: $5.90 |
| 19 |
131-8506 |
DECAL-STATUS, MACHINE Price: $7.70 |
