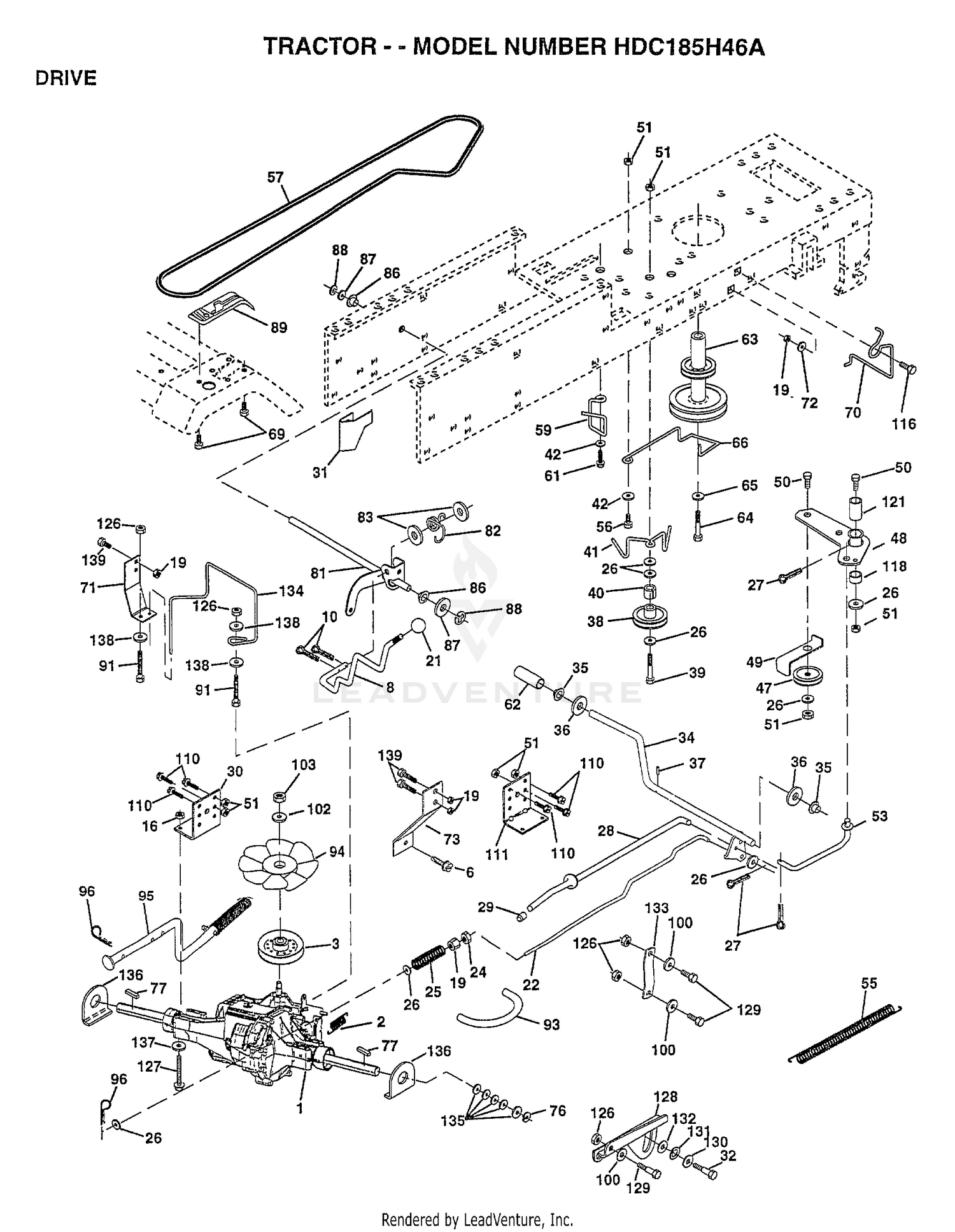

| Ref | Part Number | Description |
|---|
| 2 |
142431 |
SPRING RET BRAKE Price: Call Us |
| 3 |
143995 |
PULLEY.TRANSAXLE Price: Call Us |
| 6 |
17490512 |
SCREW Price: Call Us |
| 8 |
141002 |
ROD SHIFT FEND YT Price: Call Us |
| 10 |
112-8417 |
GEARCASE ASM This part replaces 100-9161. Price: $1,717.33 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 16 |
73800500 |
NUT Price: Call Us |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
107-0108 |
PLUG Price: $2.84 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 22 |
158274 |
BRAKE.ROD.HYDRO. Price: Call Us |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
107-0104 |
O-RING Price: $1.31 |
| 30 |
123780X |
BRKT TRANS LH Price: Call Us |
| 31 |
123791X |
KEEPER BELT LH Price: Call Us |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
107-0105 |
O-RING Price: $1.40 |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
107-0106 |
O-RING Price: $1.48 |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
158306 |
SUB= 137675 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 60 |
98-7550 |
PIN-SPRING, START Price: $7.65 |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 69 |
142432 |
SCREW HEXWSH H-L Price: Call Us |
| 70 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 71 |
158283 |
STRAP.TORQUE.LH.HYDRO Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 73 |
158282 |
STRAP.TORQUE.RH.HYDRO Price: Call Us |
| 76 |
12000053 |
E RING HYT Price: Call Us |
| 77 |
9396E |
SQ KEY STD Price: Call Us |
| 80 |
98-7552 |
PACKING-CASE, GEAR Price: $44.07 |
| 81 |
158281 |
SHAFT ASM. CROSS HYDRO 20" TIRES Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
151146 |
SUB= 164892 Price: Call Us |
| 90 |
98-7553 |
BOLT Price: $0.73 |
| 91 |
74780536 |
NLA Price: Call Us |
| 95 |
158508 |
CONTROL.ASM.BYPAS Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 100 |
19111216 |
WASHER M Price: Call Us |
| 100 |
99-8336 |
BOLT Price: $3.41 |
| 102 |
141322 |
WASHER BELLEVILLE Price: Call Us |
| 103 |
73940800 |
SUB= 73360800 Price: Call Us |
| 110 |
74760612 |
SUB= 74780612 Price: Call Us |
| 110 |
98-7555 |
BOLT Price: $4.93 |
| 111 |
123776X |
BRKT TRANS RH Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 118 |
154774 |
SPACER-BELLCRANK Price: Call Us |
| 120 |
98-7556 |
BOLT Price: $2.07 |
| 121 |
154419 |
NYLINER-CLUTCHING Price: Call Us |
| 126 |
1685H |
SUB= 68478 Price: Call Us |
| 127 |
74780548 |
BOLT FIN HEX 5/16 Price: Call Us |
| 128 |
158284 |
BRKT NEUTRAL ADJ Price: Call Us |
| 130 |
19111610 |
WASHER Price: Call Us |
| 130 |
98-7557 |
BOLT Price: $3.62 |
| 131 |
10040800 |
LOCKWASHER Price: Call Us |
| 132 |
19171512 |
WASHER Price: Call Us |
| 133 |
158279 |
SUB= 159697 Price: Call Us |
| 135 |
123800X |
WASHER Price: Call Us |
| 136 |
158531 |
WASHER AXLE HYDRO Price: Call Us |
| 137 |
19111212 |
WASHER Price: Call Us |
| 138 |
19112016 |
WASHER Price: Call Us |
| 139 |
74780612 |
BOLT Price: Call Us |
| 140 |
98-7558 |
BOLT Price: $1.60 |
| 150 |
105-2893 |
WASHER-SPRING Price: $0.48 |
| 160 |
98-7536 |
WASHER-PLAIN Price: $0.28 |
| 190 |
98-7563 |
SPRING Price: $2.74 |
| 200 |
98-7564 |
SEAT-VALVE Price: $9.15 |
| 210 |
98-7565 |
BALL Price: $0.33 |
| 220 |
98-7566 |
FLANGE-RETURN, WATER Price: $59.56 |
| 230 |
115-8521 |
GASKET-FLANGE, RETURN This part replaces 98-7567. Price: $2.63 |
| 240 |
98-7568 |
BOLT Price: $0.84 |
| 250 |
98-7569 |
COVER Price: $6.40 |
| 260 |
98-7570 |
GASKET-METER, HOUR Price: $12.56 |
| 270 |
98-7571 |
STUD Price: $2.00 |
| 280 |
98-7572 |
NUT Price: $0.32 |
| 290 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 300 |
100-9162 |
FLANGE-FILTER, OIL Price: $27.60 |
| 310 |
100-9163 |
GASKET Price: $3.22 |
| 320 |
98-7571 |
STUD Price: $2.00 |
| 330 |
100-9164 |
STUD Price: $1.45 |
| 340 |
100-9165 |
COLLAR Price: $6.97 |
| 350 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 360 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 370 |
98-7572 |
NUT Price: $0.32 |
| 380 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-7429. Price: $7.25 |
