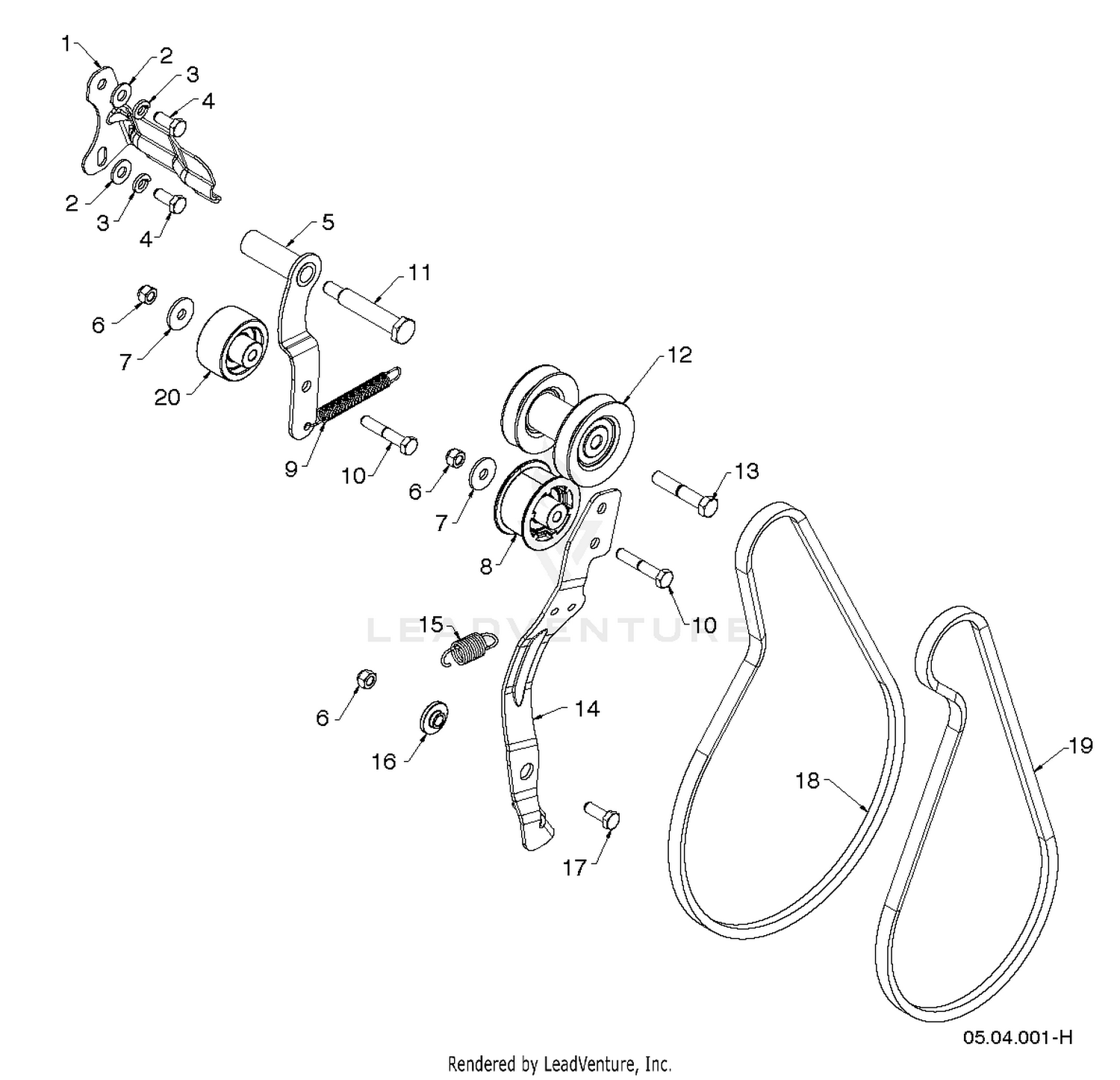

| Ref | Part Number | Description |
|---|
| 1 |
588492802 |
BELT KEEPER BRACKET Price: $3.99 |
| 2 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 3 |
810040500 |
LOCKWASHER Price: $2.99 |
| 4 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $1.99 |
| 5 |
581338203 |
ARM IDLER DRIVE WELDMENT_HOT Price: $7.99 |
| 6 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 7 |
532059289 |
STEEL WASHER Price: $2.99 |
| 8 |
581141401 |
PULLEY,IDLER,2.00 W SPA Price: $7.99 |
| 9 |
580753001 |
SPRING RETURN IDLER ARM Price: $1.99 |
| 10 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $2.99 |
| 11 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $1.99 |
| 12 |
587893703 |
PULLEY.ASM.IMPELLER/DRIVE Price: $17.99 |
| 13 |
532179617 |
BOLT.BLADE Price: $3.99 |
| 14 |
580831106 |
ARM.IDLER.AUTO-PH.676 This part replaces 580831104. Price: $4.99 |
| 15 |
587031201 |
SPRING RETURN, IDLER ARM, IMPE Price: $1.99 |
| 16 |
587343701 |
BUSHING.BRAKE.ARM Price: $1.99 |
| 17 |
874760514 |
BOLT Price: $3.99 |
| 18 |
584216102 |
BELT.DRIVE.SNOW.DUAL Price: $11.99 |
| 19 |
501818201 |
LOW CRANK IMPELLER BELT This part replaces 581832401. Price: $12.99 |
