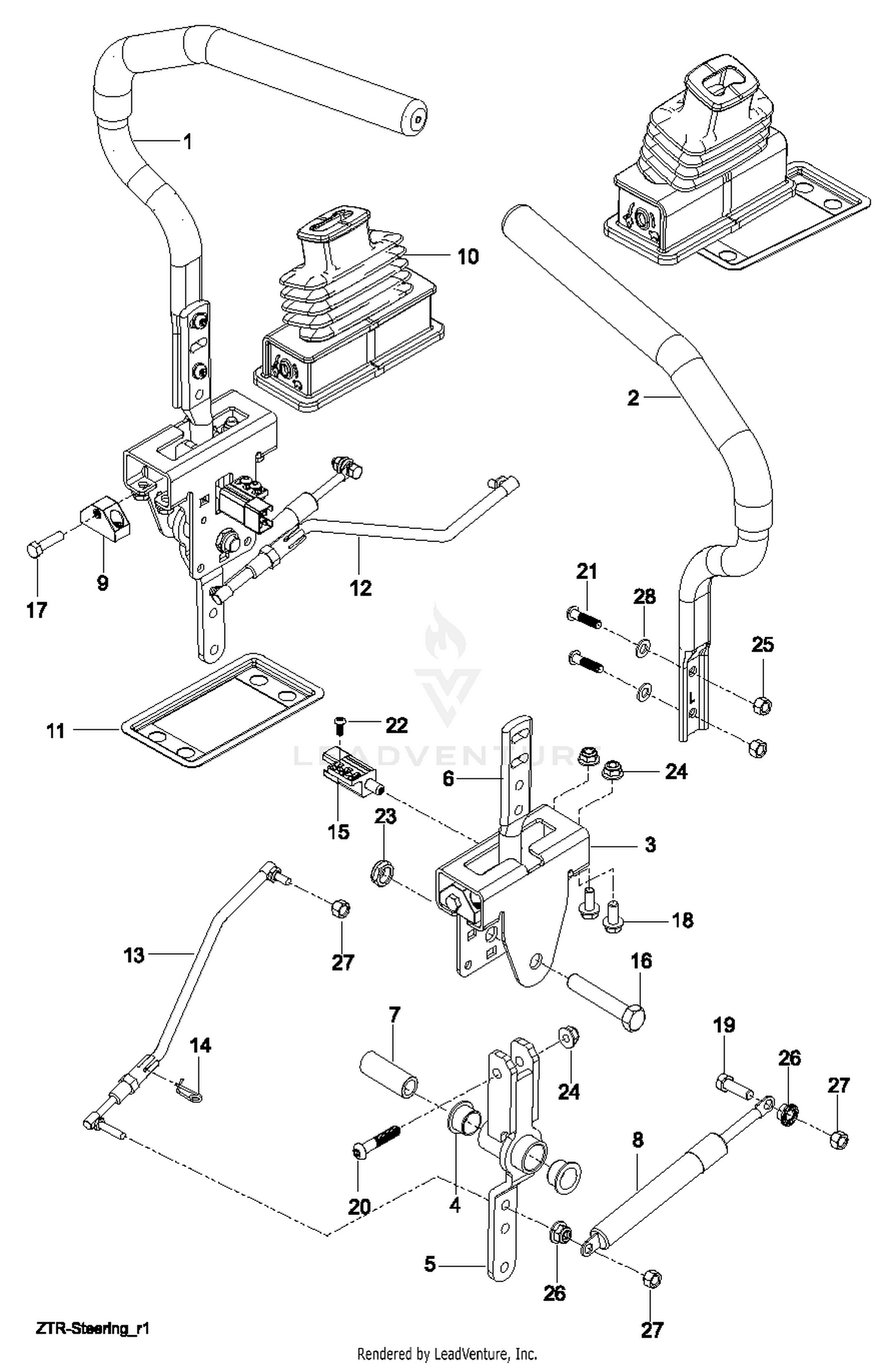

| Ref | Part Number | Description |
|---|
| 1 |
598851703 |
TUBE RZ CONTROL LEVER RIGHT MS This part replaces 590090803. Price: $44.99 |
| 2 |
598851704 |
TUBE RZ CONTROL LEVER LEFT MS This part replaces 590090804. Price: $44.99 |
| 3 |
585124705 |
BRACKET.CONTROLS.ZTR.X431 Price: $14.99 |
| 4 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 5 |
576140301 |
LEVER CONTROL PIVOT Price: $19.99 |
| 6 |
587601704 |
Controls This part replaces 587601702. Price: $11.99 |
| 7 |
584927201 |
SPACER.PIVOT.CONTROL Price: $4.99 |
| 8 |
539102720 |
DAMPENER Price: $39.99 |
| 9 |
581437502 |
Blocks This part replaces 581437501. Price: $5.99 |
| 10 |
105-3735 |
CONTROL PLATE ASM Price: $167.82 |
| 10 |
585831601 |
BOOT.STEERING.LEVER Price: $19.99 |
| 11 |
585488202 |
CONTROL.BOOT.FLANGE.X431 Price: $7.99 |
| 12 |
588604902 |
Controls This part replaces 588604901. Price: $22.99 |
| 13 |
588605002 |
Rods This part replaces 588605001. Price: $19.99 |
| 15 |
587601501 |
SWITCH.INTLK.RZ.RFRSH.BUTTON Price: $11.99 |
| 16 |
596434301 |
Bolts This part replaces 874780844. Price: $2.99 |
| 17 |
585986101 |
SCREW.SHAKEPROOF.1.25.BLACK Price: $2.99 |
| 18 |
592858702 |
Bolts This part replaces 874490512. Price: $3.99 |
| 19 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 20 |
587885301 |
SCREW.CAP.SOCKET.6PT.5/16-18 Price: $2.99 |
| 20 |
98-9662 |
LEVER-CONTROL, SPEED Price: $72.44 |
| 21 |
585985901 |
BUTTONHEAD.5/16-18X1.125.BLACK Price: $2.99 |
| 22 |
586936001 |
SCREW.BUTTONHD.10-24X1/2.(2 2) Price: $2.99 |
| 23 |
539108010 |
NUT 1/2-13 HEX JM NYL Price: $2.99 |
| 24 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 25 |
596583702 |
Nuts This part replaces 585986001. Price: $2.99 |
| 26 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 27 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 28 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 30 |
98-9572 |
LEVER-CONTROL, SPEED Price: $47.15 |
| 40 |
105-3788 |
O-RING Price: $2.90 |
| 50 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 60 |
98-9594 |
WASHER-PLAIN Price: $2.49 |
| 70 |
98-9589 |
NUT Price: $1.46 |
| 80 |
98-9658 |
GOVERNOR LEVER ASM Price: $34.84 |
| 90 |
98-9663 |
LEVER-STOP, ENGINE Price: $13.34 |
| 100 |
98-7601 |
SEAL-OIL Price: $7.88 |
| 110 |
98-9472 |
SPRING-RETURN Price: $8.91 |
| 120 |
98-9664 |
SHAFT-LEVER, STOP Price: $33.92 |
| 130 |
98-9637 |
GASKET Price: $3.98 |
| 140 |
98-7692 |
BOLT Price: $0.92 |
| 150 |
105-3710 |
STUD Price: $1.16 |
| 160 |
98-7572 |
NUT Price: $0.32 |
| 180 |
99-8348 |
BOLT Price: $0.24 |
| 190 |
98-7654 |
GASKET Price: $8.84 |
| 200 |
117-7565 |
BOLT-ADJUSTING Price: $2.66 |
| 210 |
117-7566 |
BOLT-ADJUSTING Price: $4.96 |
