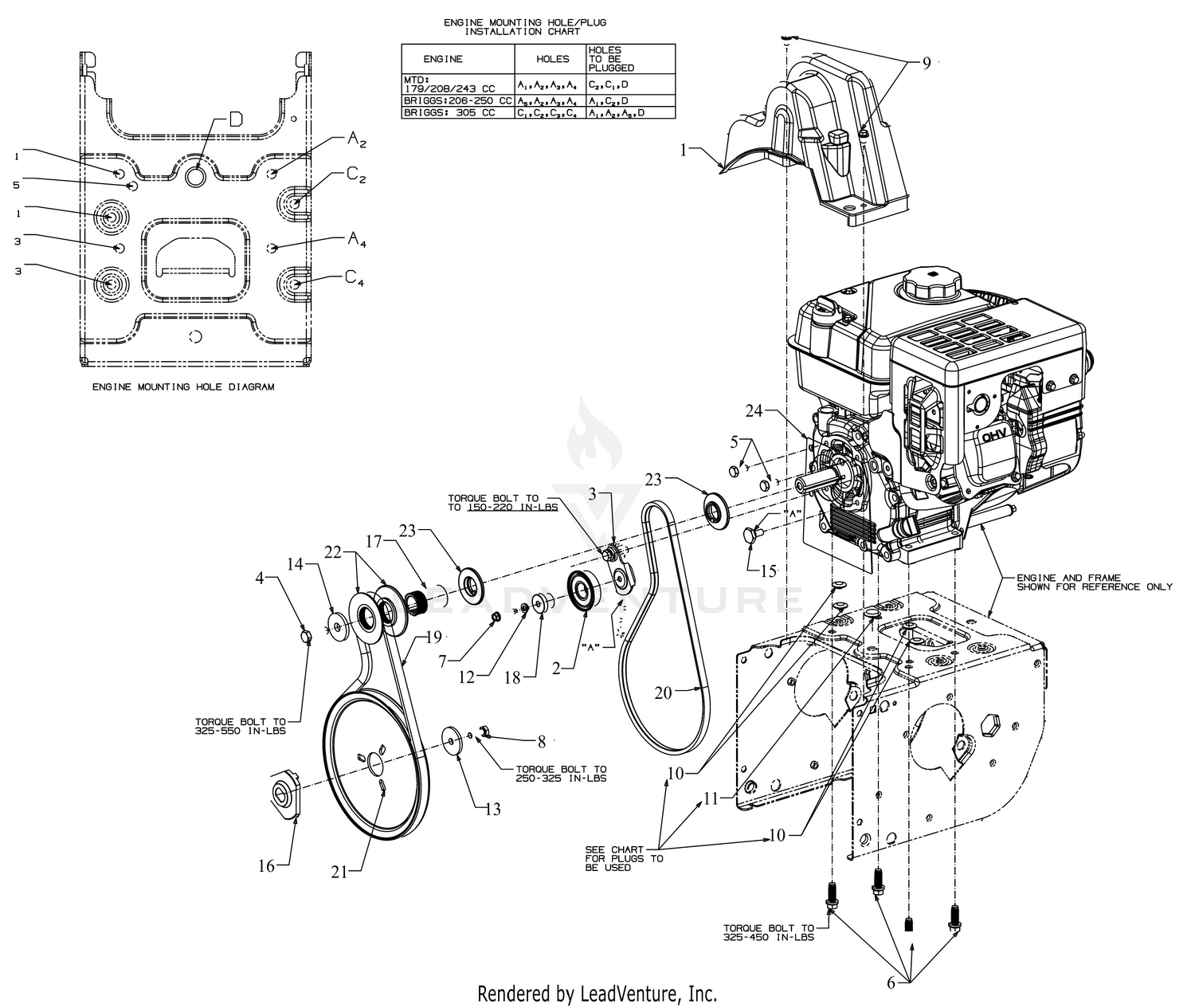

| Ref | Part Number | Description |
|---|
| 1 |
753-09064 |
BELT COVER SERVICE KIT (631-05322) This part replaces 631-05322. Price: $23.85 |
| 2 |
684-04169 |
IDLER PULLEY ASSEMBLY Price: $29.87 |
| 3 |
710-0672 |
SCREW 5/16-24 x 1.25 GR5 Price: $3.85 |
| 3 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 3 |
732-04308C |
TORSION SPRING Price: $4.42 |
| 3 |
748-04112B |
SHOULDER SPACER Price: $3.60 |
| 3 |
750-04477A |
IDLER BRACKET SPACER .340X.750X.330 Price: $4.53 |
| 3 |
790-00208D |
IDLER BRACKET Price: $7.85 |
| 3 |
936-0119 |
LOCK WASHER 5/16 Price: $4.29 |
| 4 |
710-0191 |
SCREW 3/8-24X1.25 Price: $4.02 |
| 5 |
710-0627 |
SCREW 5/16-24 x .750 GR5 Price: $3.68 |
| 6 |
710-0654A |
SCREW 3/8-16 x 1 Price: $3.75 |
| 7 |
710-0809 |
SCREW 1/4-20 x 1.25 Price: $6.37 |
| 8 |
710-1245B |
SCREW 5/16-24 x .875 GR5 Price: $7.21 |
| 9 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 10 |
735-04099 |
PLUG-3/8 DIA ID x 3/32 Price: $5.15 |
| 11 |
735-04100 |
PLUG-1/2 ID x 3/32 Price: $5.25 |
| 12 |
936-0329 |
LOCK WASHER Price: $3.90 |
| 13 |
736-0505 |
FLAT WASHER Price: $5.65 |
| 14 |
736-3082A |
FLAT WASHER .45 x 1.5 x .172 HT Price: $9.09 |
| 15 |
738-04439 |
SHOULDER SCREW Price: $3.49 |
| 16 |
748-04053A |
ADAPTER PULLEY .75 DIA W/DD Price: $19.41 |
| 17 |
750-04303 |
PULLEY SPACER Price: $15.09 |
| 18 |
750-04571 |
SHOULDER SPACER Price: $6.01 |
| 19 |
954-04050A |
V-BELT .500 x 35. Price: $25.43 |
| 20 |
954-04260 |
V-BELT 3L x 34.18 Price: $26.49 |
| 21 |
756-04109 |
AUGER PULLEY Price: $47.55 |
| 22 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 23 |
756-04252 |
HALF PULLEY-3/8 V x 1.7160 Price: $5.62 |
