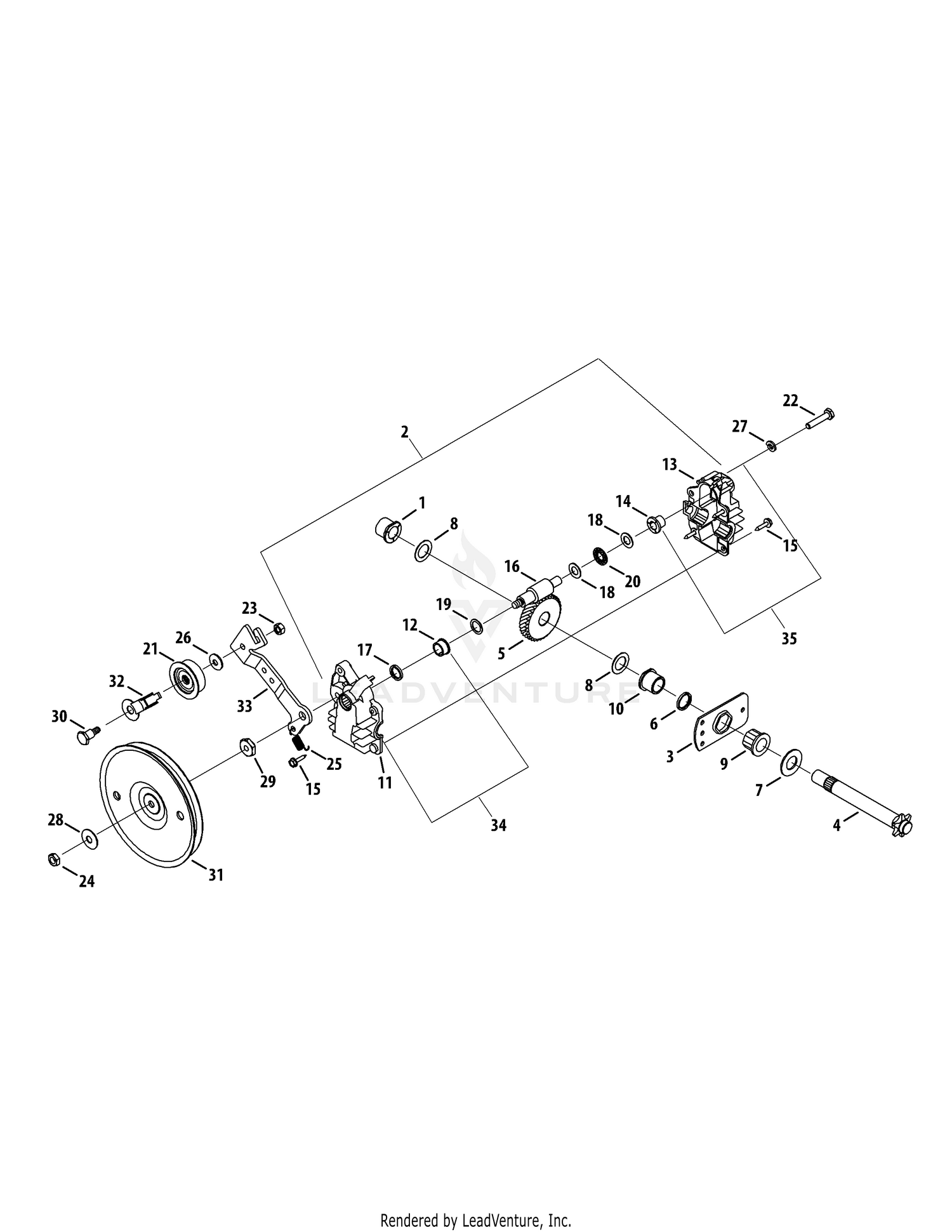

| Ref | Part Number | Description |
|---|
| 1 |
941-0415 |
Flange Bearing.566 ID Price: $9.18 |
| 2 |
918-0255 |
TRANSMISSION Not Available Price: |
| 3 |
16500A-0637 |
CUP BEARING HEX Not Available Price: |
| 4 |
911-1118 |
SHAFT W/SPRKT. 6TH Not Available Price: |
| 5 |
717-1432 |
HELICAL GEAR 34T Not Available Price: |
| 6 |
721-0213 |
Oil Seal Price: $9.93 |
| 7 |
736-0187 |
Flat Washer, .64 ID x 1.24 OD Price: $4.02 |
| 8 |
936-0336 |
Flat Washer, 5/8 x 1.0 Price: $3.90 |
| 9 |
941-0413 |
Hex Flange Bearing, .631 ID Price: $9.09 |
| 10 |
741-0414 |
Flange Bearing, .629 ID Price: $9.41 |
| 11 |
719-0325 |
LOWER HOUSING Not Available Price: |
| 12 |
748-0373 |
Flange Bearing, .503 ID Price: $3.65 |
| 13 |
719-0324A |
UPPER HOUSING Not Available Price: |
| 14 |
748-0208A |
Flange Bearing, .378 ID Price: $3.93 |
| 15 |
710-0589 |
Hex Washer Screw, #10-16 x.75 Price: $6.01 |
| 16 |
717-1433 |
Pinion Shaft 10T Not Available Price: |
| 17 |
921-0329 |
Oil Seal Price: $8.93 |
| 18 |
736-0314 |
Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01 |
| 19 |
936-0520 |
Flat Washer, .504 ID x.70 OD Price: $5.23 |
| 20 |
741-0479 |
Thrust Bearing, .375 ID x.812 OD Not Available Price: |
| 21 |
741-0556 |
Needle Bearing .375 ID x .375 OD This part replaces 941-0556. Price: $15.85 |
| 21 |
956-0008 |
Idler Pulley Assembly W/ Bearing Price: $18.97 |
| 21 |
956-0558 |
Idler Pulley Only Price: $11.07 |
| 22 |
710-1062 |
Hex Cap Screw, 1/4-20 x 1.25 Price: $5.45 |
| 23 |
712-0138 |
Hex Nut 1/4-28 Thd. This part replaces 912-0138. Price: $5.99 |
| 24 |
912-3045 |
Hex Jam Nut, 5/16-24 LH Thd Not Available Price: |
| 25 |
732-0357A |
Extension Spring 1.12 Lg This part replaces 932-0357A. Price: $3.94 |
| 26 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 27 |
936-0329 |
Lock Washer, 1/4 Price: $3.90 |
| 28 |
736-0425 |
Bell Washer .325 ID x .930 OD This part replaces 936-0425. Price: $3.95 |
| 29 |
738-0440 |
Shoulder Spacer, .375 ID x.165 OD Price: $5.45 |
| 30 |
738-0826 |
Shoulder Bolt 1/4-28 x .375 This part replaces 938-0826. Price: $11.12 |
| 31 |
756-0656 |
Flat Pulley 5.06 Dia Not Available Price: |
| 32 |
782-7569 |
Belt Keeper Price: $6.20 |
| 33 |
682-0054 |
Idler Bracket Price: $22.58 |
| 34 |
618-0132 |
LOWER TRANSMISSION HOUSING Not Available Price: |
