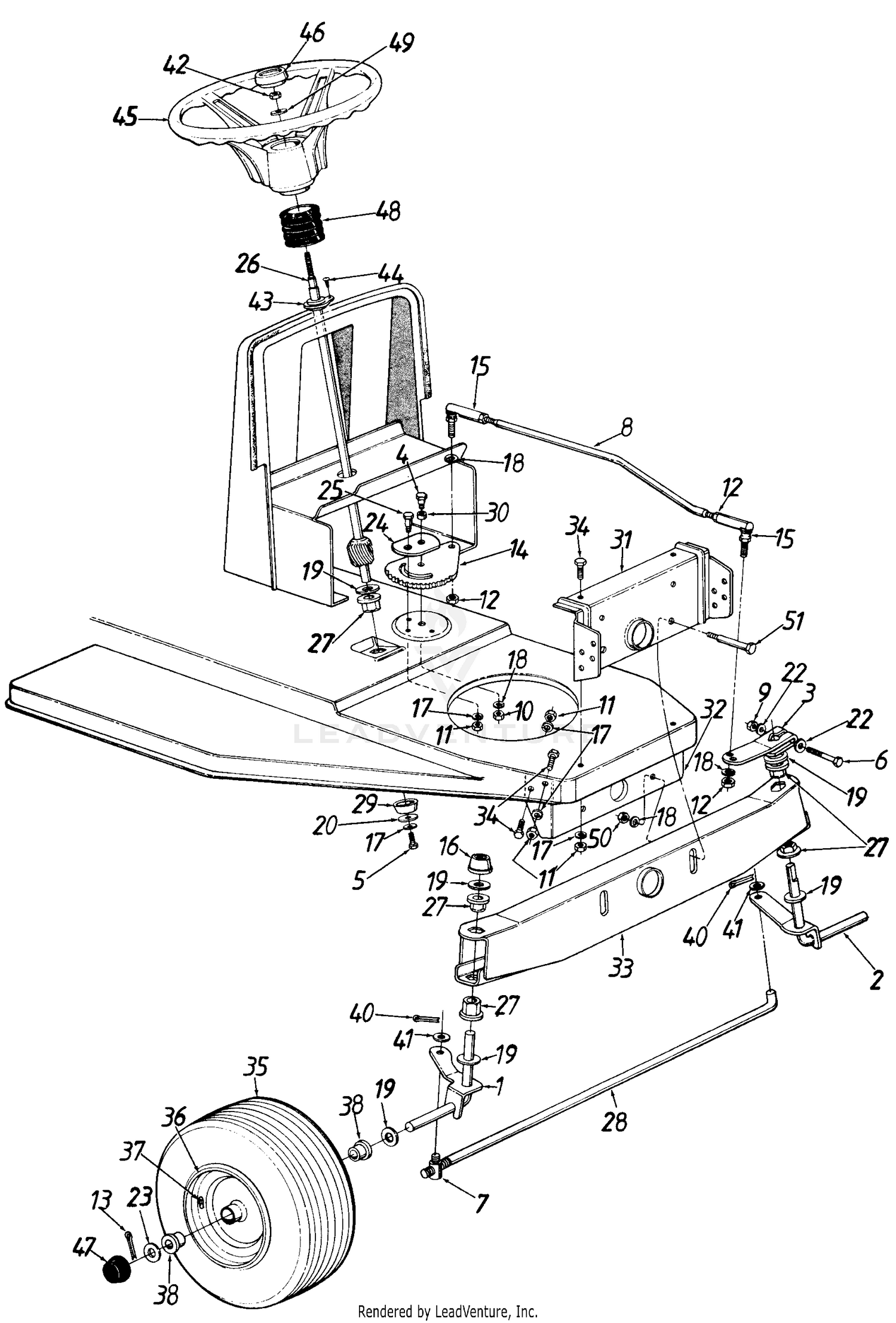

| Ref | Part Number | Description |
|---|
| 1 |
14650A |
Front Axle Ass'y.-R.H. Not Available This part replaces 14650. Price: |
| 2 |
16479P |
AXLE ASSEMBLY (LH)-FR Not Available This part replaces 16479. Price: |
| 3 |
983-0055-0637 |
Steering Arm Front Axle This part replaces 16481. Price: $41.85 |
| 4 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 6 |
710-0772 |
Hex Bolt 5/16-24 x 2" Lg. Price: $3.93 |
| 7 |
911-0198 |
Ferrule This part replaces 711-0198. Price: $12.05 |
| 8 |
711-0809 |
DRAG LINK Not Available Price: |
| 9 |
712-0237 |
Hex L-Nut 5/16-24 Thd. Price: $4.37 |
| 10 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 11 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 12 |
712-0711 |
Hex Jam Nut, 3/8-24 Price: $3.90 |
| 13 |
714-0470 |
Cotter Pin 1/8 Dia. Price: $3.90 |
| 14 |
717-0622C |
Steering Gear Segment Not Available This part replaces 717-0622. Price: |
| 15 |
923-3018 |
Ball Joint, 3/8-24 This part replaces 723-3018. Price: $15.50 |
| 16 |
726-0214 |
Push Cap Price: $9.11 |
| 17 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 18 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 19 |
736-0187 |
Fl-Wash. .64" I.D. x 1.24" Price: $4.02 |
| 20 |
736-0343 |
Fl-Wash. .340" I.D. x 1.25" Price: $3.90 |
| 22 |
936-0271 |
SPRING WASHER .317 X .625 X .020 This part replaces 736-0271. Price: $3.93 |
| 23 |
736-0285 |
Fl-Wash. .635 I.D. x 1.585 Price: $3.89 |
| 24 |
783P08577A |
STABILIZER PLATE This part replaces 17198. Price: $6.48 |
| 25 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 26 |
738-0730 |
Steering Shaft Price: $95.60 |
| 27 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 28 |
747-0558 |
TIE ROD Not Available Price: |
| 29 |
950-0532 |
SPACER Not Available This part replaces 750-0532. Price: |
| 30 |
950-0535 |
Spacer.380" I.D. x .625" O.D. x .227 This part replaces 750-0535. Price: $3.90 |
| 31 |
16657 |
Front Pivot Bar Support Brkt. Price: Call Us |
| 32 |
16658 |
Rear Pivot Bar Support Brkt. Price: Call Us |
| 33 |
17127 |
BAR ASSEMBLY-P Not Available Price: |
| 34 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 35 |
734-1422 |
WHEEL ASSEMBLY W/TIRE -13X6 Not Available Price: |
| 36 |
753-0838-0662 |
WHEEL RIM GREY Not Available This part replaces 734-0997. Price: |
| 37 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 38 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0487. Price: $6.87 |
| 40 |
714-0111 |
Cotter Pin 3/32" Dia. Price: $4.20 |
| 41 |
736-0185 |
Fl-Wash. .406" I.D. x .75" Price: $3.43 |
| 42 |
712-0237 |
Hex L-Nut 5/16-24 Thd. Price: $4.37 |
| 43 |
741-0501 |
STEERING BEARING Not Available Price: |
| 44 |
710-0837 |
Cr-Sunk Scr. #10 x 5/8" Lg. Price: $3.85 |
| 45 |
731-0805 |
STEERING WHEEL Not Available Price: |
| 46 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 47 |
931-0484A |
Hub Cap This part replaces 731-0484. Price: $5.98 |
| 48 |
731-0559B |
STEERING BELLOW Not Available This part replaces 731-0559. Price: |
| 49 |
736-0242 |
Bell-Wash. .345 I.D. x .88 Price: $3.75 |
| 50 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
