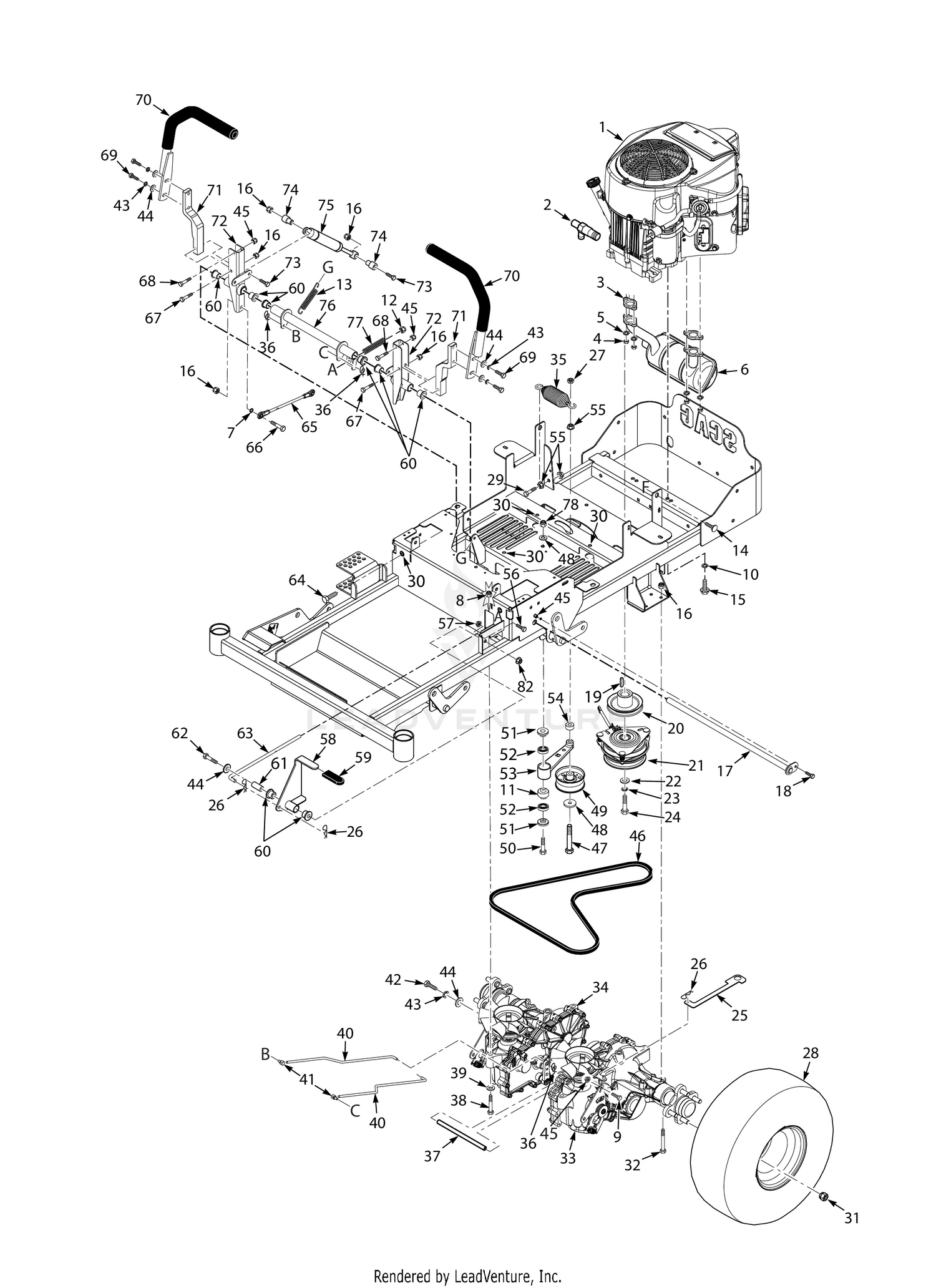

| Ref | Part Number | Description |
|---|
| 1 |
3-7027 |
Handle Bar Price: Call Us |
| 3 |
484210 |
Gasket, Exhaust Price: Call Us |
| 3 |
6-7930 |
Throttle Control Price: Call Us |
| 4 |
04025-04 |
Nut, M8 x 1.25 Hex Special Price: Call Us |
| 4 |
3-5698 |
Clamp Price: Call Us |
| 5 |
04033-01 |
Lockwasher, M8 Spring (Kawasaki) Price: Call Us |
| 5 |
322-6 |
SCREW-HH Price: $0.45 |
| 6 |
3-8590 |
DISCONTINUED Price: Call Us |
| 6 |
485193 |
Muffler, Kawasaki FR/FS600V Price: Call Us |
| 7 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 7 |
3-7032 |
HANDLE GRIP Price: $13.99 |
| 8 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 8 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 9 |
04001-04 |
Bolt, Hex Head, 1/4-20 x 1-1/2" Price: Call Us |
| 9 |
3-8750 |
DISCONTINUED Price: Call Us |
| 10 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 10 |
283-17 |
PIN-CLEVIS Price: $4.89 |
| 11 |
283-16 |
PIN-CLEVIS Price: $2.37 |
| 11 |
431073 |
Spacer, Bearing Price: Call Us |
| 12 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 12 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 13 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 13 |
483600 |
Spring, Deck Latch Price: Call Us |
| 14 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 14 |
3-6918 |
BRAKE CABLE ASM Price: Call Us |
| 15 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 16 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 17 |
452847 |
Shaft Weldment, Control Arm Price: Call Us |
| 18 |
04001-06 |
BOLT, HEX HEAD, 1/4-20 X 5/8 Price: Call Us |
| 19 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 20 |
485956 |
Pulley, 4-1/2" - 1" Bore Price: Call Us |
| 21 |
462715 |
Electric Clutch Assembly Price: Call Us |
| 22 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 23 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 24 |
04102-12 |
Bolt, Hex Head 7/16-20 x 3¼" w/Patch Price: Call Us |
| 25 |
428623 |
LEVER, DUMP VALVE This part replaces 427283. Price: Call Us |
| 26 |
04062-02 |
HAIR PIN, .08 DIAMETER X 1-3/16" Price: Call Us |
| 27 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 29 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 30 |
04132-01 |
Threaded insert, Hex Head (Pressed) Price: Call Us |
| 31 |
04028-02 |
Wheel Nut, 1/2-20 x 13/16 Price: Call Us |
| 32 |
04001-13 |
Bolt, Hex Head, 5/16-18 x 2.75 Zinc. Price: Call Us |
| 33 |
486787 |
Transaxle, LH- ZT-2800 Price: Call Us |
| 34 |
486788 |
Transaxle, RH- ZT2800 Price: Call Us |
| 35 |
483112 |
Spring, Transmission Drive Price: Call Us |
| 36 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 37 |
431039 |
Spacer, Axle Price: Call Us |
| 38 |
04001-39 |
BOLT, HEX HEAD, 5/16-18 X 2-1/4 Price: Call Us |
| 39 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 40 |
44225 |
Rod, Brake Price: Call Us |
| 41 |
43876 |
Joint, Swivel Price: Call Us |
| 42 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 43 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 44 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 45 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 46 |
485808 |
Belt, Transmission SZL-36 Price: Call Us |
| 47 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 48 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 49 |
486045 |
Pulley, 3-1/2" Dia. Price: Call Us |
| 50 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 51 |
431049 |
Spacer, Controls Price: Call Us |
| 52 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 53 |
463017 |
Trans. Idler Arm Assy. (Includes 24, 79) Price: Call Us |
| 54 |
43720 |
Spacer, Idler Pulley - SFZ61 Price: Call Us |
| 55 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 56 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 57 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 58 |
463186 |
Brake Lever Assembly (INCL 59,60) Price: Call Us |
| 59 |
482102 |
Grip, Brake Handle Price: Call Us |
| 60 |
483453-05 |
Bearing Price: Call Us |
| 61 |
43969 |
Pivot, Brake Lever Price: Call Us |
| 62 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 63 |
44231 |
Rod, Upper Brake Linkage Price: Call Us |
| 64 |
04107-08 |
Bolt, Hex Head 3/8-16 x 3.0 Price: Call Us |
| 65 |
485794 |
Linkage Assembly, Steering Price: Call Us |
| 66 |
04001-10 |
Bolt, 5/16 - 18 x 1 - 1/4" Hex Head Price: Call Us |
| 67 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 68 |
04001-02 |
Bolt, Hex Head, 1/4-20 x 1-1/4" Price: Call Us |
| 69 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 70 |
463163 |
Handlebar W/ Grip, SZL-36 Price: Call Us |
| 71 |
485835 |
Lever, Control Arm Price: Call Us |
| 73 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 74 |
43833 |
Spacer, Pump Dampener Price: Call Us |
| 75 |
484193 |
Damper, Steering Price: Call Us |
| 76 |
463023 |
Bellcrank Assembly, Brake Price: Call Us |
| 77 |
483538 |
Spring, Brake Price: Call Us |
| 485225 |
Muffler, |
Kawasaki FR651V & FR691V Price: Call Us 485225 |
| 485948 |
WHEEL |
ASSY, 20 X 10-10 Price: Call Us 485948 |
| 485949 |
RIM |
W/ VALVE STEM Price: Call Us 485949 |
| 487151 |
Muffler, |
Briggs & Stratton PXi Price: Call Us 487151 |
