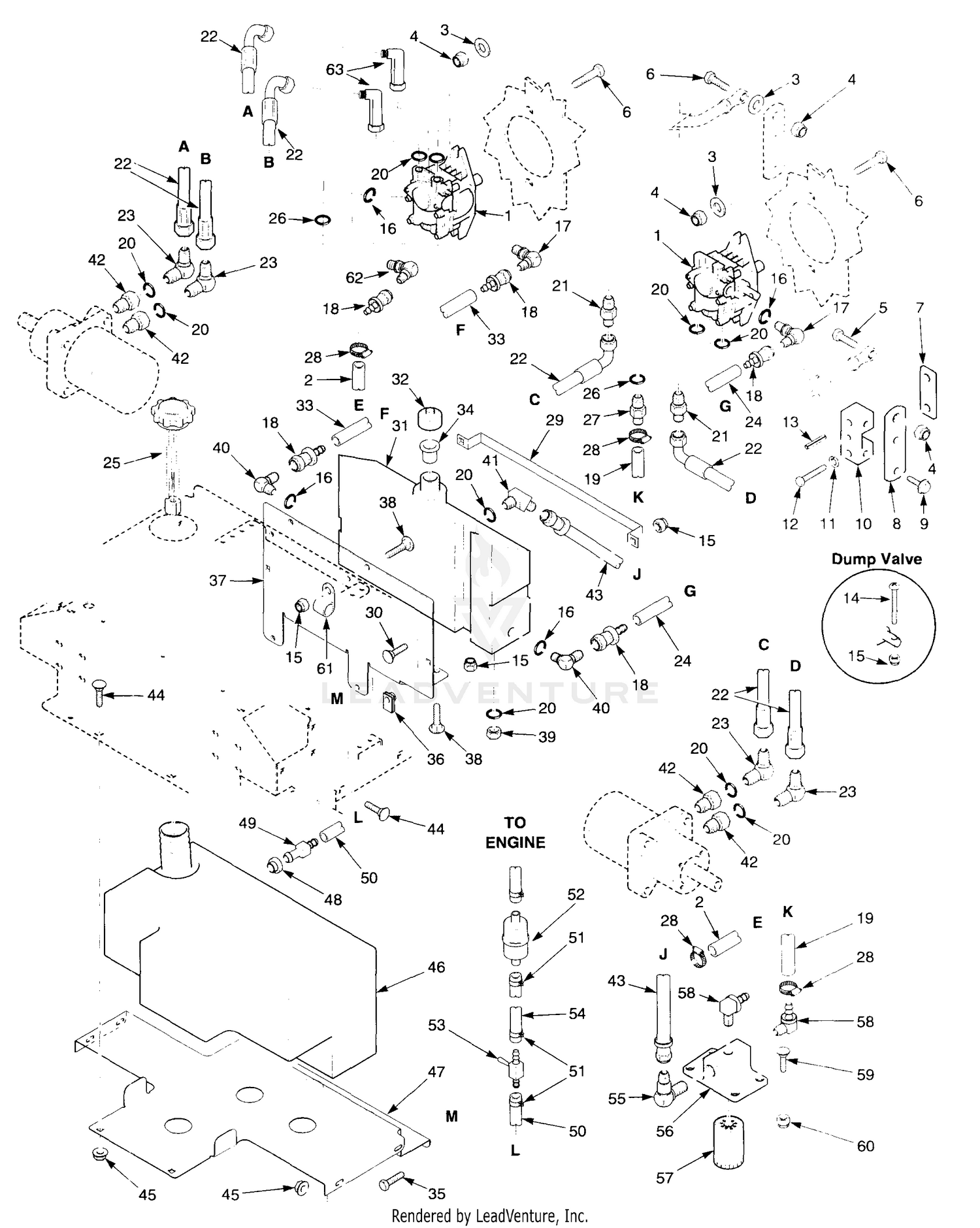

| Ref | Part Number | Description |
|---|
| 1 |
48551 |
Pump, Sunstrand BDP-10L117 Price: Call Us |
| 3 |
04043-04 |
Flatwasher, 3/8" (.391 x .938 x .105) Grade 8 Price: Call Us |
| 4 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 5 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 6 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 7 |
421203 |
Clamp Plate, Pump Control Price: Call Us |
| 8 |
422379 |
Lever, Control Price: Call Us |
| 9 |
04017-05 |
Screw, Hex Serrated Flange 1/4-20 x 3/4" Price: Call Us |
| 10 |
48829 |
Block, Pump Control Price: Call Us |
| 11 |
04030-02 |
Lockwasher, 1/4" Spring Price: Call Us |
| 12 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 13 |
04060-06 |
Roll Pin, Spring 3/16 x 3/4" Price: Call Us |
| 14 |
04010-10 |
Screw, Phillips RD. Head 1/4-20 x 2" Price: Call Us |
| 15 |
04021-08 |
Nut, Hex Elastic Stop 1/4-20 Price: Call Us |
| 16 |
48603-06 |
O-Ring Price: Call Us |
| 17 |
48350-09 |
Elbow, 90 Degree Price: Call Us |
| 18 |
48353-06 |
Coupling Price: Call Us |
| 19 |
48811 |
Hose, 3/8" ID Push Lock Price: Call Us |
| 20 |
48603-02 |
O-Ring Price: Call Us |
| 21 |
48572-04 |
Union, 3/4-16 JIC x 3/4-16 O-Ring Price: Call Us |
| 22 |
484459 |
Hose Assembly, Pump This part replaces 481611. Price: Call Us |
| 23 |
48350-02 |
Elbow, 90 Degree 3/4-16 JIC x 3/4-16 O-Ring Price: Call Us |
| 25 |
481661 |
Cap, Fuel Tank W/Gauge Price: Call Us |
| 26 |
48603-03 |
O-Ring Price: Call Us |
| 27 |
481467-01 |
Connector, 7/16" O-Ring x Hose Barb Price: Call Us |
| 28 |
48136-07 |
Clamp, Hose 1/2" Price: Call Us |
| 29 |
421208 |
Strap, Hydraulic Tank Price: Call Us |
| 30 |
04003-06 |
Bolt, Carriage 1/4-20 x 1" Price: Call Us |
| 31 |
46978 |
Oil Reservoir Assembly Price: Call Us |
| 32 |
481164 |
Cap, Hydraulic Tank Price: Call Us |
| 34 |
481507 |
Insert, Filler Neck Price: Call Us |
| 35 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 36 |
04110-01 |
U-Nut, 1/4-20 Price: Call Us |
| 37 |
422354 |
Support Bracket, Hydraulic Tank Price: Call Us |
| 38 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 39 |
48604-02 |
Plug, 3/4-16 "O" Ring Price: Call Us |
| 40 |
48350-09 |
Elbow, 90 Degree 9/16-18 JIC x 9/16 O-Ring Price: Call Us |
| 41 |
48573-02 |
Elbow, 45 Degree 3/4-16 JIC x 3/4-16 O-Ring Price: Call Us |
| 42 |
48938-02 |
Bushing, 7/8-14 JIC x 3/4-16 O-Ring Price: Call Us |
| 43 |
482088 |
Hose Assembly, (Hydro Tank to Filter Base) This part replaces 48872. Price: Call Us |
| 44 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 45 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 47 |
422353 |
Support Bracket, Fuel Tank Price: Call Us |
| 48 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 49 |
481602 |
Hose Fitting Price: Call Us |
| 51 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 53 |
48568 |
Valve, Shutoff Price: Call Us |
| 55 |
48573-02 |
Elbow, 45 Degree-1/2 NPT x 3/4 J)C Price: Call Us |
| 56 |
48471-02 |
Oil Filter Base Price: Call Us |
| 57 |
48758 |
Oil Filter Price: Call Us |
| 58 |
481301-03 |
Elbow, 90 Degree-1/4 NPT x 3/8 Hose Price: Call Us |
| 59 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 60 |
04021-10 |
Nut, Hex Elastic Stop 5/16-18 Price: Call Us |
| 61 |
48030-09 |
Hose Clamp Price: Call Us |
| 62 |
48350-10 |
Elbow, 90 degree - 9/16 x 7/16 O-ring Price: Call Us |
