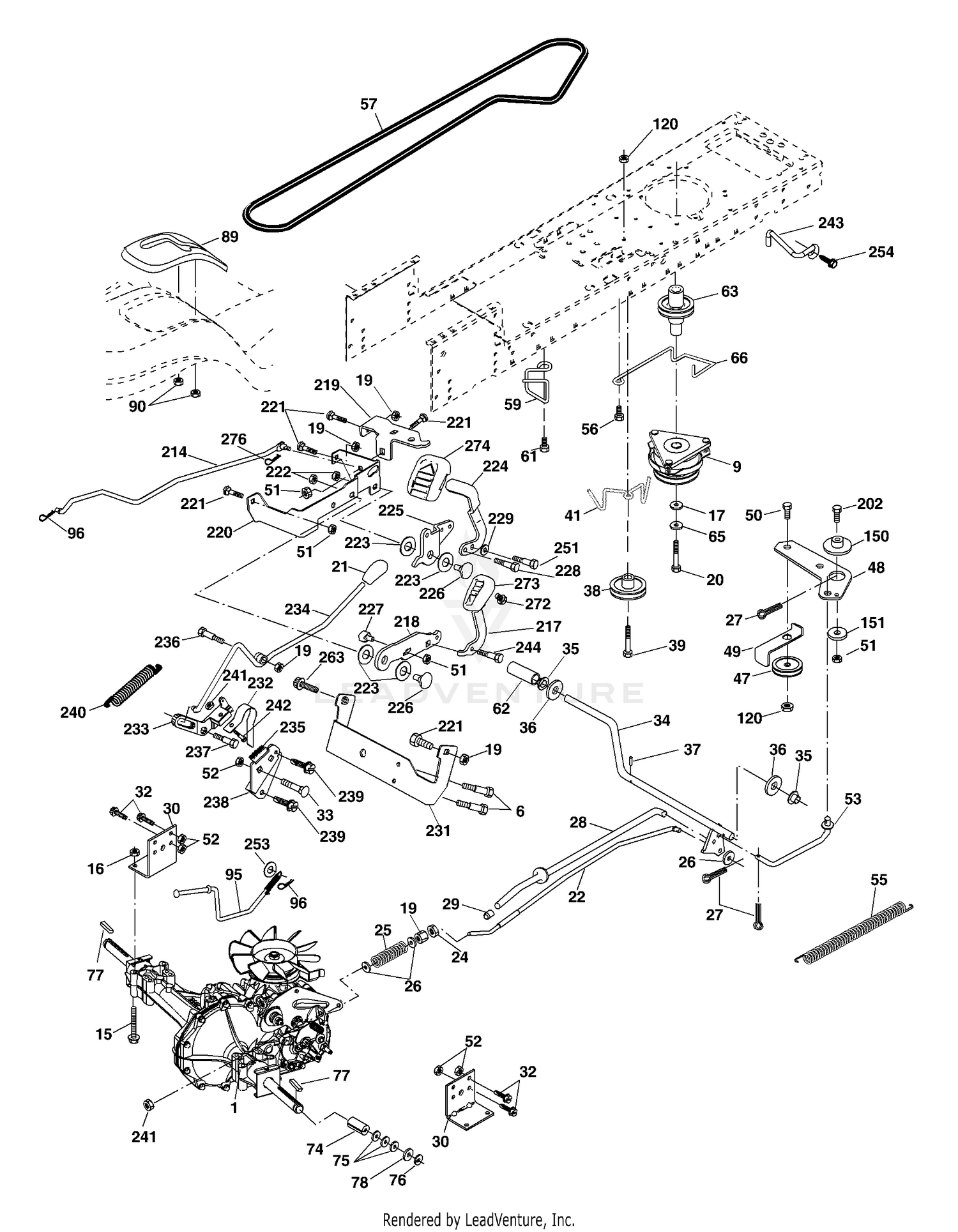

| Ref | Part Number | Description |
|---|
| 1 |
92-5691 |
HOSE-HYD Price: $113.74 |
| 2 |
340-69 |
ELBOW-BULKHEAD, 45 DEG Price: $31.67 |
| 3 |
92-5690 |
REVERSE TUBE ASM Price: $313.01 |
| 4 |
92-5689 |
FORWARD TUBE ASM Price: $333.88 |
| 5 |
92-5693-01 |
BRACKET-BULKHEAD Price: $31.76 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 6 |
92-5692 |
U-BOLT Price: $40.59 |
| 7 |
340-70 |
NUT-LOCK Price: $2.10 |
| 8 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 9 |
111-5088-03 |
JOINT-BALL, STEERING CYLINDER This part replaces 92-4725. Price: $198.95 |
| 9 |
179334 |
Clutch Elec Price: Call Us |
| 10 |
66-5560 |
U-BOLT Price: $12.01 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
92-5696 |
FITTING-ELBOW, 90 DEG Price: $110.05 |
| 15 |
74490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 16 |
73800500 |
Nut Lock Hex W/Ins. 5/16-18 unc Price: Call Us |
| 17 |
126197X |
Washer 1-1/2 OD x 15/32 ID x .250 Price: Call Us |
| 17 |
92-4728 |
TUBE-FRONT Price: $133.35 |
| 18 |
92-5687 |
HOSE ASM Price: $113.74 |
| 19 |
340-88 |
FITTING-STRAIGHT Price: $11.24 |
| 19 |
73800600 |
Nut Lock Hex W/Wsh 3/8-16 unc Price: Call Us |
| 20 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Price: Call Us |
| 20 |
322-3 |
SCREW-HH Price: $0.79 |
| 21 |
175036X505 |
Knob Custom Control Cruise Price: Call Us |
| 21 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 22 |
175896 |
Rod, Brake Price: Call Us |
| 22 |
86-6460-01 |
BRACKET-BLOCK Price: $63.44 |
| 23 |
92-4727 |
TUBE-REAR Price: $133.27 |
| 24 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 24 |
73350600 |
Nut, Hex Jam 3/8-16 unc Price: Call Us |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 26 |
19131316 |
Washer Price: Call Us |
| 26 |
69-9740 |
SWITCH Price: $125.46 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 27 |
92-2982 |
CONTROL BLOCK ASM Price: $2,640.21 |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 28 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 29 |
340-94 |
ADAPTER Price: $36.83 |
| 29 |
71673 |
Cap, Brake, Park Price: Call Us |
| 30 |
169592 |
Bracket, Transaxle Price: Call Us |
| 30 |
3217-6 |
NUT-HEX Price: $1.19 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc x 3/4 Price: Call Us |
| 32 |
99-8741-01 |
BRACKET-SUPPORT, HOSE Price: $32.79 |
| 33 |
2412-107 |
CLAMP-R Price: $2.65 |
| 33 |
72140506 |
Bolt Rdhd Sqnk 5/16-18 unc x 3/4 Price: Call Us |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 38 |
179114 |
Pulley, Composite, Flat Price: Call Us |
| 39 |
72110622 |
Bolt Rdhd 3/8-16 x 2- 3/4 Gr. 5 Price: Call Us |
| 41 |
175556 |
Keeper, Belt Idler Flat Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Groove Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drw Stl Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
72110612 |
Bolt Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
140294 |
V-Belt, Ground Drive Price: Call Us |
| 59 |
169691 |
Keeper, Center Span Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
174607 |
Pulley, Engine Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 69 |
142432 |
Screw Wsh Hi-Lo 1/4-1/2 unc Price: Call Us |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 89 |
188308X428 |
Console, Shift Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wsh-hd 1/4 Zinc Price: Call Us |
| 95 |
180825 |
Rod Bypass Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 116 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 212 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 214 |
174735 |
Link Transaxle Price: Call Us |
| 217 |
179433 |
Pedal Assy, Reverse, with Pad Price: Call Us |
| 218 |
174713 |
Arm Control Pedal Reverse Price: Call Us |
| 219 |
174839 |
Bracket Frest Pdl Ctrl. Hyd Price: Call Us |
| 220 |
174711 |
Bracket Mtg. Pedal Control Price: Call Us |
| 221 |
72140606 |
Bolt Rdhd Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 222 |
73680700 |
Nut Crownlock 7/16-14 unc Price: Call Us |
| 223 |
174840 |
Washer Nylon 11/16 ID x .060 Price: Call Us |
| 224 |
174736 |
Pedal Forward Price: Call Us |
| 225 |
174712 |
Arm Control Pedal Forward Price: Call Us |
| 226 |
174902 |
Bolt Pivot Spacer Price: Call Us |
| 227 |
174710 |
Cam Reverse Pedal LT Price: Call Us |
| 228 |
179032 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 229 |
176451 |
Washer Serrated 5/16 x .75 Price: Call Us |
| 231 |
174573 |
Strap Torque Price: Call Us |
| 232 |
175570 |
Actuator Cruise Disengage Price: Call Us |
| 233 |
174856 |
Pawl Control Cruise Price: Call Us |
| 234 |
174858 |
Lever Control Cruise Price: Call Us |
| 235 |
174857 |
Sector Control Cruise Price: Call Us |
| 236 |
128903 |
Bolt Shoulder 3/8-16 unc 1/44 Price: Call Us |
| 237 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 238 |
175807 |
Arm Mtg. Cruise Sector Price: Call Us |
| 239 |
17490508 |
Screw Thdrol 5/16 x 1/2 Price: Call Us |
| 240 |
175610 |
Spring Return Cruise Control Price: Call Us |
| 241 |
73930400 |
Nut Centerlock 1/4-20 unc Price: Call Us |
| 242 |
74780412 |
Bolt Fin Hex 1/4-20 unc x .75 Price: Call Us |
| 243 |
190736 |
Bracket Anti-Rotation Price: Call Us |
| 244 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 251 |
17060516 |
Screw 5/16-18 x 1 Price: Call Us |
| 253 |
179422 |
Washer .3125 x .615 x 16 Ga. Price: Call Us |
| 254 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 263 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 272 |
17670508 |
Screw, 5/16-18 x 1/2 TT Price: Call Us |
| 273 |
179610 |
Pad, Reverse Pedal Price: Call Us |
