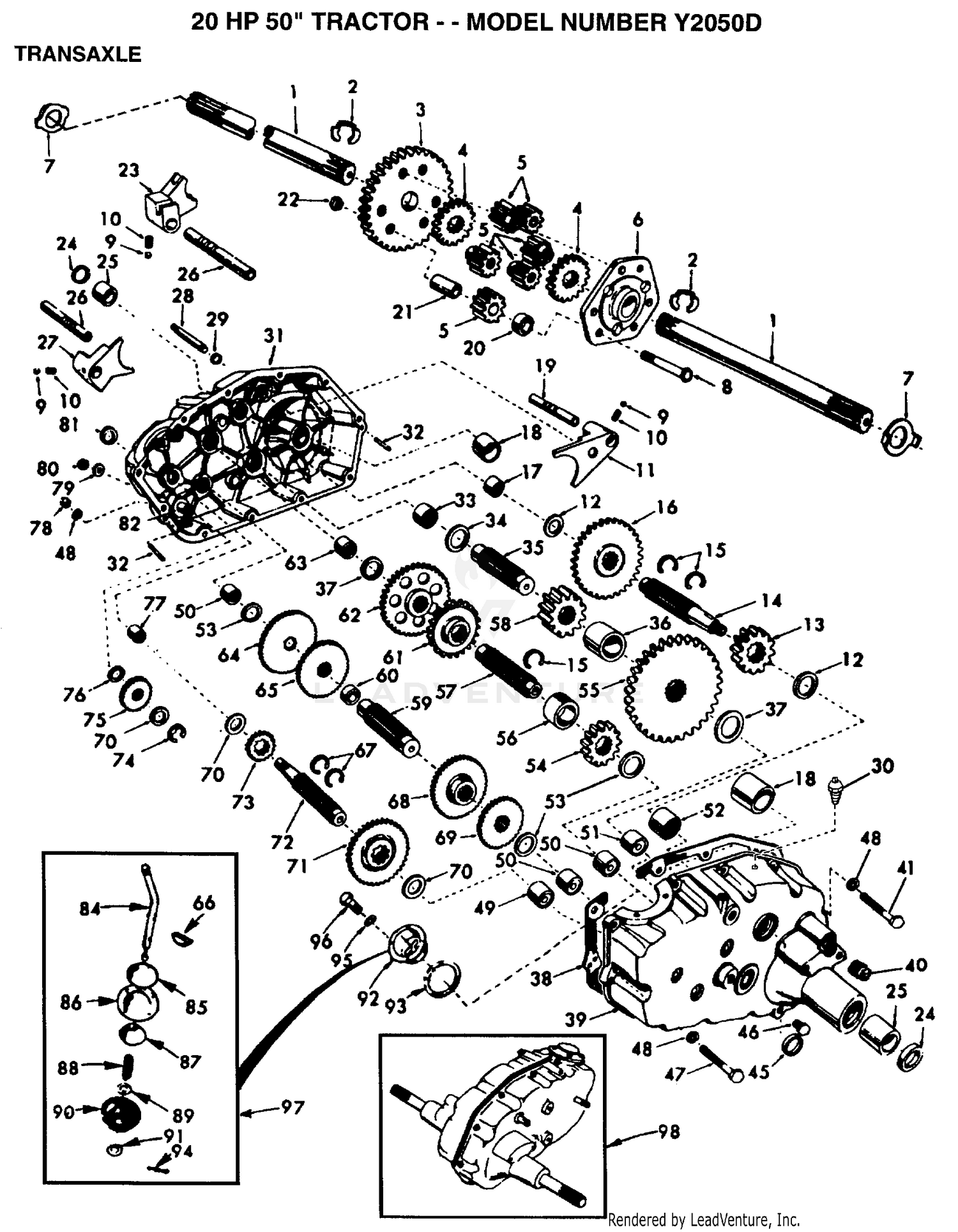

| Ref | Part Number | Description |
|---|
| 1 |
4197R |
SHAFT.AXLE.T Price: Call Us |
| 1 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 2 |
12000034 |
KLIP RING Price: Call Us |
| 2 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 3 |
32128-25 |
NUT-HF Price: $3.19 |
| 3 |
4199R |
FINAL GEAR T Price: Call Us |
| 4 |
105-7528 |
DECAL-INFORMATION, SOLENOID Price: $40.89 |
| 4 |
4216R |
DIFF GEAR T Price: Call Us |
| 5 |
4215R |
DIFF PINION T Price: Call Us |
| 5 |
98-9302 |
PLATE-STOP, IDLER Price: $12.42 |
| 6 |
4217R |
DIFF CARRIER T Price: Call Us |
| 6 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 7 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 7 |
6256H |
WASHER T Price: Call Us |
| 8 |
74020652 |
BOLT Price: Call Us |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
7392M |
SUB= 100482K Price: Call Us |
| 10 |
137261 |
SUB= 145359 Price: Call Us |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 11 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 11 |
4985R |
SHIFT FORK T Price: Call Us |
| 12 |
6266H |
WASHER .T Price: Call Us |
| 12 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
4212R |
RED PINION T Price: Call Us |
| 14 |
137125 |
SHAFT BRAKE GT Price: Call Us |
| 14 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
6276H |
SNAP RING T Price: Call Us |
| 16 |
633A63 |
GEAR T Price: Call Us |
| 16 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 17 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 18 |
8740H1 |
BEARING Price: Call Us |
| 18 |
93-8060 |
DECAL-REELS Price: $53.80 |
| 19 |
122238X |
SHAFT Price: Call Us |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
4218R |
SPACER T Price: Call Us |
| 21 |
6252H1 |
PINION RS Price: Call Us |
| 21 |
98-3926 |
CABLE-THROTTLE Price: $32.00 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
7810H |
GRIPCO NUT Price: Call Us |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 23 |
6262H |
FORK T Price: Call Us |
| 24 |
7393R |
OIL SEAL STD Price: Call Us |
| 24 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 25 |
992R1 |
BRNG. T Price: Call Us |
| 26 |
139111 |
SHIFT FORK SHAFT Price: Call Us |
| 26 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 27 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 27 |
4986R |
SHIFT FORK T Price: Call Us |
| 28 |
122254X |
SHIFT SHAFT Price: Call Us |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 29 |
6269H |
SEAL T Price: Call Us |
| 30 |
5855H |
VALVE M Price: Call Us |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
139538 |
GEARCASE RH W/BER Price: Call Us |
| 31 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 32 |
6277H |
PIN T Price: Call Us |
| 33 |
4225R |
NEEDLE BRNG T Price: Call Us |
| 34 |
7396H |
RACE T Price: Call Us |
| 35 |
4198R |
GEAR SHAFT T Price: Call Us |
| 36 |
4200R |
SUB= 532004200 Price: Call Us |
| 37 |
7395H |
RACE T Price: Call Us |
| 39 |
139536 |
GEARCASE LH W/BER Price: Call Us |
| 40 |
13320400 |
PLUG PIPE Price: Call Us |
| 41 |
17580520 |
BOLT.5/16-18X1.25 Price: Call Us |
| 45 |
6271H |
SEAL T Price: Call Us |
| 46 |
13060200 |
SUB= 13020200 Price: Call Us |
| 50 |
4222R |
NEEDLE BRNG T Price: Call Us |
| 51 |
1529R |
NEEDLE BRNG T Price: Call Us |
| 53 |
4220R |
BRNG RACE Price: Call Us |
| 54 |
4209R |
RED PINION T Price: Call Us |
| 55 |
4213R |
RED GEAR T Price: Call Us |
| 56 |
4442R |
PINION SPACER T Price: Call Us |
| 57 |
4195R |
GEAR SHAFT T Price: Call Us |
| 58 |
4214R |
FINAL PINION T Price: Call Us |
| 59 |
4194R |
GEAR SHAFT T Price: Call Us |
| 60 |
7528R |
SPACER T Price: Call Us |
| 61 |
4208R |
RED PINION T Price: Call Us |
| 62 |
4207R |
RED GEAR T Price: Call Us |
| 63 |
7398H |
RACE T Price: Call Us |
| 64 |
4203R |
LOW SPEED GEA T Price: Call Us |
| 65 |
4204R |
REVERSE GEAR T Price: Call Us |
| 66 |
2898J |
KEY T Price: Call Us |
| 67 |
12000033 |
KLIP RING Price: Call Us |
| 68 |
4205R |
INTERMED GEAR T Price: Call Us |
| 69 |
4206R |
SUB= 532004206 Price: Call Us |
| 71 |
633A69 |
CLUSTER GEAR T Price: Call Us |
| 72 |
139120 |
SHAFT INPUT Price: Call Us |
| 73 |
4201R |
LO SPEED PINION T Price: Call Us |
| 74 |
12000008 |
KLIP RING Price: Call Us |
| 75 |
1153R |
IDLER GEAR T Price: Call Us |
| 77 |
6803J |
NEEDLE BEARING TI Price: Call Us |
| 79 |
1167R |
WASHER T Price: Call Us |
| 80 |
73360700 |
NUT Price: Call Us |
| 81 |
6270H |
SEAL STD Price: Call Us |
| 82 |
136984 |
SHAFT REVERSE IDL Price: Call Us |
| 84 |
5384J |
GEAR SHIFT LVR T Price: Call Us |
| 85 |
2978J |
CAP T Price: Call Us |
| 86 |
633A85 |
COVER AND PIN T Price: Call Us |
| 87 |
8739H1 |
GUIDE BALL T Price: Call Us |
| 88 |
4924H |
SPRING TI Price: Call Us |
| 89 |
19151516 |
WASHER Price: Call Us |
| 90 |
110542X |
SEAL T Price: Call Us |
| 91 |
19181511 |
WASHER Price: Call Us |
| 92 |
75J |
GEAR SHIFT GA T Price: Call Us |
| 93 |
6274H |
GASKET T Price: Call Us |
| 94 |
76020412 |
COTTER PIN Price: Call Us |
| 95 |
10040500 |
LOCKWASHER Price: Call Us |
| 96 |
74760514 |
BOLT Price: Call Us |
| 97 |
633A109 |
GEAR SHFT LVR T Price: Call Us |
