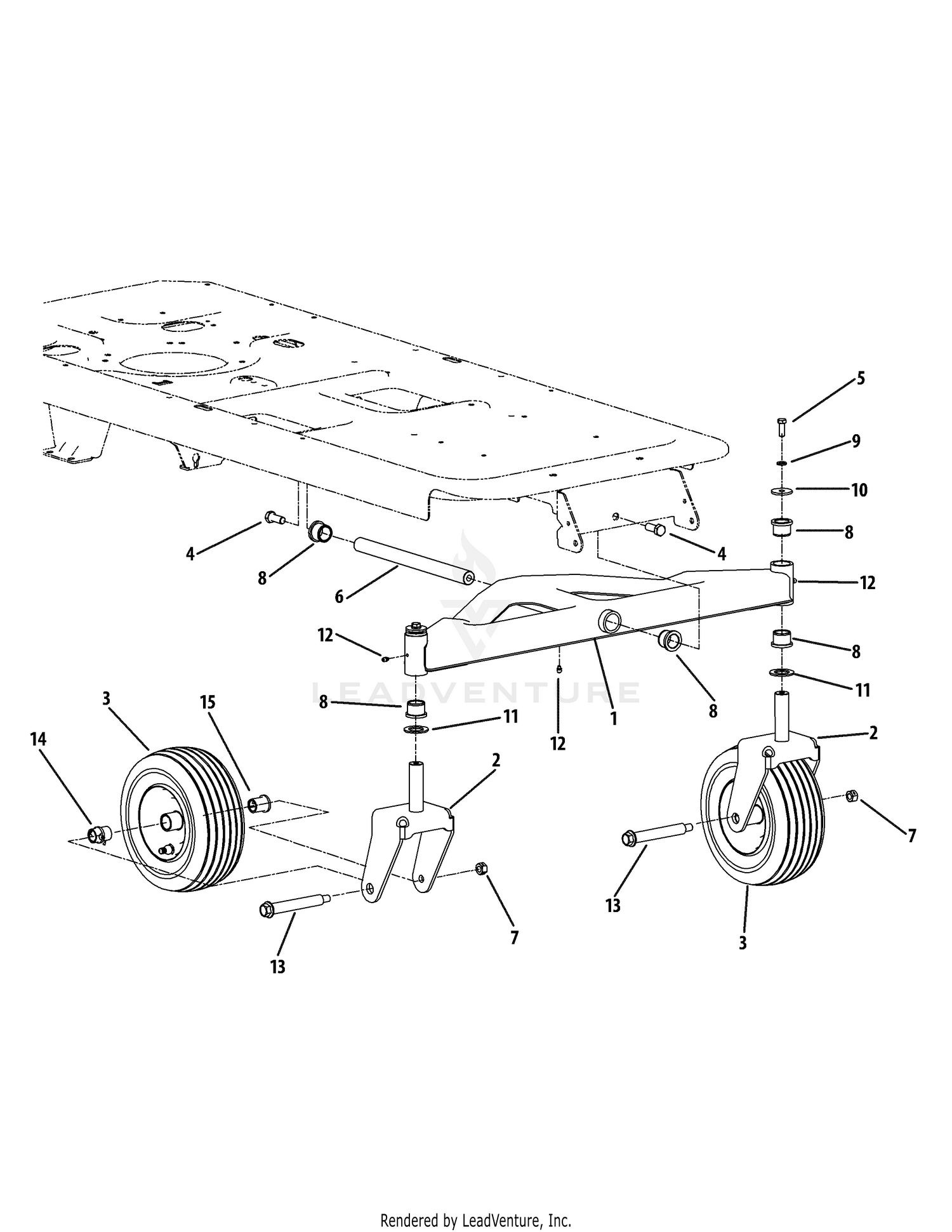

| Ref | Part Number | Description |
|---|
| 1 |
603-04148C |
FRONT PIVOT AXLE Not Available Price: |
| 2 |
603-04308A |
CASTER YOKE This part replaces 603-04308. Price: $70.25 |
| 3 |
634-04237C |
Wheel Assembly, 11.0 x 4.0 x 5.0 This part replaces 634-04237A. Price: $142.57 |
| 4 |
710-04186 |
Hex Lock Screw,1/2-13 x 1.25 Price: $6.17 |
| 5 |
710-0514 |
Hex Cap Screw, 3/8 -16 x 1.0 Price: $3.78 |
| 6 |
911-04228 |
Axle Shaft This part replaces 711-04228. Price: $67.85 |
| 7 |
712-3022 |
Hex Lock Nut, 1/2-13 Price: $3.61 |
| 8 |
731-05500 |
Flange Bearing, 1.0 x 1.246 Price: $9.18 |
| 9 |
736-0169 |
Lock Washer, 3/8 Price: $3.33 |
| 10 |
736-0227 |
Flat Washer, .39 x 1.5 x .134 Price: $5.78 |
| 11 |
736-0250 |
Flat Washer, 1.0 x 1.75 x .107 Price: $3.90 |
| 12 |
937-3000 |
GREASE FITTING This part replaces 7373000. Price: $4.04 |
| 13 |
738-04182B |
SHOULDER BOLT .750X4.75X1/2-13 This part replaces 738-04182A. Price: $22.91 |
| 14 |
741-0516B |
Flange Bearing, .76 x 1.0 x 1.2 Price: $5.64 |
