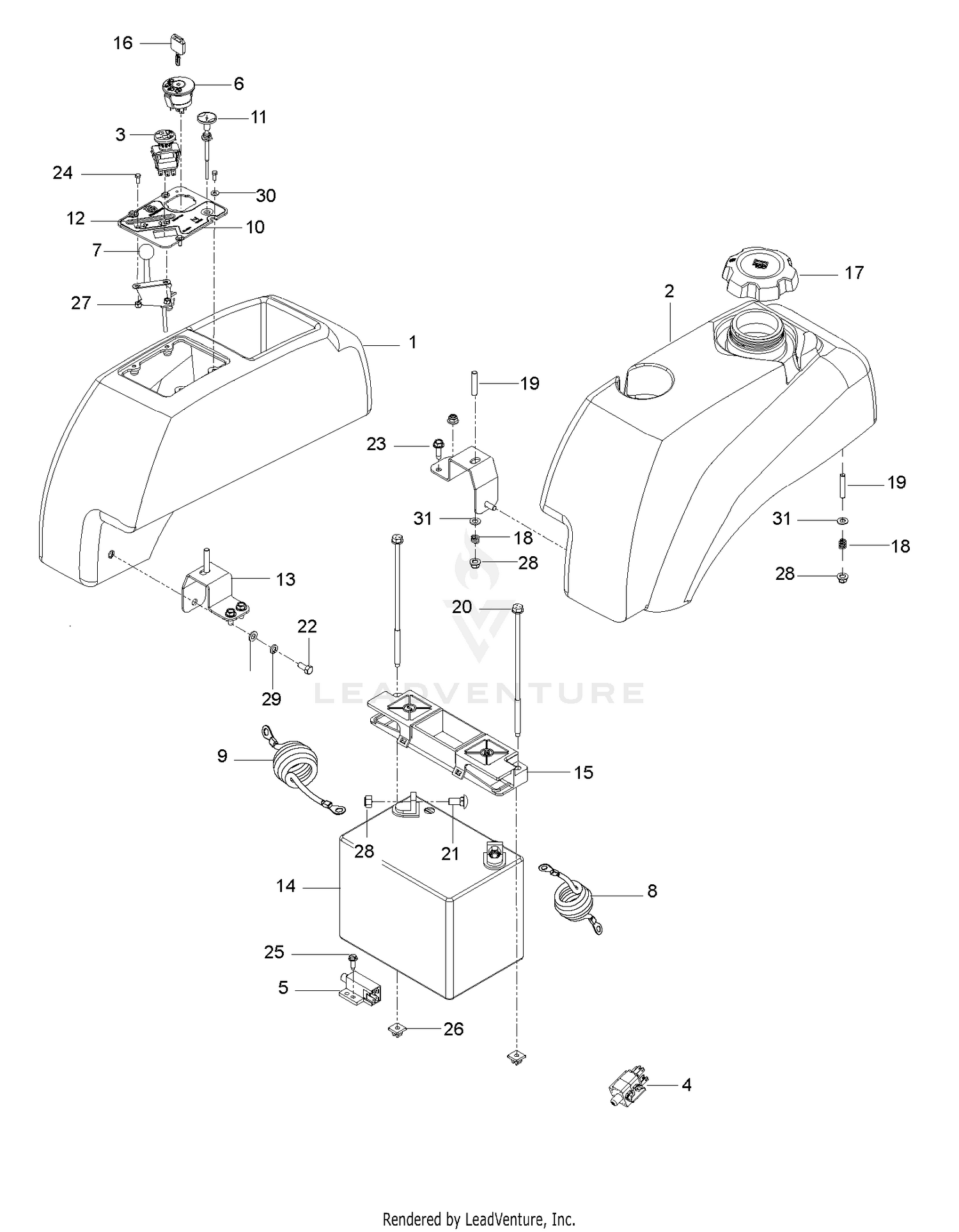

| Ref | Part Number | Description |
|---|
| 1 |
539107593 |
FENDER CONSOLE Price: $129.99 |
| 2 |
539104409 |
LEFT TANK W/CUP HOLDER Price: $249.99 |
| 3 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 582107602. Price: $24.99 |
| 4 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 5 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 6 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 8 |
539132413 |
POSITIVE CABLE, 46" Price: $14.99 |
| 9 |
539107645 |
NEG. CABLE, 28" Price: $34.99 |
| 11 |
539112439 |
CHOKE CABLE This part replaces 539130209. Price: $29.99 |
| 12 |
539131723 |
DECAL, CONSOLE Price: $9.99 |
| 13 |
539131671 |
SUPPORT, TANK, BLK Price: $59.99 |
| 14 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 15 |
539107628 |
BATTERY HOLD DOWN Price: $4.99 |
| 16 |
532140401 |
KEY MLD GEN DELTA This part replaces 539107544. Price: $5.99 |
| 17 |
539130393 |
FUEL CAP, HTC Price: $19.99 |
| 18 |
539102845 |
SPRING Price: $2.99 |
| 19 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 20 |
539107632 |
BOLT - 1/4-20 X 7.5 Price: $0.99 |
| 21 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 22 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 23 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 24 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 25 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 26 |
539107629 |
PUSH NUT-NYLON Price: $2.99 |
| 27 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 28 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 29 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 30 |
539105408 |
WASHER #10 Price: $2.99 |
| 31 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
