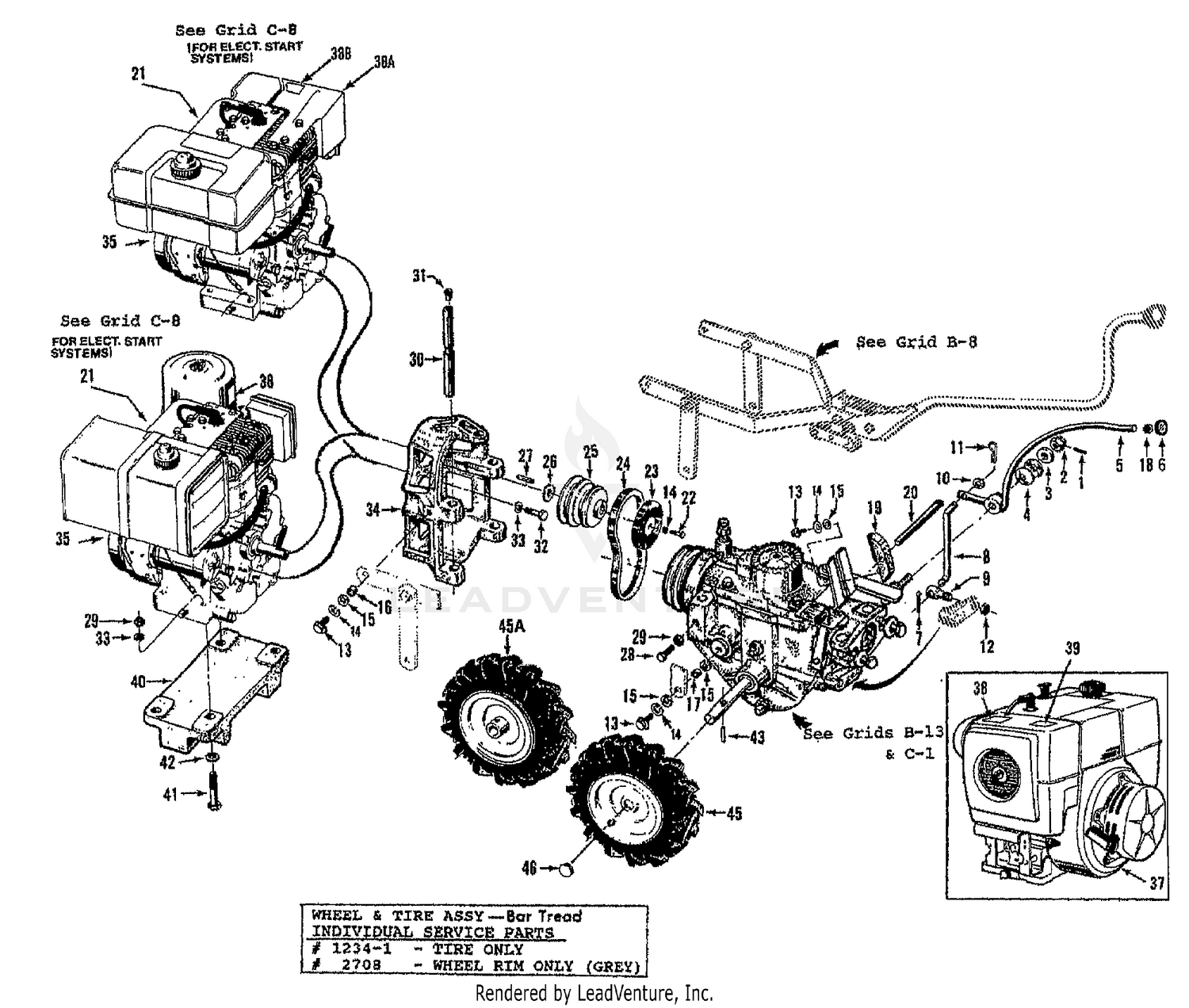

| Ref | Part Number | Description |
|---|
| 1 |
GW-9362 |
PIN - spring, 1/8" dia., retains castle nut to threaded stud This part replaces 9362. Price: $3.82 |
| 2 |
9838 |
NUT-HEX 1/2-20 (SLOTTED) Price: Call Us |
| 3 |
GW-9934 |
WASHER- shoulder, 1/2" (shoulder faces disc washers) This part replaces 9934. Price: $13.73 |
| 4 |
GW-9932 |
WASHER- disc spring (concave surfaces face each other) This part replaces 9932. Price: $21.54 |
| 5 |
GW-2628 |
LEVER - wheel speed shift This part replaces 2628. Price: $124.90 |
| 6 |
1902240 |
KNOB-WHEEL SPEED HORSE (INCL. 18 & PLASTIC DECAL INLAY) Price: $20.45 |
| 7 |
GW-9317 |
PIN - cotter, 3/32" x 1" This part replaces 9317. Price: $3.22 |
| 8 |
GW-1231 |
ROD - connecting rod, wheel speed shift lever This part replaces 1231. Price: $14.83 |
| 9 |
GW-1033 |
SWIVEL - connecting rod This part replaces 1033. Price: $13.56 |
| 10 |
736-0567 |
NYLON FLAT WASHER Not Available This part replaces GW-9902. Price: |
| 11 |
714-04048 |
PIN - hair cotter This part replaces 9338. Price: $7.04 |
| 12 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces GW-9808. Price: $2.83 |
| 13 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces GW-9710. Price: $3.78 |
| 14 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces GW-9913. Price: $3.33 |
| 15 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 9904. Price: $3.90 |
| 16 |
N/A |
THIS REF. NO. NOT USED |
| 17 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53 |
| 18 |
GW-9120 |
RING- retaining (tolerance ring) This part replaces 9120. Price: $5.94 |
| 19 |
GW-1920 |
BLOCK - belt adjustment, 3-7/8" long This part replaces 1920. Price: $53.19 |
| 20 |
GW-2100 |
ROD - belt adjustment, 7" long, with measuring gauge This part replaces 2100. Price: $11.28 |
| 21 |
1900766 |
DECAL-STARTING STA Not Available Price: |
| 22 |
710-0459A |
BOLT - hex. hd., 3/8"-24 x 1-1/2", engine pulley This part replaces GW-9715. Price: $6.50 |
| 23 |
756-04171 |
DISC ONLY-reverse, rubber rimmed This part replaces GW-2111. Price: $58.85 |
| 23 |
GW-1919 |
KIT-ADJ BLOCK/REV DISC (INCL. 19) Price: $92.08 |
| 25 |
619-04124 |
PULLEY- engine P.T.O. (Power Take Off) This part replaces 1483. Price: $135.20 |
| 26 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces 1138-1. Price: $4.36 |
| 26 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 27 |
GW-9303 |
KEY - engine pulley, 3/16" square x 2-1/2" This part replaces 9303. Price: $3.22 |
| 38 |
55053 |
DECAL-HOT SURFACE Not Available Price: |
| 38A |
1909064001 |
MUFFLER GUARD Not Available Price: |
| 38B |
1902750 |
DECAL-HOT SURFACE Not Available Price: |
| 39 |
1900767 |
DECAL-STABIL START Not Available Price: |
| 40 |
2522 |
WEIGHT-ENG ECONO PNT Price: Call Us |
| 41 |
710-0395 |
Screw-Hex 5/16-18 This part replaces GW-9966. Price: $4.08 |
| 42 |
GW-20553 |
SPACER .88X.385X.0 Not Available This part replaces 20553. Price: |
