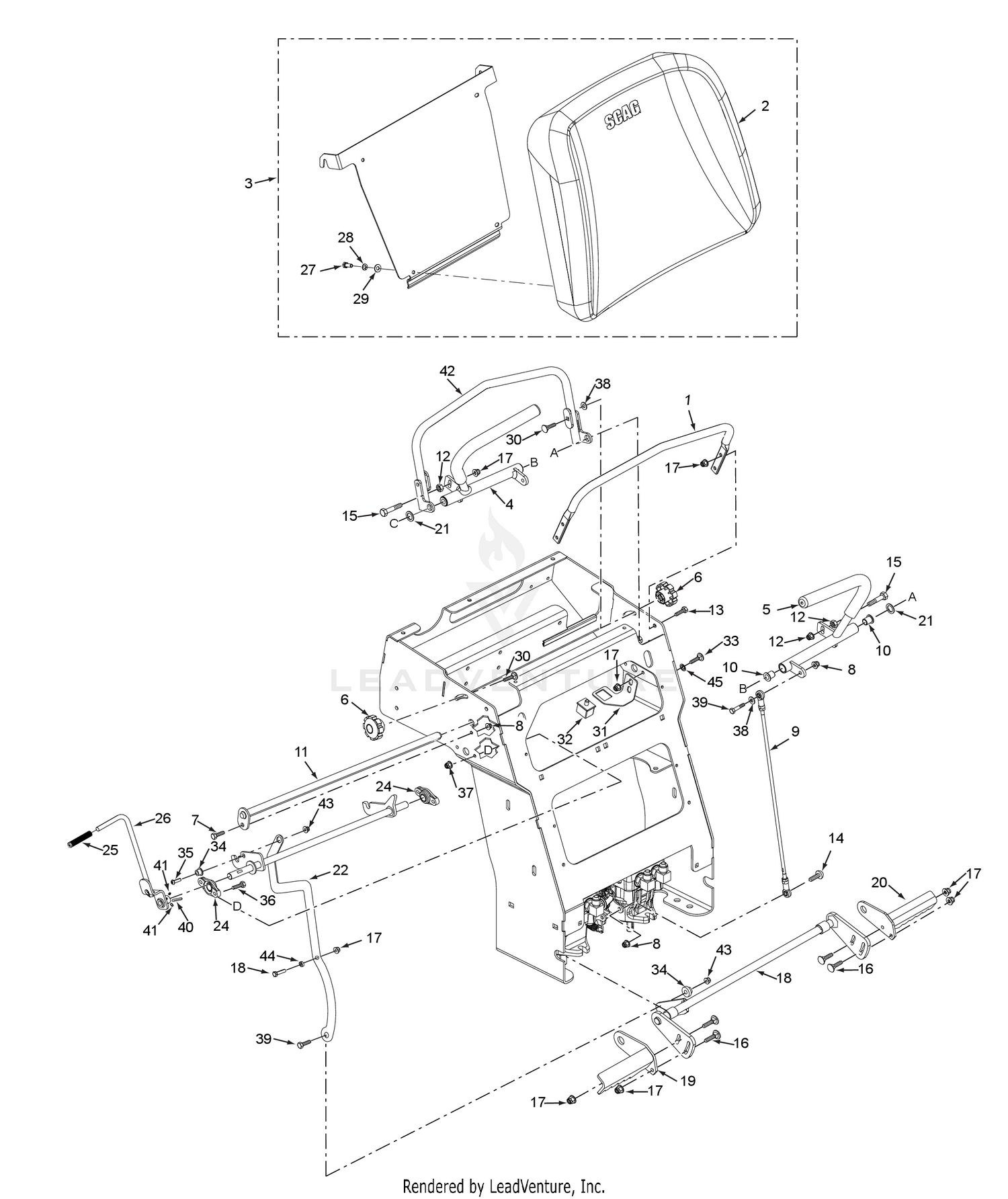

| Ref | Part Number | Description |
|---|
| 1 |
427189 |
Reference Bar Price: Call Us |
| 2 |
486836 |
Operator Pad Price: Call Us |
| 3 |
463532 |
Operator Pad Assy., w/Decal Price: Call Us |
| 4 |
463015 |
Handlebar Assembly, LH Price: Call Us |
| 5 |
463016 |
Handlebar Assembly, RH Price: Call Us |
| 6 |
481885-07 |
Knob, 5/16 - 18 Price: Call Us |
| 7 |
04201-17 |
Bolt, Hex 5/16" - .375 x 1.00- Stainless Steel Price: Call Us |
| 8 |
04317-02 |
Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel Price: Call Us |
| 9 |
485842 |
Linkage Assy., Steering Price: Call Us |
| 10 |
483453-14 |
Bearing, .625 ID Plastic Price: Call Us |
| 11 |
452957 |
Shaft Weldment, Control Arm Price: Call Us |
| 12 |
04219-04 |
Nut, 3/8-16 - Stainless Steel Price: Call Us |
| 13 |
04201-17 |
Bolt, Hex 5/16" - .375 x 1.00- Stainless Steel Price: Call Us |
| 14 |
04108-02 |
Hex Head Socket, 5/16-18 x 1" (36) Price: Call Us |
| 15 |
04201-31 |
Bolt, Hex 3/8 - 16 x 1.75 - Stainless Steel Price: Call Us |
| 16 |
04203-29 |
Bolt, Carriage 3/8 - 16 x 1.25 - Stainless Steel Price: Call Us |
| 17 |
04317-02 |
Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel Price: Call Us |
| 18 |
453407 |
Bellcrank Weldment, Brake Price: Call Us |
| 19 |
452841 |
BRAKE PADDLE WLMT, LH Price: Call Us |
| 20 |
452842 |
Brake Paddle Weldment, RH Price: Call Us |
| 21 |
04241-07 |
Washer, Flat 5/8 - .687 x 1.00 x .078 - Stainless Steel Price: Call Us |
| 22 |
429439 |
Link, Brake Engage Price: Call Us |
| 23 |
453281 |
Lock Weldment, Neutral Price: Call Us |
| 24 |
483504 |
Bearing Price: Call Us |
| 25 |
48342 |
GRIP, PARKING BRAKE Price: Call Us |
| 27 |
04201-16 |
Bolt, Hex 5/16 - 18 x .75 - Stainless Steel Price: Call Us |
| 28 |
04230-03 |
Washer, Lock 5/16 Spring - Stainless Steel Price: Call Us |
| 29 |
04241-06 |
Washer, Flat 5/16 - .349 x .750 x .050 - Stainless Steel Price: Call Us |
| 30 |
04203-20 |
Bolt, Carriage 5/16-18 x 1.75 - Stainless Steel Price: Call Us |
| 31 |
427908 |
Mounting Bracket, Brake Switch Price: Call Us |
| 32 |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 33 |
04203-17 |
Bolt, Carriage 5/16 - 18 x 1" - - Stainless Steel Price: Call Us |
| 34 |
48100-30 |
BUSHING, BRONZE - .376 ID X .627 OD Price: Call Us |
| 35 |
04208-01 |
Cap Screw, 3/8 - 16 x 1.25 Hex Socket - Stainless Steel Price: Call Us |
| 36 |
04201-07 |
Bolt, Hex 1/4 - 20 x 1.25 - Stainless Steel Price: Call Us |
| 37 |
04317-01 |
Locknut, 1/4 - 20 Flg. Elastic Stop - Stainless Steel Price: Call Us |
| 38 |
04241-06 |
Washer, Flat 5/16 - .349 x .750 x .050 - Stainless Steel Price: Call Us |
| 39 |
04201-18 |
Cap Screw, 5/16-18 X 1.25 Price: Call Us |
| 40 |
04063-05 |
KEY, 3/16 X 3/16 X 1-1/2 Price: Call Us |
| 41 |
04212-01 |
Set Screw, 1/4 - 20 x .25 - Stainless Steel Price: Call Us |
| 42 |
452960 |
Weldment, Reference Bar Price: Call Us |
| 43 |
04317-03 |
Nut, Flange Elastic Stop 3/8 - 16 - Stainless Steel Price: Call Us |
