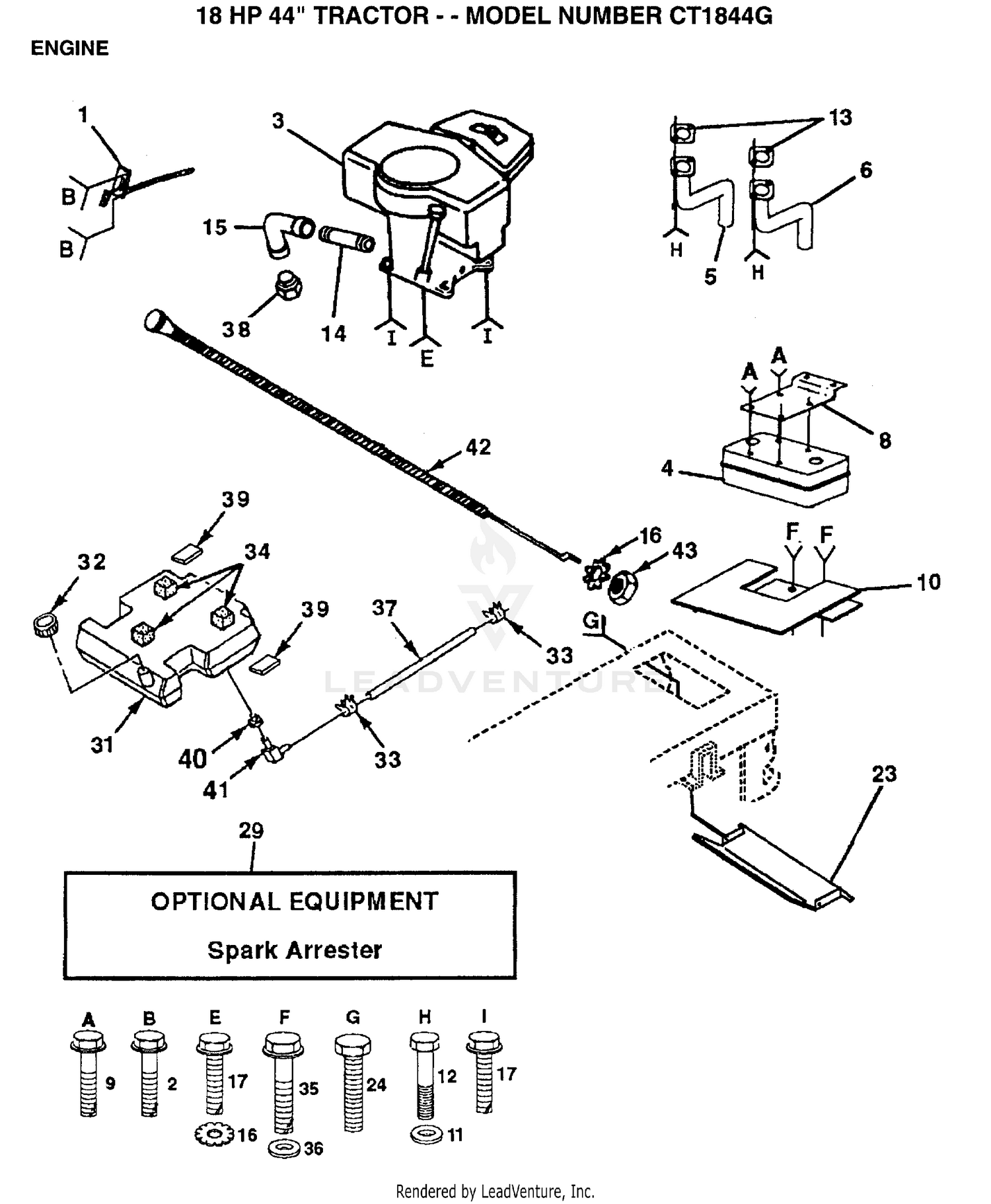

| Ref | Part Number | Description |
|---|
| 1 |
132774 |
SUB= 532132774 Price: Call Us |
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM Price: $83.12 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 3 |
422707 |
ENGINE B&S 18HP Price: Call Us |
| 3 |
99-5643 |
HOSE-HYD Price: $125.90 |
| 4 |
137978 |
SUB= 149723 Price: Call Us |
| 5 |
136989 |
EXHAUST ASM LH Price: Call Us |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 6 |
136988 |
SUB= 144068 Price: Call Us |
| 6 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 7 |
99-5641 |
HOSE-HYD Price: $136.64 |
| 8 |
107-1801 |
DISCONTINUED Price: Call Us |
| 8 |
122439X |
BRACKET MUFFLER Price: Call Us |
| 9 |
17190408 |
SCREW ST Price: Call Us |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 10 |
143600 |
SHIELD HEAT LT Price: Call Us |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
125-1906 |
PIN-CYLINDER This part replaces 105-9889. Price: $27.84 |
| 12 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 12 |
74780412 |
SUB= 74780414 Price: Call Us |
| 13 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 13 |
8545J |
SUB= 272250 Price: Call Us |
| 14 |
13280336 |
PIPE NIPPLE LT Price: Call Us |
| 14 |
75-5220-03 |
DISCONTINUED Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
75-5200-03 |
BRACKET-SPRING, RH Price: $95.29 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
75-5210-03 |
BRACKET-SPRING, CENTER Price: $94.91 |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
328-7 |
SCREW-HH Price: $4.00 |
| 20 |
32151-48 |
E-RING Price: $1.41 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 22 |
5-0743-03 |
SPRING-MOWER Price: $188.53 |
| 23 |
128953 |
HEAT SHIELD Price: Call Us |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 24 |
17021008 |
SCREW Price: Call Us |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 108-4436. Price: $582.35 |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 29 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 30 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 31 |
141069 |
SUB= 151346 Price: Call Us |
| 31 |
75-5900 |
HOSE Price: $78.45 |
| 32 |
106-5958 |
BRACKET-SWITCH Price: $22.95 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 34 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 34 |
106082X |
PAD-SPACER LT Price: Call Us |
| 35 |
17490512 |
SCREW Price: Call Us |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 36 |
19132012 |
WASHER Price: Call Us |
| 36 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 37 |
110-9709 |
HYD CYLINDER ASM Price: $743.86 |
| 37 |
8543R |
FUEL LINE T Price: Call Us |
| 38 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 39 |
109227X |
PAD IDLER TI Price: Call Us |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 40 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 40 |
3645J |
BUSHING OUTLET T Price: Call Us |
| 41 |
139277 |
STEM.TANK.FUEL Price: Call Us |
| 41 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 42 |
132781 |
CHOKE CONTROL Price: Call Us |
| 42 |
99-5642 |
HOSE-HYD Price: $157.38 |
