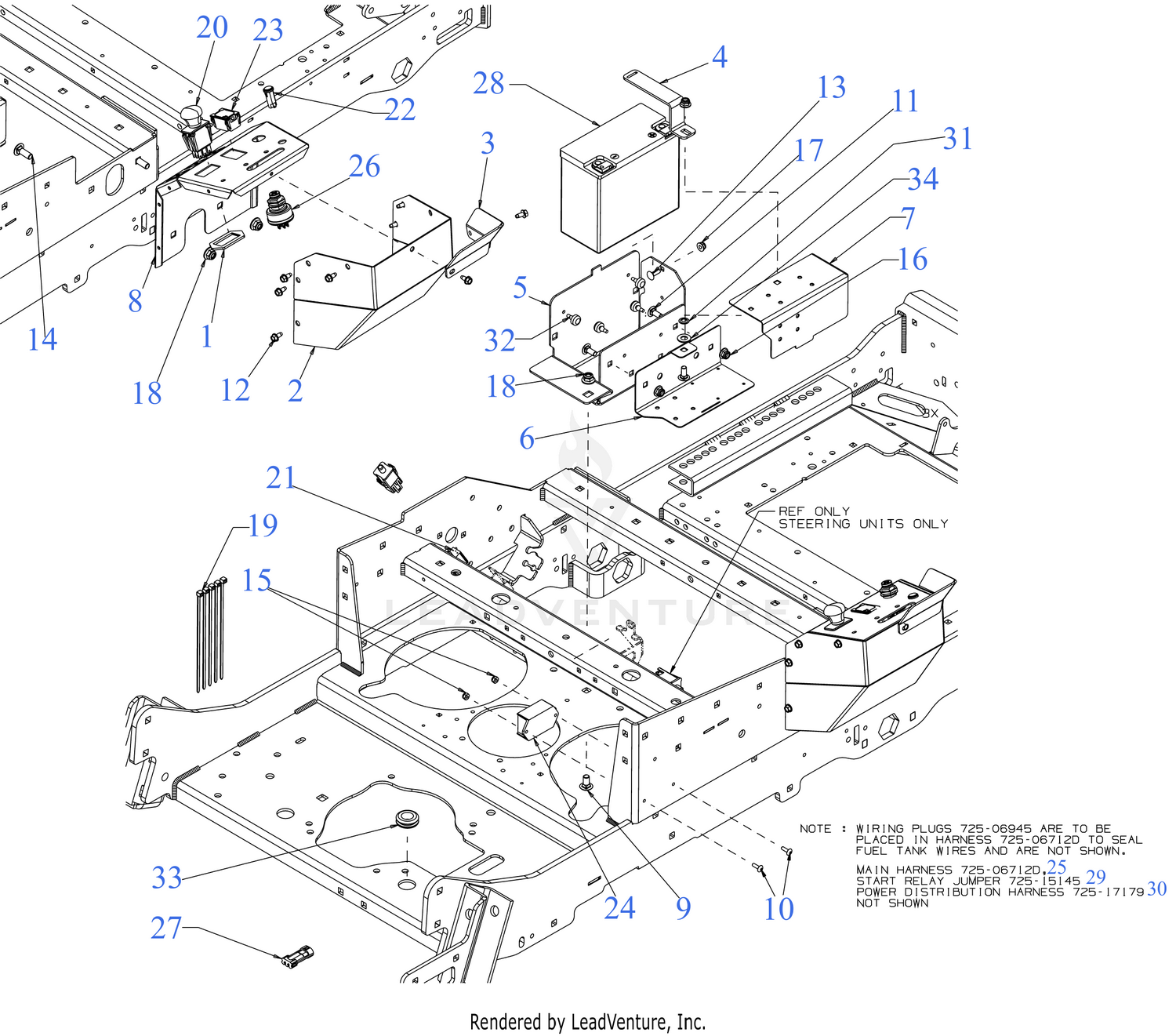

| Ref | Part Number | Description |
|---|
| 1 |
01009905 |
BRACKET-PTO SWITCH Price: $23.90 |
| 4 |
703E21965 |
BATTERY SUPPORT BRACKET Price: $9.29 |
| 6 |
703E26876A |
MOUNT BRACKET (LOWER) This part replaces 703E26876. Price: $22.78 |
| 7 |
703E26877 |
COVER BRACKET (UPPER) Price: $18.22 |
| 9 |
710-0389 |
CARRIAGE BOLT 3/8-16 x .750 GR5 Price: $3.89 |
| 10 |
710-0425 |
SCREW #10-24 x .62 Price: $4.21 |
| 11 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 12 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 13 |
710-0703 |
SCREW 1/4-20 x .75 GR5 Price: $3.66 |
| 14 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 15 |
712-0161 |
HEX NUT Price: $4.02 |
| 16 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 17 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 18 |
712-04065 |
NUT Price: $3.68 |
| 20 |
925-04174A |
PTO SWITCH (BLACK KNOB) TEXT SYM Price: $62.00 |
| 22 |
725-04660 |
INDICATOR LIGHT-RED Price: $28.06 |
| 23 |
725-05438 |
HOURMETER Price: $91.75 |
| 24 |
725-06308 |
CONTROL PANEL (SOFT CLUTCH) Price: $270.62 |
| 25 |
725-06712D |
WIRE HARNESS ASSEMBLY (KOH/KAW EFI) Price: $151.39 |
| 25 |
925-1718 |
RELAY Price: $64.50 |
| 26 |
925-06854 |
KEY SWITCH (3 POSITION) Price: $121.70 |
| 26 |
925-06908 |
PRO-Z KEY SET Price: $22.26 |
| 27 |
725-06945 |
SEALED CAP ASSEMBLY Price: $7.72 |
| 28 |
725P13306 |
BATTERY (300 CCA) Price: $131.90 |
| 29 |
725P15145 |
JUMPER HARNESS (W/RELAY) Price: $53.28 |
| 30 |
725P17179 |
AUX POWER HARNESS Price: $124.19 |
| 31 |
726-0201 |
PUSH NUT Price: $6.01 |
| 32 |
735-0271A |
BUMPER, .62 DIA x .3 Price: $7.84 |
| 33 |
735-04285 |
RUBBER GROMMET Price: $3.37 |
