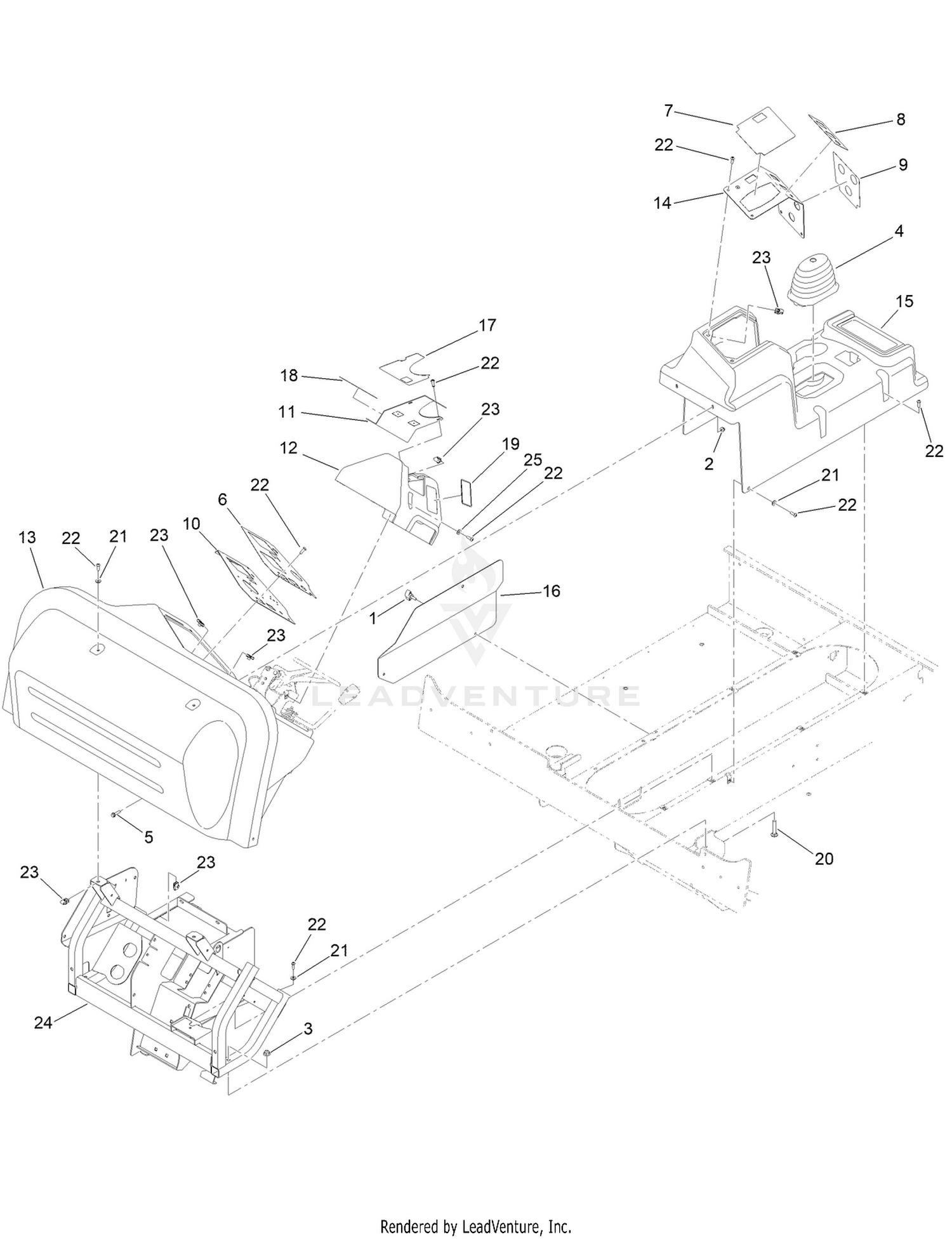

Panel Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-8332 | KNOB Price: $4.89 |
| 2 | 104-7201 | NUT-HF Price: $0.69 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 117-8063 | BOOT-SHIFT Price: $26.52 |
| 5 | 120-4654 | SCREW-HHF Price: $0.34 |
| 6 | 136-5023 | DECAL-PANEL, CONTROL Price: $41.82 |
| 7 | 138-4164 | DECAL-CONSOLE, JOYSTICK Price: $17.16 |
| 8 | 136-5025 | DECAL-CONSOLE, MID Price: $15.22 |
| 9 | 136-5026 | DECAL-CONSOLE, LOWER Price: $17.77 |
| 10 | 136-9619-03 | PANEL-CONTROL Price: $46.08 |
| 11 | 147-1711-03 | PANEL-STEER Price: Call Us |
| 12 | 136-9628 | COVER-STEER Price: $126.13 |
| 13 | 136-9634 | DASH-MOLDED Price: $396.35 |
| 14 | 138-4163-03 | PLATE-CONSOLE, JOYSTICK Price: $49.13 |
| 15 | 136-9636 | CONSOLE Price: $263.00 |
| 16 | 136-9776-03 | PANEL-SERVICE Price: $33.65 |
| 17 | 147-1713 | DECAL-CONSOLE Price: $15.59 |
| 18 | 147-1712 | DECAL-CONSOLE Price: $10.92 |
| 19 | 138-2017 | DECAL-SHIFTER Price: $10.04 |
| 20 | 3231-6 | SCREW-CARR Price: $2.69 |
| 21 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 22 | 3274-69 | SCREW-HSBH Price: $0.43 |
| 23 | 107069 | CLIP Price: $1.79 |
| 24 | 138-8260-0P | DASH ASM [PRIMED] Price: Call Us |
