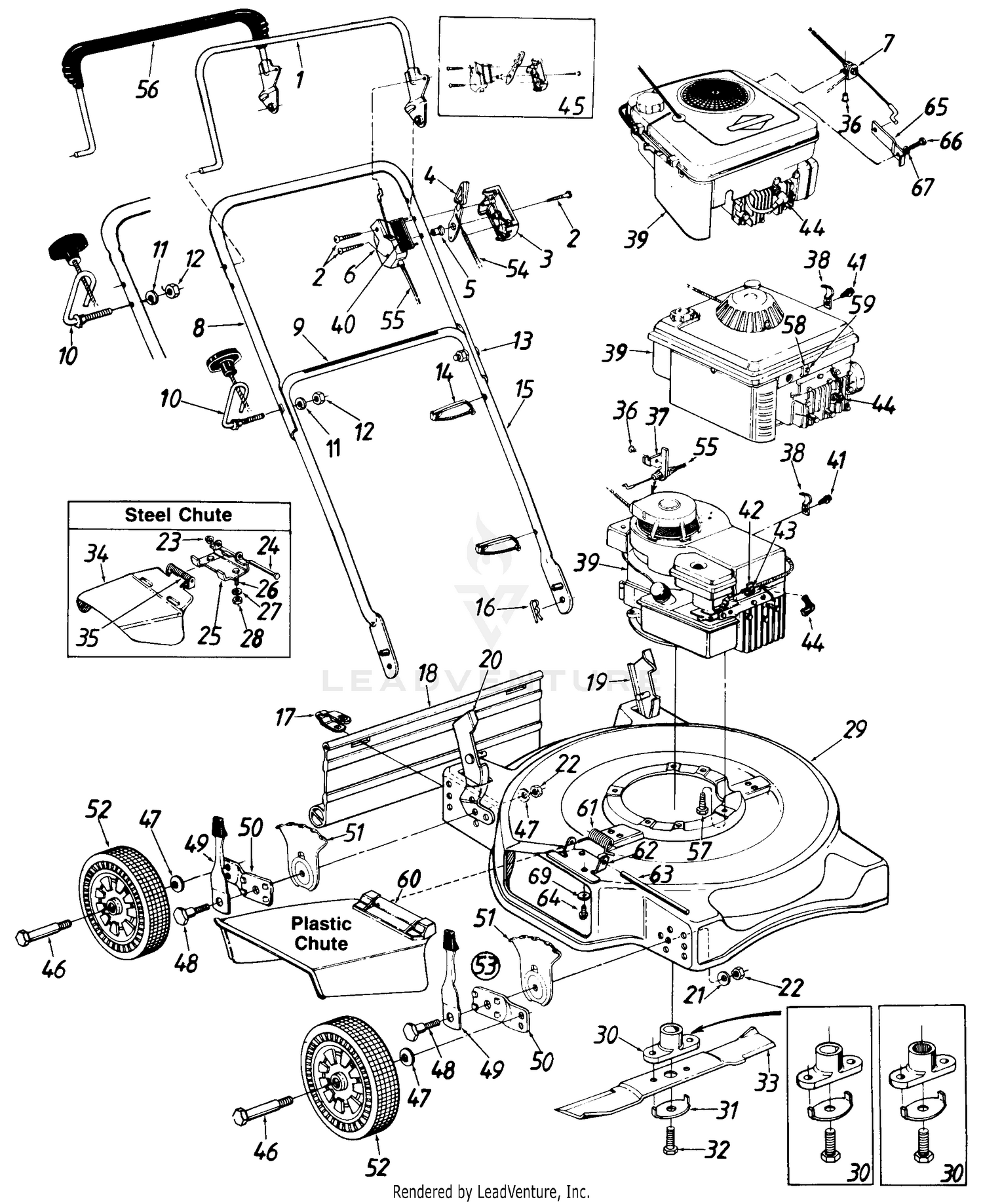

| Ref | Part Number | Description |
|---|
| 2 |
710-0796 |
Truss Mach. Scr. #12 x 1.5" Lg. Price: $4.75 |
| 3 |
731-0817 |
PANEL Not Available Price: |
| 4 |
931-0972 |
Throttle Control Lever This part replaces 731-0972. Price: $8.84 |
| 5 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 6 |
731-0816 |
CIUTCH PANEL HALF Not Available Price: |
| 8 |
749-0755 |
UPPER HANDLE Not Available Price: |
| 9 |
777-5776 |
LABEL Price: Call Us |
| 10 |
710-0842B |
SCREW-RECOIL HANDLE GUIDE Not Available Price: |
| 11 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 12 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 13 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 14 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 15 |
749-0928A-0637 |
Lower Handle This part replaces 749-0372B. Price: $29.67 |
| 16 |
714-0104 |
Hairpin Cotter Price: $3.90 |
| 17 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 18 |
731-0872B |
Rear Flap Not Available This part replaces 731-0872. Price: |
| 19 |
17189 |
BRACKET ASSEMBLY-H Not Available Price: |
| 20 |
17188 |
BRACKET ASSY-HDLE-RH Not Available Price: |
| 21 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 22 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 29 |
17036 |
DECK ASSEMBLY-20IN Not Available Price: |
| 30 |
753-0462 |
KIT-BLADE Not Available Price: |
| 31 |
753-0525 |
KIT-BLADE MOUNTING Not Available This part replaces 736-0415. Price: |
| 39 |
N/A |
Engine |
| 45 |
753-0430 |
CONTROL HOUSING COMP. Not Available Price: |
| 46 |
N/A |
Axle Bolt |
| 47 |
736-0105 |
Bell-Wash. .400" I.D. x .88" Price: $3.96 |
| 48 |
738-0507B |
Shld. Bolt .50" Dia. x .357" Price: $3.86 |
| 49 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 50 |
15262B |
Pivot Bar Price: $13.59 |
| 51 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 52 |
N/A |
Wheel Ass'y. Comp. |
| 53 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 57 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16 x 1 on Lg. Price: $3.75 |
| 60 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price: |
| 61 |
932-0593 |
Torsion Spring This part replaces 732-0593. Price: $4.24 |
| 62 |
17032A |
PLATE-ADAPTER Not Available This part replaces 17032. Price: |
| 63 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 64 |
710-0599 |
Hex Self-Tap Scr. 1/4-20 x 5" Lg. Price: $3.86 |
| 97046 |
DECK |
ASSEMBLY-22IN Not Available This part replaces 17046. Price: 97046 |
