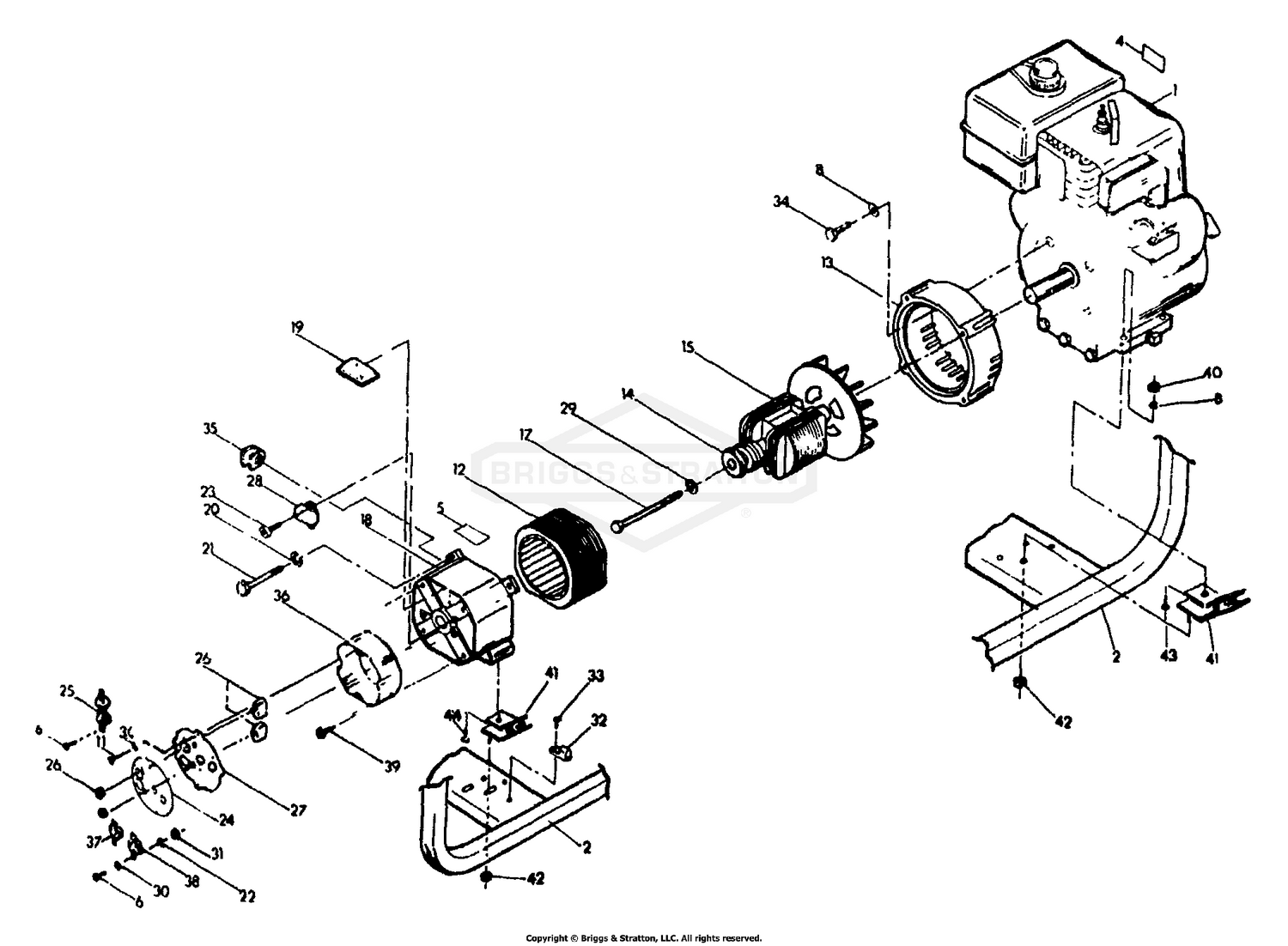

| Ref | Part Number | Description |
|---|
| 1 |
69649 |
ENGINE-TECUMSEH HM80 Price: Call Us |
| 2 |
75987 |
CRADLE ASSEMBLY Price: Call Us |
| 4 |
39178 |
DECAL Price: Call Us |
| 5 |
72079 |
DECAL-WARNING Price: Call Us |
| 6 |
797483 |
SCREW This part replaces 36917. Price: $3.66 |
| 8 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 11 |
33528 |
SCREW, PAN HD.-NO. 10-32 x 1/4" Price: $47.62 |
| 12 |
74709 |
STATOR ASSEMBLY Price: Call Us |
| 13 |
66765D |
HOUSING, ENGINE ADAPTOR Price: Call Us |
| 14 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 15 |
74716 |
ROTOR ASSEMBLY Price: Call Us |
| 17 |
73067 |
BOLT, ROTOR-5/16"-24 x 8.25 Price: Call Us |
| 18 |
66825 |
CARRIER, REAR BEARING Price: Call Us |
| 19 |
66850GS |
ASSY, RECTIFIER, BRIDGE This part replaces 66850. Price: Call Us |
| 20 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 21 |
66449D |
BOLT, STATOR-M6-1.00 x 130MM Price: Call Us |
| 22 |
22264 |
LOCKWASHER-M8 Price: $8.99 |
| 23 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 24 |
7072284YP |
SHAFT, Hex (3/8-24 thread, one end) This part replaces 72284. Price: $22.46 |
| 25 |
68759GS |
OUTLET, 20A,120V This part replaces 68759. Price: $23.24 |
| 26 |
66819 |
BREAKER, CIRCUIT-20 AMP Price: Call Us |
| 27 |
7058295YP |
WELD UPPER SHIFTER This part replaces 72290. Price: $41.49 |
| 28 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 29 |
67451 |
FLAT WASHER-(SPECIAL) Price: Call Us |
| 30 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 31 |
22471GS |
NUT, #8-32 This part replaces 22471. Price: $2.39 |
| 32 |
25433 |
LUG, GROUNDING Price: Call Us |
| 33 |
24489 |
SCREW, (TAPTITE)-NO. 10-24 x 1/2" Price: Call Us |
| 34 |
22336 |
SCREW, HEX HEAD-5/16"-24 x 3/4" Price: Call Us |
| 35 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 36 |
7072280YP |
BRKT, TRACTION CABLE This part replaces 72280. Price: $19.36 |
| 37 |
705932 |
OUTLET-120V TL30A This part replaces 68868. Price: $34.97 |
| 38 |
68867GS |
OUTLET, 120/240V Locking, 20A This part replaces 68867. Price: $43.09 |
| 39 |
73540 |
SCREW, PAN HD.-M6-0.80 x 25MM Price: Call Us |
| 40 |
5045771B |
SKID PLATE This part replaces 45771. Price: $55.95 |
| 41 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 42 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 43 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
