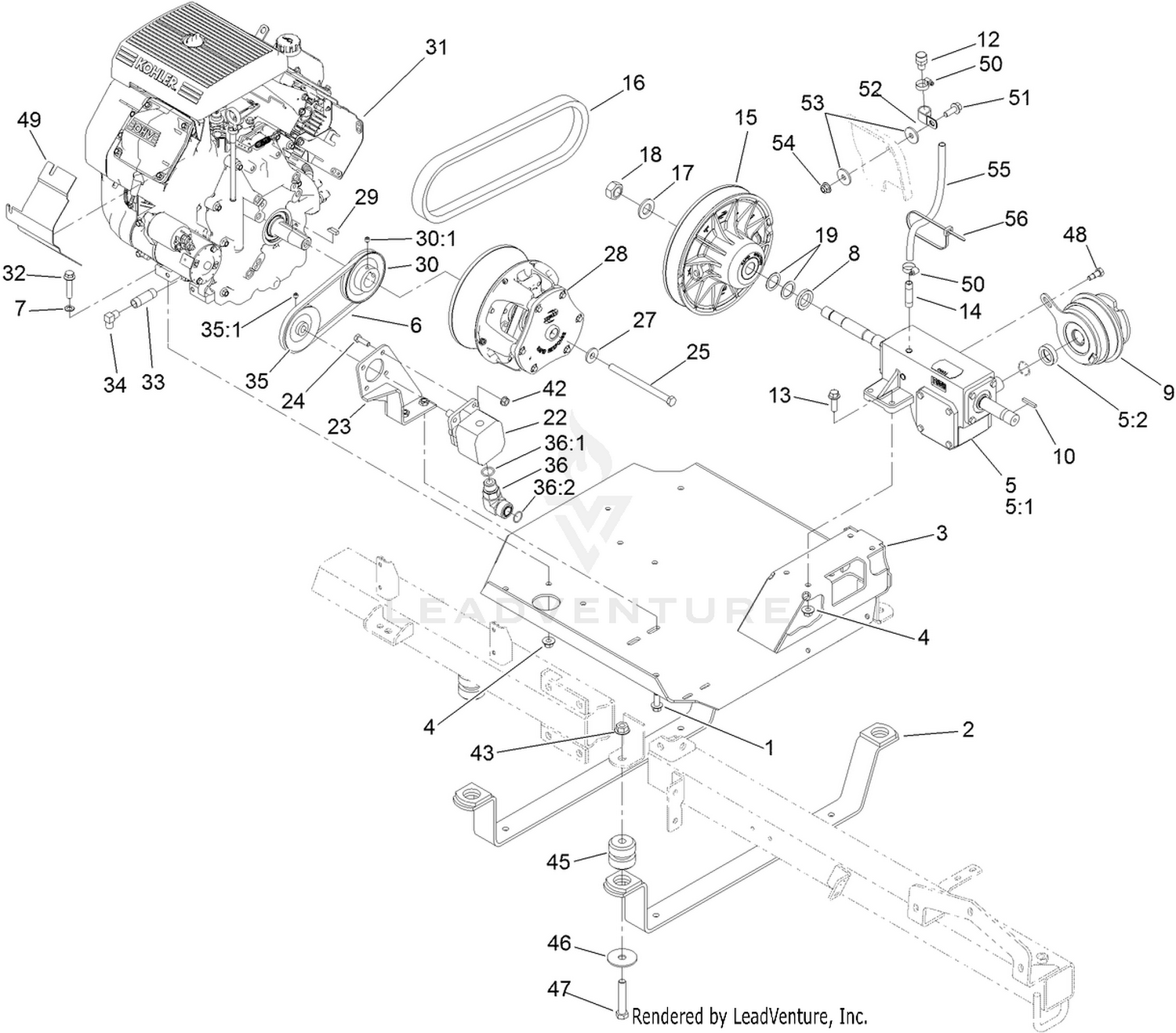

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 2 |
100-8377-03 |
STRAP-SUPPORT, ENGINE Price: $174.36 |
| 3 |
117-5890-03 |
ENGINE SUPPORT ASM Price: Call Us |
| 4 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 5 |
119-6043 |
PUMP DRIVE GEAR BOX ASM Price: $2,540.94 |
| 6 |
100-8372 |
BELT-STEERING Price: $37.65 |
| 7 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 8 |
100-8390 |
SPACER Price: $8.55 |
| 9 |
100-8290 |
CLUTCH-ELECTRIC, PUMP (DRIVE) Price: $996.45 |
| 10 |
92-0049 |
KEY-SQUARE Price: $2.72 |
| 12 |
100-6931 |
BREATHER Price: $44.36 |
| 13 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 14 |
104-8766 |
NIPPLE Price: $8.29 |
| 15 |
119-6011 |
SECONDARY CLUTCH ASM Price: $617.73 |
| 16 |
117-5896 |
BELT-CVT Price: $50.07 |
| 17 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 18 |
120-8512 |
NUT-HEX Price: $2.99 |
| 19 |
74-1810 |
WASHER Price: $0.39 |
| 22 |
100-8302 |
STEERING PUMP ASM Price: $795.93 |
| 23 |
100-8368-03 |
BRACKET-PUMP, STEERING Price: $143.02 |
| 24 |
322-4 |
SCREW-HH Price: $0.35 |
| 25 |
119-6033 |
SCREW-HH Price: $14.52 |
| 27 |
119-6034 |
WASHER-STEPPED Price: $8.41 |
| 28 |
119-6010 |
PRIMARY CLUTCH ASM Price: $924.22 |
| 29 |
100-8260 |
KEY-SHAFT Price: $19.58 |
| 30 |
117-5870 |
PULLEY Price: $70.12 |
| 32 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 33 |
92-3647 |
NIPPLE Price: $5.67 |
| 34 |
95023 |
ELBOW-90 DEG Price: $12.65 |
| 35 |
100-8371 |
PULLEY-PUMP Price: $94.08 |
| 36 |
340-16 |
FITTING-HYD, 90 DEG Price: $54.23 |
| 42 |
32128-20 |
NUT-HF Price: $0.99 |
| 43 |
32128-49 |
NUT-HHF Price: $1.04 |
| 45 |
106-7865 |
MOUNT-ENGINE Price: $31.17 |
| 46 |
41985 |
WASHER-SPECIAL Price: $3.39 |
| 47 |
325-11 |
SCREW-HH Price: $1.93 |
| 48 |
59-5400 |
BOLT-SHOULDER Price: $50.99 |
| 49 |
112-7993-03 |
BAFFLE-ENGINE Price: $46.11 |
| 50 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 51 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 52 |
2412-4 |
CLAMP-R Price: $4.22 |
| 53 |
63-8410 |
WASHER Price: $1.76 |
| 54 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 55 |
98-2708 |
HOSE-VENT This part replaces 99-1356. Price: $33.78 |
