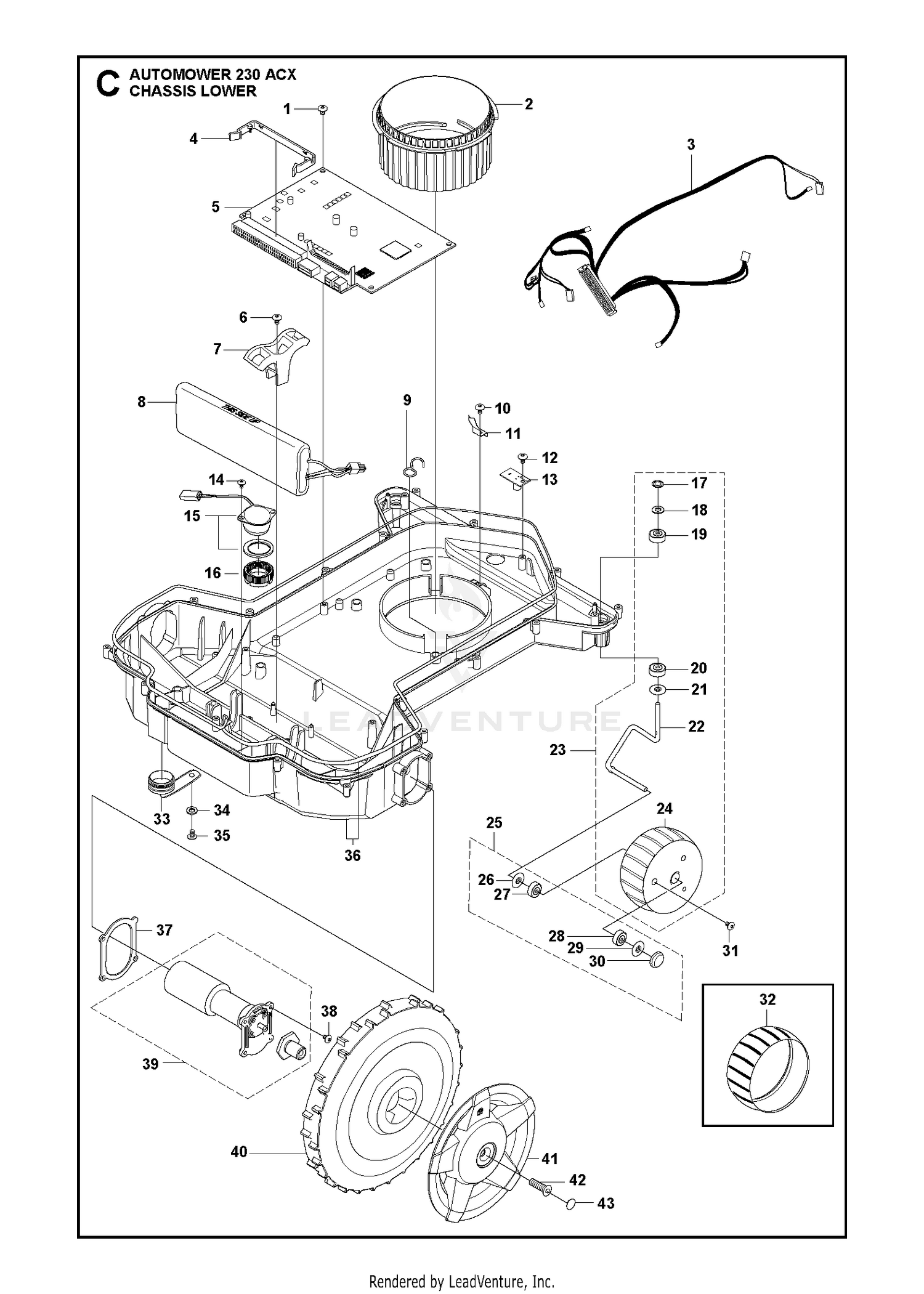

CHASSIS LOWER
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 575543310 | SCREW SILVER 10MM Price: $2.99 |
| 2 | 535122102 | CUTTING HEIGHT NUT Price: $22.99 |
| 3 | 501003703 | MAIN WIRING Price: $109.99 |
| 4 | 578056101 | CLIP MAIN CONNECTOR Price: $4.99 |
| 4 | 578056102 | CLIP MAIN CONNECTOR 50PCS Price: $109.99 |
| 5 | 578786101 | Price: Call Us |
| 6 | 575543314 | SCREW 14MM Price: $3.99 |
| 7 | 544907801 | BRACKET Price: $8.99 |
| 8 | 535120902 | BATTERY This part replaces 535120901. Price: $149.99 |
| 9 | 535139601 | HOLDER Price: $4.99 |
| 10 | 535130314 | SCREW Price: $2.99 |
| 11 | 535122401 | SPRING Price: $3.99 |
| 12 | 575543310 | SCREW SILVER 10MM Price: $2.99 |
| 13 | 592852201 | Circuits This part replaces 578788801. Price: $17.99 |
| 14 | 502859601 | SCREW Price: $1.99 |
| 15 | 501004201 | HORN Price: $49.99 |
| 16 | 579521201 | NUT BUZZER Price: $4.99 |
| 31 | 575507601 | SCREW ITXPANT PT 40 THREAD Price: $2.99 |
| 32 | 574449801 | WHEEL RUBBER TYRE Price: $7.99 |
| 33 | 574427402 | PLUG SERVICE PLUG Price: $5.99 |
| 34 | 734113741 | WASHER Price: $3.99 |
| 35 | 575543314 | SCREW 14MM Price: $3.99 |
| 36 | 575943901 | CHASSIS LOWER Price: $54.99 |
| 37 | 535139203 | GASKET Price: $5.99 |
| 38 | 575543316 | SCREW Price: $3.99 |
| 40 | 544905804 | REAR WHEEL ASSY 230 This part replaces 544905803. Price: $27.99 |
| 41 | 544905102 | HUB CAP Price: $12.99 |
| 42 | 535139401 | SCREW Price: $3.99 |
