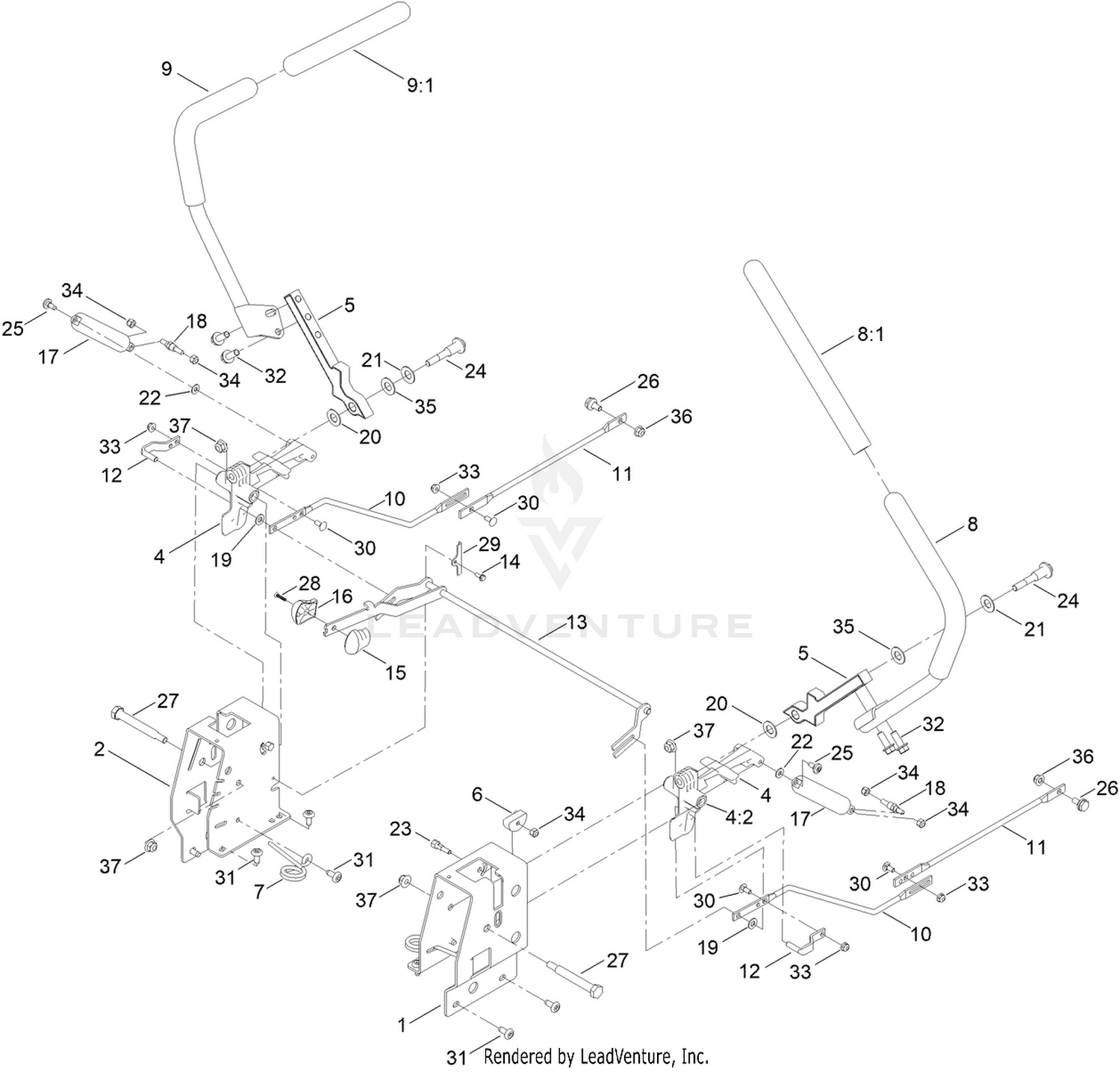

Motion Control Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 138-7598-03 | PLATE-CONTROL BOX, LH Price: $20.69 |
| 2 | 138-7599-03 | PLATE-CONTROL BOX, RH Price: $20.69 |
| 4 | 119-3470 | ACTUATOR ARM ASM Price: $17.50 |
| 5 | 133-9299-05 | ARM-CONTROL Price: $32.13 |
| 6 | 139-5803 | ECCENTRIC Price: $0.66 |
| 7 | 138-7539 | SPRING-TORSION Price: $4.25 |
| 8 | 133-7055 | HANDLE-CONTROL, LH Price: $41.09 |
| 9 | 133-7057 | HANDLE-CONTROL, RH Price: $41.09 |
| 10 | 138-2580 | ROD-HYDRO, FRONT Price: $6.14 |
| 11 | 138-2579 | ROD-HYDRO, REAR Price: $5.02 |
| 12 | 121-1753 | PIN-ROD, HYDRO Price: $3.52 |
| 13 | 138-9750 | SPEED CONTROL ASM Price: $22.37 |
| 14 | 138-7541 | PLATE-RETAINER Price: $1.00 |
| 15 | 132-9368 | KNOB-RH Price: $1.63 |
| 16 | 132-9369 | KNOB-LH Price: $1.63 |
| 17 | 132-6853 | DAMPER-NON CAVITATING Price: $22.72 |
| 18 | 138-7215 | STUD-DAMPER Price: $1.46 |
| 19 | 93-6079 | SPACER-NYLON Price: $0.25 |
| 20 | 120-2273 | WASHER-NYLON Price: $1.54 |
| 21 | 119-8925 | WASHER-BELLEVILLE Price: $0.80 |
| 22 | 119-8952 | WASHER Price: $0.77 |
| 23 | 139-5811 | BOLT-PIVOT, ECCENTRIC Price: $1.10 |
| 24 | 139-2556 | BOLT-PIVOT Price: $2.83 |
| 25 | 120-7950 | SCREW-SHOULDER Price: $1.79 |
| 26 | 37-8771 | BOLT-SHOULDER,HFH Price: $3.59 |
| 27 | 115-5099 | BOLT-PIVOT Price: $2.32 |
| 28 | 94-4496 | SCREW-PPH Price: $0.89 |
| 29 | 139-1713 | SCREW-TAPTITE Price: $0.21 |
| 30 | 100-1445 | BOLT-CARR Price: $0.33 |
| 31 | 138-9753 | SCREW Price: $0.39 |
| 32 | 139-2597 | SCREW-HHF Price: $0.67 |
| 33 | 137-3005 | NUT-HF Price: $0.34 |
| 34 | 137-3088 | NUT-HEX Price: $0.39 |
| 35 | 117-1240 | WASHER Price: $1.27 |
| 36 | 119-4041 | NUT-HF Price: $0.48 |
