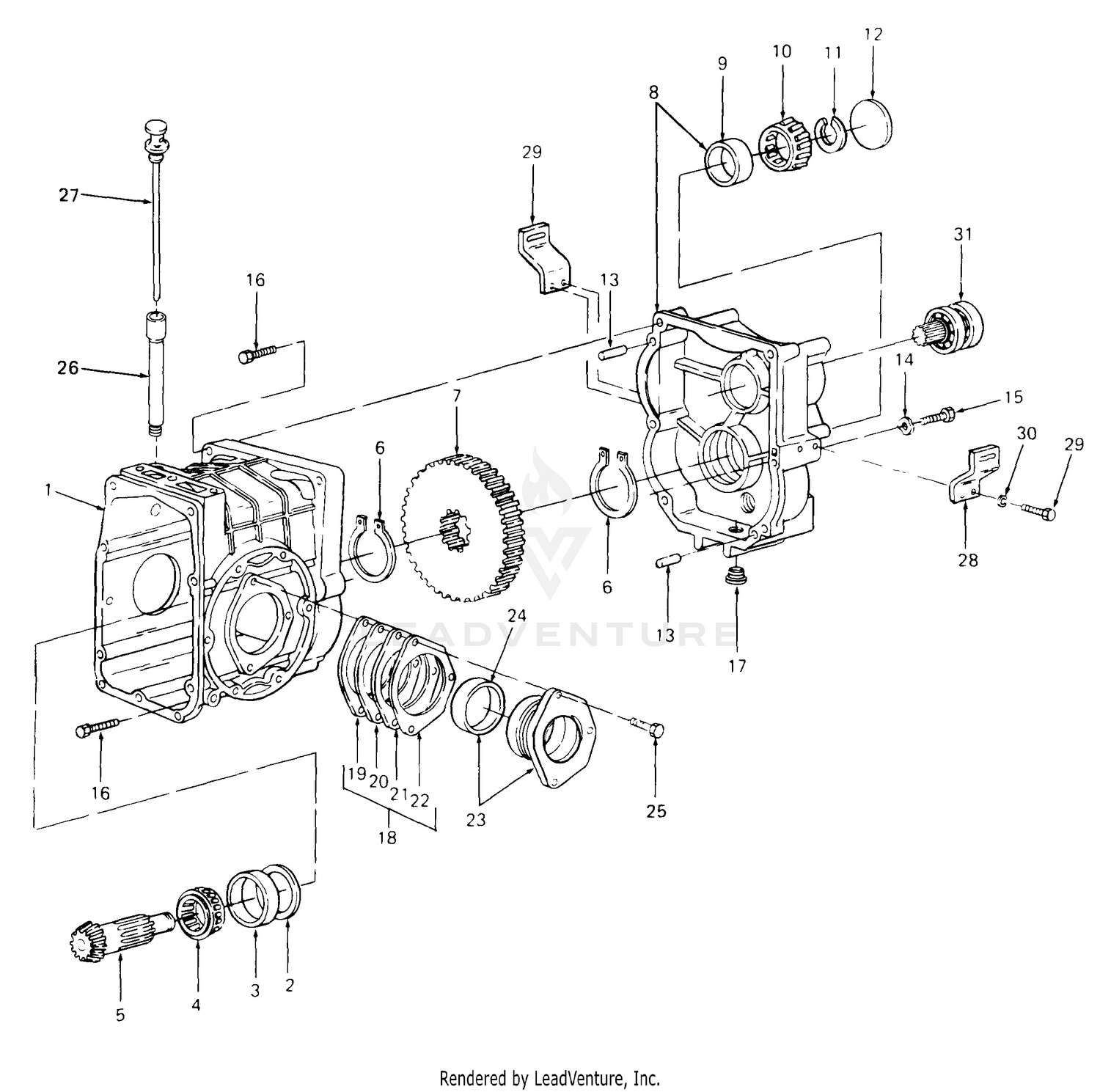

| Ref | Part Number | Description |
|---|
| BPR4ES |
TBD |
Price: Call Us |
| 2 |
32152-10 |
LOCKNUT Price: $0.81 |
| 3 |
52-1990 |
PISTON-CYLINDER, HYD Price: $124.18 |
| 3 |
741-0370 |
ROLLER BEARING CUP Not Available Price: |
| 4 |
741-0371 |
BEARING ASSY, PINION SHAFT REAR CONE Not Available Price: |
| 6 |
716-0138 |
RETAINING RING Not Available Price: |
| 7 |
717-3327 |
GEAR-71 TOOTH Not Available Price: |
| 9 |
741-04548 |
Cup Bearing This part replaces 741-0372. Price: $7.72 |
| 10 |
741-04549 |
Cone Bearing This part replaces 741-0373. Price: $17.28 |
| 11 |
717-3127 |
RETAINER RING Not Available Price: |
| 12 |
726-0216 |
EXPANSION PLUG Not Available Price: |
| 13 |
715-0146 |
DOWEL PIN 3/8 x 5/8 Not Available Price: |
| 13 |
76-1850 |
CLEVIS Price: $206.83 |
| 14 |
3220-6 |
NUT-JAM Price: $1.25 |
| 14 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 15 |
710-3229 |
SCREW 7/16-14X2.7 Not Available Price: |
| 16 |
710-3238 |
SCREW 7/16-14X1.75 GR5 Not Available Price: |
| 19 |
717-3097 |
SHIM, BEARING RETAINER, .004 Not Available Price: |
| 20 |
717-3098 |
SHIM, BEARING RETAINER, .007 Not Available Price: |
| 21 |
717-3099 |
Shim, Bearing Retainer, .014 Thk Price: $32.65 |
| 22 |
717-3100 |
SHIM .028 Not Available Price: |
| 24 |
941-3039 |
ROLLER BEARING CUP This part replaces 741-3039. Price: $19.61 |
| 25 |
710-3118 |
Bolt, Hex Patch, 3/8-16 X 1.0 Lg GR5 Price: $4.77 |
| 27 |
727-3095 |
DIPSTICK Not Available Price: |
| 28 |
703-2050-0637 |
TRANSMISSION SUPPORT (POWDER BLACK) Not Available This part replaces 703-2050. Price: |
| 29 |
710-3094A |
Hex Screw, 3/8-16, 1.00, Gr8 This part replaces 710-3094. Price: $3.64 |
| 30 |
736-0169 |
Washer, Lock, 3/8 Price: $3.33 |
| 110137046 |
TBD |
Price: Call Us |
| 110137049 |
TBD |
Price: Call Us |
| 490197005 |
TBD |
Price: Call Us |
| 490657007 |
TBD |
Price: Call Us |
| 532125907 |
532125907 |
BELT Price: $34.99 |
| 532196103 |
587686701 |
BELT.DECK.DRIVE.BELT.54 This part replaces 532196103. Price: $54.99 |
