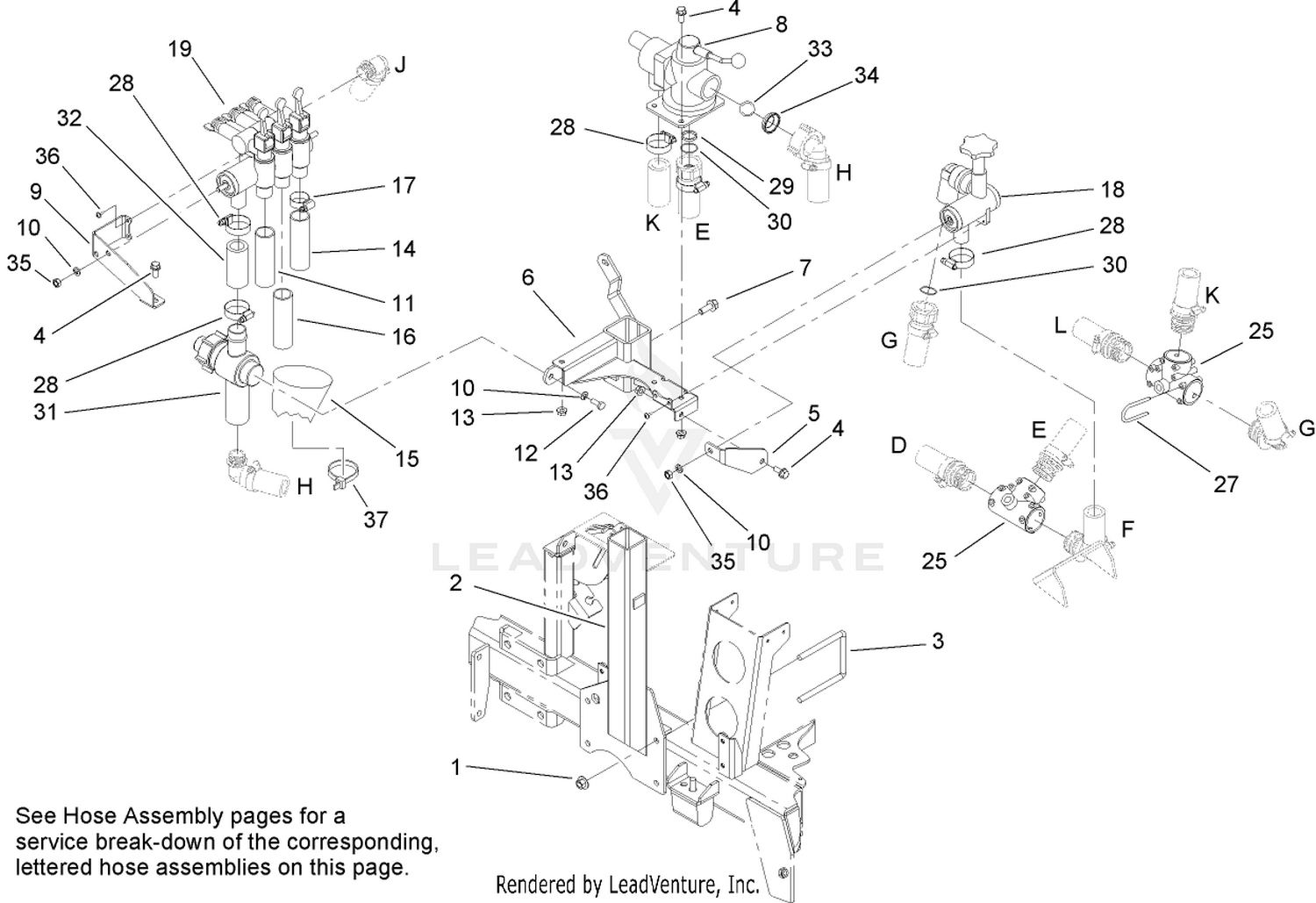

Manual Control Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 2 | 104-8828-03 | VALVE-POST Price: $235.80 |
| 3 | 100-7067 | U-BOLT (4 INCH) Price: $6.51 |
| 4 | 3234-5 | SCREW-HHF Price: $0.42 |
| 5 | 104-8838-03 | BRACKET-VALVE, RATE Price: $35.82 |
| 6 | 104-8833-03 | MOUNT-VALVE Price: $223.30 |
| 7 | 3234-11 | SCREW-HHF Price: $1.23 |
| 8 | 106-4881 | MAIN ON/OFF VALVE ASM Price: $290.48 |
| 9 | 104-8839-03 | BRACKET-VALVE, SECTION Price: $50.01 |
| 10 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 11 | 108-3740 | HOSE-BOOM, RH Price: $73.89 |
| 12 | 33114-020 | SCREW-HH Price: $0.28 |
| 13 | 32128-20 | NUT-HF Price: $0.99 |
| 14 | 108-3741 | HOSE-BOOM, LH Price: $89.33 |
| 15 | 106-6713 | COVER-LINES, STEERING Price: $97.01 |
| 16 | 108-3739 | CENTER BOOM HOSE Price: $76.41 |
| 17 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 18 | 106-4883 | PRESSURE CONTROL VALVE ASM Price: $236.76 |
| 19 | 106-4882 | BOOM VALVE ASM Price: $684.09 |
| 25 | 104-9041 | TEE Price: $65.38 |
| 27 | 100-6708 | FORK Price: $5.54 |
| 28 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 29 | 106-4897 | SUPPORT-O RING Price: $4.35 |
| 30 | 100-6655 | GASKET Price: $10.22 |
| 31 | 106-4884 | FLOW METER ASM Price: $878.30 |
| 32 | 104-8905 | HOSE-PRESSURE Price: $13.33 |
| 33 | 100-7000 | BALL-PLASTIC Price: $33.82 |
| 34 | 100-6999 | BUSHING Price: $10.45 |
| 35 | 100-6894 | NUT Price: $2.58 |
| 36 | 100-6916 | SCREW-PLASTIC Price: $0.95 |
