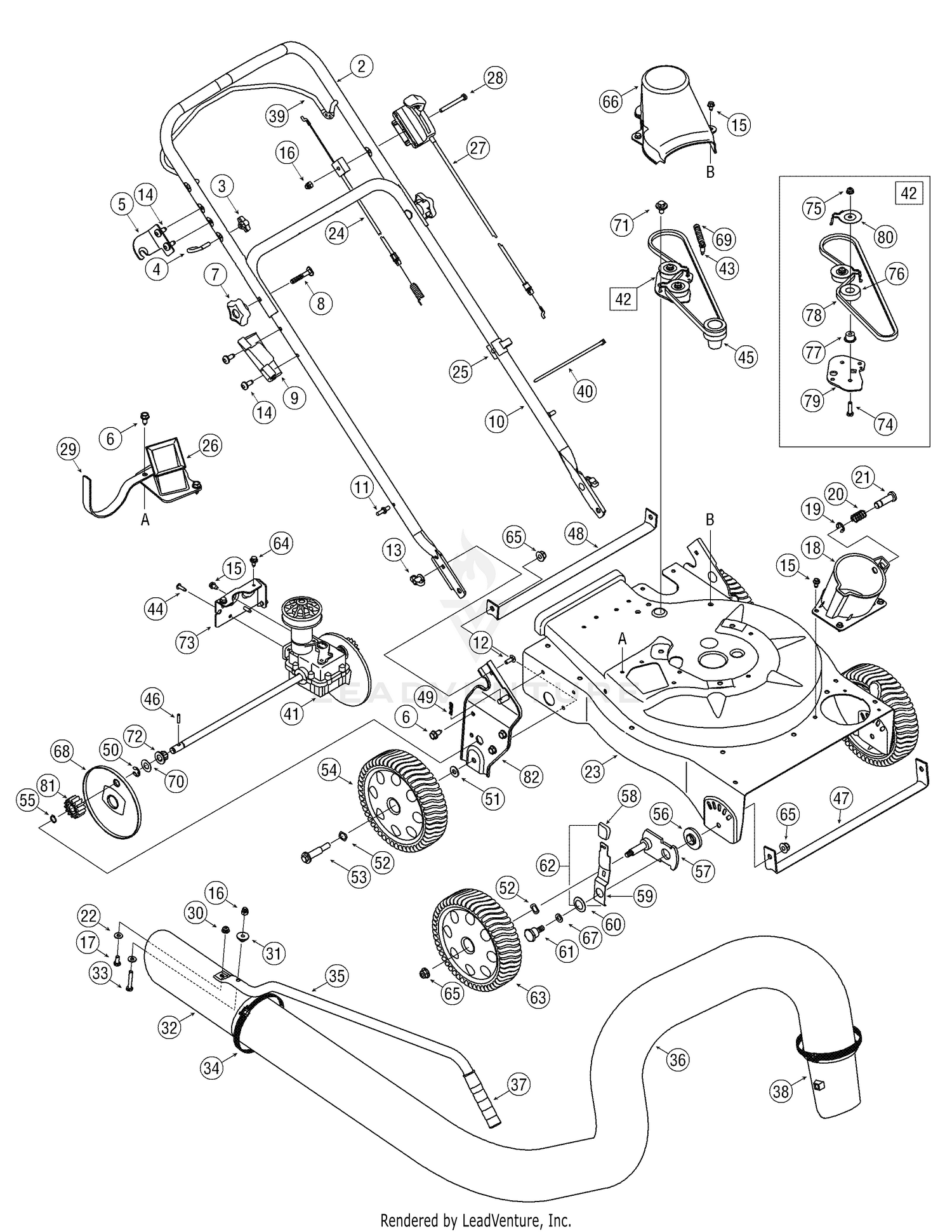

| Ref | Part Number | Description |
|---|
| 1 |
736-0451 |
Saddle Washer, .320 x.93 Price: $3.75 |
| 2 |
749-04163A |
UPPER GULLWING HANDLE This part replaces 749-04163. Price: $37.70 |
| 3 |
720-0279 |
Knob Price: $3.93 |
| 4 |
710-1205 |
Eye Bolt Price: $3.53 |
| 5 |
781-1056-0637 |
UPPER HANDLE BRACKET This part replaces 781-1056. Price: $21.30 |
| 6 |
710-0726 |
Hex Cap Screw 5/16-12 x.750 Price: $3.82 |
| 7 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 8 |
710-1174 |
Carriage Bolt Price: $6.28 |
| 9 |
731-04911 |
Nozzle Handle Clip Price: $10.05 |
| 10 |
749-04165-0637 |
LOWER HANDLE This part replaces 749-04165. Price: $38.11 |
| 11 |
711-1293 |
Studs Price: $4.21 |
| 12 |
710-0703 |
Carriage Screw 1/4-20 x.75 Price: $3.66 |
| 13 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 14 |
710-1611B |
TT Screw, 5/16-18 x .750 Price: $5.94 |
| 15 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
| 16 |
712-0442 |
Cap Lock Nut, 1/4-20 Price: $6.01 |
| 17 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 18 |
681-0195 |
Hose Base Adapter Assembly (Incl. Ref. #19-21) Price: $35.89 |
| 19 |
916-0104 |
E-Ring This part replaces 716-0104. Price: $3.37 |
| 20 |
932-3035 |
Compression Spring This part replaces 732-3035. Price: $9.73 |
| 21 |
711-1571 |
Clevis Pin Price: $7.58 |
| 22 |
736-3020 |
Flat Washer.271 ID x.630 OD Price: $5.94 |
| 23 |
781-04069 |
UPPER FLAIL HOUSING Not Available Price: |
| 24 |
746P04156 |
CONTROL CABLE This part replaces 746-04156. Price: $37.56 |
| 25 |
731-1820 |
Cable Guide Price: $7.65 |
| 26 |
681-0122 |
Chipper Chute Assembly Price: $70.49 |
| 27 |
946-04155A |
Speed Control Cable This part replaces 746-04155. Price: $80.81 |
| 28 |
710-1122 |
Hex Screw, 1/4-20 x 2.50 Price: $6.32 |
| 29 |
781-1058-0637 |
HANGAR BRACKET Not Available This part replaces 781-1058. Price: |
| 30 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 31 |
748-0457 |
Spacer Price: $4.74 |
| 32 |
731-2478A |
HOSE NOZZLE 3.875 This part replaces 731-2478. Price: $68.17 |
| 33 |
710-3288 |
Hex Cap Screw 1/4-20 x 2.625 Price: $5.94 |
| 34 |
723-0295 |
Adjustment Clamp Price: $9.43 |
| 35 |
749-1270A |
NOZZLE HANDLE This part replaces 749-1270. Price: $61.84 |
| 36 |
764-0648A |
VACUUM HOSE 4.0 x 75.0 This part replaces 764-0648. Price: $144.99 |
| 37 |
07071 |
Handle Grip Price: $10.82 |
| 38 |
731-2292 |
Hose Adapter Price: $35.59 |
| 39 |
747-04305B |
GULLWING DRIVE BAIL- RED This part replaces 747-04305. Price: $35.40 |
| 40 |
725-0157 |
Cable Tie Price: $3.46 |
| 41 |
918-04175 |
TRANSAXLE Not Available This part replaces 618-04175. Price: |
| 42 |
N/A |
IDLER ASSEMBLY (COMPONENTS) Not Available |
| 43 |
710-1650 |
Shoulder Screw, #12-24 x .30 x .46 Price: $4.22 |
| 44 |
710-1220 |
Screw, #12-16 x .750 Price: $3.96 |
| 45 |
911-04245 |
Impeller Hub This part replaces 711-04245. Price: $62.73 |
| 46 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
| 47 |
781-04082-0637 |
Front Wheel Support Brace This part replaces 781-04082. Price: $25.01 |
| 48 |
781-04081-0637 |
Rear Wheel Support Brace This part replaces 781-04081. Price: $24.01 |
| 49 |
714-0104 |
Cotter Pin Price: $3.90 |
| 50 |
916-0104 |
E-Ring This part replaces 716-0104. Price: $3.37 |
| 51 |
736-0258 |
Flat Washer, .385 x 1.00 x .135 Price: $3.93 |
| 52 |
736-0232 |
Wave Washer.531 ID x.781 OD Price: $4.02 |
| 53 |
738-1015 |
Shoulder Screw 3/8-16 Price: $9.41 |
| 54 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018. Price: $16.82 |
| 55 |
716-0865 |
Snap Ring Price: $3.86 |
| 56 |
741-0751 |
Height Adjustment Bearing Price: $7.50 |
| 57 |
987-02094 |
Pivot Arm This part replaces 687-02094. Price: $25.54 |
| 58 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 59 |
732-1026 |
Spring Lever Price: $5.77 |
| 60 |
736-0741 |
Bell Washer.760 ID x.25 OD Price: $3.99 |
| 61 |
738-1172 |
Shoulder Screw,.750 x.500 Price: $5.01 |
| 62 |
687-02051 |
Height Lever Assembly (Incl. Ref. #58-59) Price: $8.27 |
| 63 |
753-08091 |
WHEEL KIT IDLE 8 x 2 This part replaces 734-04033. Price: $40.81 |
| 64 |
710-1652 |
Screw, 1/4-20 x .625 Price: $3.86 |
| 65 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 66 |
731-04879 |
Belt Cover Price: $25.11 |
| 67 |
736-0314 |
Thrust Washer.375 ID x.70 OD Price: $6.01 |
| 68 |
731-04643 |
Wheel Dust Cover This part replaces 731-2522. Price: $7.28 |
| 69 |
732-04217 |
Extension Spring,.375 x 2.95 Price: $9.16 |
| 70 |
736-0369 |
Flat Washer,.508ID x1.00OD x.020 Price: $3.90 |
| 71 |
738-0930 |
Shoulder Screw,.560 x.165 Price: $6.07 |
| 72 |
741-04108 |
Drive Axle Bushing Price: $5.20 |
| 73 |
781-04078-0637 |
Transmission Mounting Bracket This part replaces 781-04078. Price: $15.07 |
| 74 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 75 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 76 |
941-0600 |
BALL BEARING This part replaces 741-0124. Price: $23.34 |
| 77 |
750-1050 |
Flange Spacer,.260 x.659 x.517 Price: $4.56 |
| 78 |
954-0369 |
BELT 3/8 x 32.2" This part replaces 754-0369. Price: $26.71 |
| 79 |
781-04077-0637 |
IDLER BRACKET This part replaces 781-04077. Price: $12.34 |
| 80 |
782-7598 |
Belt Keeper Price: $13.38 |
| 81 |
717-1762 |
Spur Gear - RH Price: $12.11 |
| 82 |
981-0156A |
Handle Bracket Ass’y RH This part replaces 681-0156A. Price: $32.19 |
