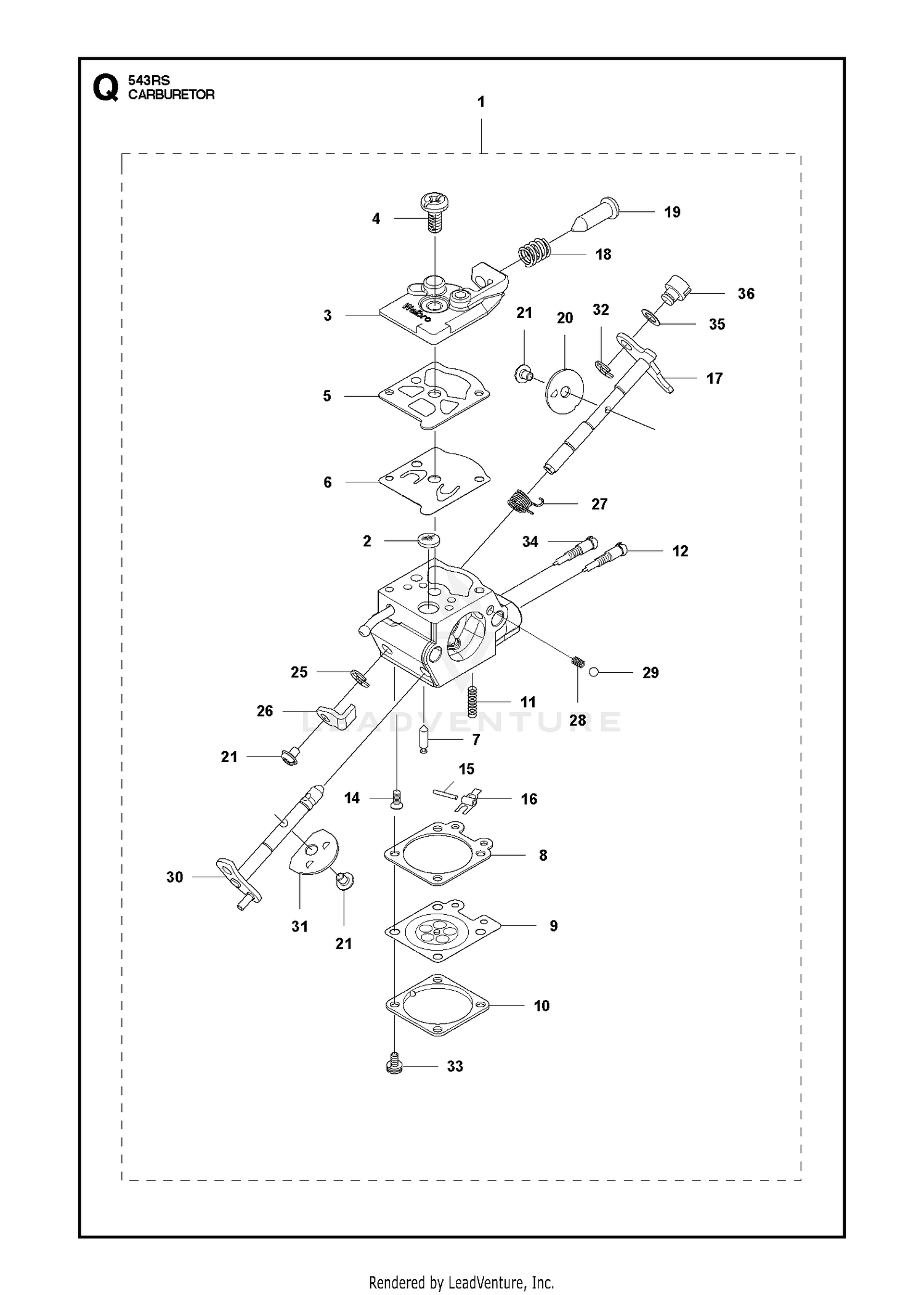

CARBURETOR
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-4617 | H-FRAME ASM Price: $845.69 |
| 2 | 10-8110 | WASHER-THRUST Price: $1.09 |
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 3 | 110-4249 | SHAFT ASM Price: $134.79 |
| 3 | 577806901 | COVER Price: $11.99 |
| 4 | 323-7 | SCREW-HH Price: $0.65 |
| 4 | 520976301 | SCREW Price: $2.99 |
| 5 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 6 | 3231-4 | SCREW-CARR Price: $3.59 |
| 6 | 504130807 | PUMP DIAPHRAGM This part replaces 502213601. Price: $27.99 |
| 7 | 105-1025 | END-ROD Price: $111.53 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 8 | 3220-17 | NUT-JAM, LH Price: $6.25 |
| 8 | 516972101 | GASKET Price: $4.99 |
| 9 | 110-4251 | LINK-UPPER Price: $49.70 |
| 9 | 577807001 | DIAPHRAGM Price: $14.99 |
| 10 | 3220-7 | NUT-JAM Price: $4.09 |
| 10 | 514189201 | COVER Price: $6.99 |
| 11 | 2411-40 | END-ROD Price: $195.97 |
| 11 | 578895401 | SPRING Price: $3.99 |
| 12 | 3253-9 | WASHER-LOCK Price: $1.02 |
| 12 | 582147901 | NEEDS DESCRIPTION Price: Call Us |
| 13 | 3219-7 | NUT-HEX Price: $1.53 |
| 14 | 110-4287-03 | CUP-SPRING Price: $29.01 |
| 14 | 577807101 | SCREW Price: $2.99 |
| 15 | 140-2566 | SPRING-COMPRESSION This part replaces 105-4183-01. Price: $77.30 |
| 16 | 115-2844 | DEPTH CONTROL ASM This part replaces 110-4502. Price: $660.73 |
| 16 | 577807201 | LEVER Price: $1.99 |
| 17 | 578895501 | SHAFT ASSY THROTTLE Price: $11.99 |
| 17 | 93-6696 | DECAL-WARNING Price: $14.78 |
| 18 | 513593201 | SPRING Price: $4.99 |
| 19 | 577815701 | SCREW, IDLE Price: $8.99 |
| 20 | 501706901 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 520759801 | SCREW Price: $2.99 |
| 25 | 505056501 | E-RING Price: $3.99 |
| 26 | 577815801 | LEVER THROTTLE Price: $3.99 |
| 27 | 577815501 | SPRING Price: $3.99 |
| 28 | 514243301 | CHOKE SPRING Price: $5.99 |
| 29 | 514242601 | BALL Price: $5.99 |
| 30 | 593172101 | NEEDS DESCRIPTION Price: Call Us |
| 31 | 579367101 | VALVE CHOKE Price: $6.99 |
| 32 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 33 | 520978801 | SCREW ASSY Price: $2.99 |
| 34 | 582147801 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 516524201 | WASHER Price: $2.99 |
| 36 | 513400801 | SWIVEL Price: $11.99 |
