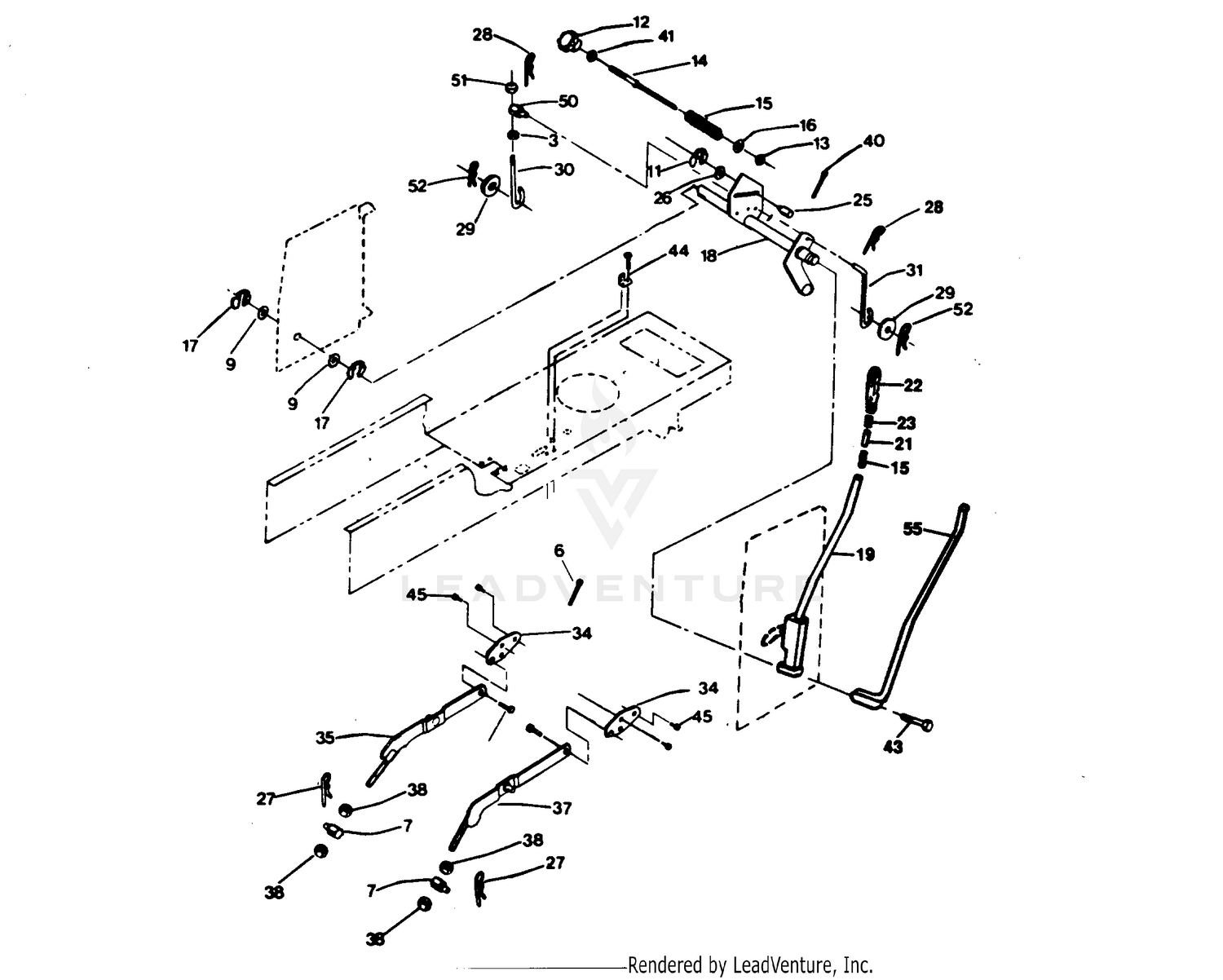

| Ref | Part Number | Description |
|---|
| 1 |
323-14 |
SCREW-HH Price: $1.34 |
| 1 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873710700. Price: $3.99 |
| 2 |
24-2690-01 |
CLAMP PLATE This part replaces 24-2690. Price: $48.58 |
| 3 |
24-2680-01 |
DISCONTINUED This part replaces 24-2680. Price: Call Us |
| 4 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
3217-7 |
NUT-HEX Price: $0.28 |
| 6 |
5-3505-01 |
PIN This part replaces 5-3505. Price: $74.63 |
| 7 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 7 |
532175689 |
TRUNNION This part replaces 532106308. Price: $2.99 |
| 8 |
23-9930 |
DISCONTINUED Price: Call Us |
| 9 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 9 |
819292016 |
Washer (AYP part number) Price: $3.99 |
| 10 |
3217-9 |
NUT-HH Price: $0.37 |
| 10 |
532106444 |
Bellcrank Bracket (AYP part number) Price: $2.38 |
| 11 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 11 |
812000037 |
Klip Ring (AYP part number) Price: $3.99 |
| 12 |
24-2660-01 |
OUTSIDE WEIGHT This part replaces 24-2660. Price: $479.27 |
| 12 |
532121891 |
Lift Adjust Handle (AYP part number) Price: $3.99 |
| 13 |
325-4 |
SCREW-HH Price: $0.95 |
| 13 |
532110807 |
Special Nut (AYP part number) Price: $3.99 |
| 14 |
24-2630-01 |
STOP WA This part replaces 24-2630. Price: $123.09 |
| 14 |
532110729 |
Lift Adjust Rod (AYP part number) Price: $18.99 |
| 15 |
25-1350 |
PIN-PLAIN Price: $174.74 |
| 15 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 16 |
24-2670-01 |
INSIDE WEIGHT This part replaces 24-2670. Price: $244.62 |
| 16 |
819131016 |
Washer (AYP part number) Price: $3.99 |
| 17 |
812000022 |
E-Ring (AYP part number) Price: $3.99 |
| 18 |
532121000 |
Lift Shaft (AYP part number) Price: $119.99 |
| 20 |
873680600 |
Crownlock Nut Price: $1.99 |
| 21 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 22 |
532109413 |
Handle Grip (AYP part number) Price: $2.99 |
| 23 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 25 |
532110810 |
Stop Depth Trunnion Price: $14.99 |
| 26 |
819151216 |
Washer (AYP part number) Price: Call Us |
| 27 |
532009135 |
Spring Retainer (AYP part number) Price: $2.99 |
| 28 |
532124670 |
Spring Retainer (AYP part number) Price: $5.99 |
| 29 |
532052160 |
Washer (AYP part number) This part replaces 819171516. Price: $3.99 |
| 30 |
532110448 |
Adjust Link Lift (AYP part number) Price: $7.99 |
| 31 |
532110029 |
Lift Link (AYP part number) Price: $3.45 |
| 32 |
872140606 |
Carriage Bolt 3/8-16 x 3/4 (AYP part number) Price: $3.99 |
| 34 |
532105864 |
Suspension Bracket (AYP part number) Price: $2.38 |
| 35 |
532121599 |
L.H. Arm Suspension (AYP part number) Price: $21.14 |
| 37 |
532121598 |
R.H. Arm Suspension (AYP part number) Price: $14.99 |
| 38 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873220800. Price: $1.99 |
| 40 |
876020308 |
Cotter Pin (AYP part number) Price: $1.99 |
| 41 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 43 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874780624. Price: $3.99 |
| 44 |
532108236 |
Switch Bracket (AYP part number) Price: $2.99 |
| 45 |
817021008 |
Tap Hex Screw (AYP part number) Price: $1.99 |
| 50 |
532110447 |
Lift Trunnion (AYP part number) Price: $9.99 |
| 51 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $3.99 |
| 52 |
532004921 |
Retainer Spring (AYP part number) Price: $3.99 |
| 53 |
532110739 |
Spring Washer (AYP part number) Price: $2.99 |
| 54 |
873680600 |
LOCKNUT This part replaces 873980600. Price: $1.99 |
