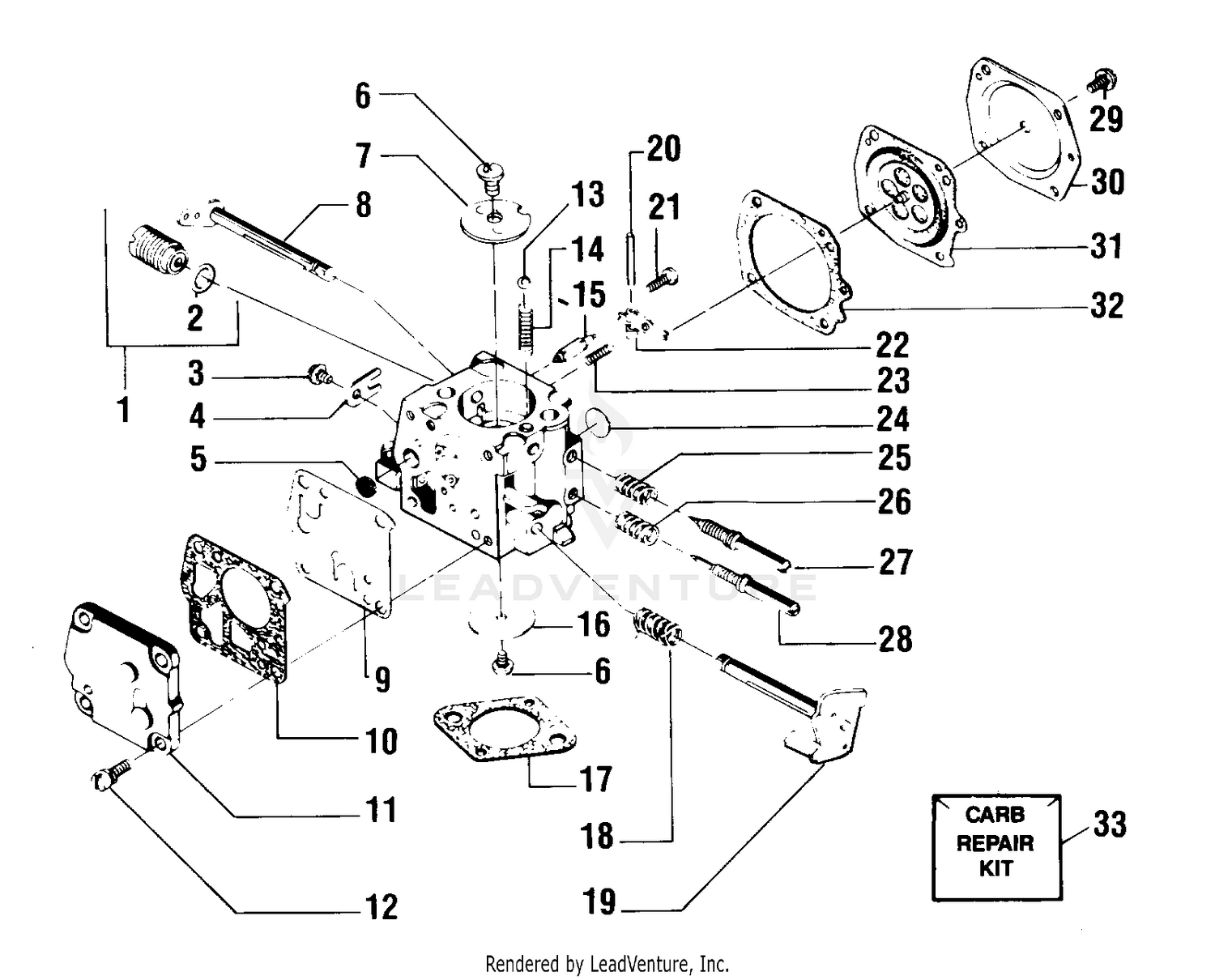

| Ref | Part Number | Description |
|---|
| 1 |
530034112 |
Governor Valve Assembly (Incl. #2) Price: $3.33 |
| 2 |
221-251 |
Engine-Recoil Price: Call Us |
| 2 |
530034024 |
Gasket - Governor Valve Price: $3.33 |
| 2A |
221-252 |
Engine-Electric Price: Call Us |
| 3 |
5-1315 |
DISCONTINUED Price: Call Us |
| 3 |
530003784 |
Screw - Throttle Shaft Clip Retainer Price: $3.33 |
| 4 |
3-7934 |
DISCONTINUED Price: Call Us |
| 4 |
530003783 |
Clip - Throttle Shaft Price: $3.33 |
| 5 |
5-1336 |
KEY-SQUARE Price: $8.92 |
| 5 |
530003780 |
Inlet Screen Price: $3.33 |
| 6 |
3-7935 |
DISCONTINUED Price: Call Us |
| 6 |
530003784 |
Shutter Screw & Lockwasher Price: $3.33 |
| 7 |
3-8388 |
WASHER Price: $24.32 |
| 7 |
530034107 |
Choke Shutter Price: $3.33 |
| 8 |
3273-29 |
SCREW-HSFH Price: $20.62 |
| 8 |
530034106 |
Choke Shaft & Lever Price: $3.33 |
| 9 |
3290-163 |
Locknut Price: Call Us |
| 9 |
530003771 |
Fuel Pump Diaphragm Price: $3.33 |
| 10 |
2811-5 |
DISCONTINUED Price: Call Us |
| 10 |
530003772 |
Fuel Pump Gasket Price: $1.99 |
| 11 |
2212-10 |
MUFFLER Price: $159.52 |
| 11 |
530003773 |
Fuel Pump Cover Price: $3.33 |
| 12 |
3290-237 |
SLOT HD SCREW Price: $0.25 |
| 12 |
530003774 |
Screw and Lockwasher - Fuel Pump Cover Retainer Price: $3.33 |
| 13 |
2412-21 |
DISCONTINUED Price: Call Us |
| 13 |
530003765 |
Choke Friction Ball Price: $3.33 |
| 14 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 14 |
530003424 |
Choke Friction Spring Price: $3.33 |
| 15 |
3-7941 |
Bracket-Gas Tank Price: Call Us |
| 15 |
530003779 |
Needle - Inlet Price: $2.28 |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 16 |
530003416 |
Throttle Shutter Price: $3.33 |
| 17 |
323-4 |
SCREW-HH Price: $1.02 |
| 17 |
530019082 |
Gasket Price: $1.72 |
| 18 |
530034103 |
Spring - Throttle Shaft Return Price: $3.33 |
| 19 |
530034102 |
Throttle Shaft & Lever Price: $3.33 |
| 20 |
321-2 |
SCREW-HH Price: $2.79 |
| 20 |
530003777 |
Pin - Inlet Pinion Price: $5.99 |
| 21 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 21 |
530003778 |
Screw - Inlet Pinion Pin Retainer Price: $3.33 |
| 22 |
3-8001 |
Wire Price: Call Us |
| 22 |
530003776 |
Lever - Inlet Control Price: $3.33 |
| 23 |
3-7434 |
Wire Price: Call Us |
| 23 |
530003727 |
Spring - Inlet Tension Price: $3.33 |
| 24 |
3-8323 |
Bracket Price: Call Us |
| 24 |
530003764 |
Plug - Body Channel Welch (Large) Price: $3.33 |
| 25 |
530034109 |
Spring - High Speed Mixture Spring (Blue) Price: $3.33 |
| 26 |
218-283 |
DISCONTINUED Price: Call Us |
| 26 |
530034108 |
Spring - Idle Mixture Screw (Yellow) Price: $3.33 |
| 27 |
3-8006 |
DISCONTINUED Price: Call Us |
| 27 |
530034101 |
HIGH SPEED SCREW Price: $9.99 |
| 28 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 28 |
530034099 |
Screw - Idle Mixture Price: $9.99 |
| 29 |
3-7998 |
Wire Price: Call Us |
| 29 |
530003717 |
Screw & Lockwasher - Diaphragm Price: $1.99 |
| 30 |
003770 |
Cover - Diaphragm (Dana part number) Price: Call Us |
| 30 |
3-7996 |
Wire Price: Call Us |
| 31 |
3-7995 |
Wire Price: Call Us |
| 31 |
530003769 |
Diaphragm Price: $3.33 |
| 32 |
530003768 |
Gasket - Diaphragm Price: $1.99 |
| 35 |
10-7160 |
WIRE ASM This part replaces 3-7994. Price: $57.74 |
| 36 |
321-3 |
SCREW-HH Price: $0.28 |
| 37 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
3217-5 |
NUT-HEX Price: $0.25 |
| 40 |
321-10 |
SCREW-HH Price: $1.29 |
| 41 |
32153-4 |
NUT-HEX, SIDE DEFORM This part replaces 32146-8. Price: $0.75 |
| 535034101 |
DRIVE |
WHEEL Price: $3.33 535034101 |
