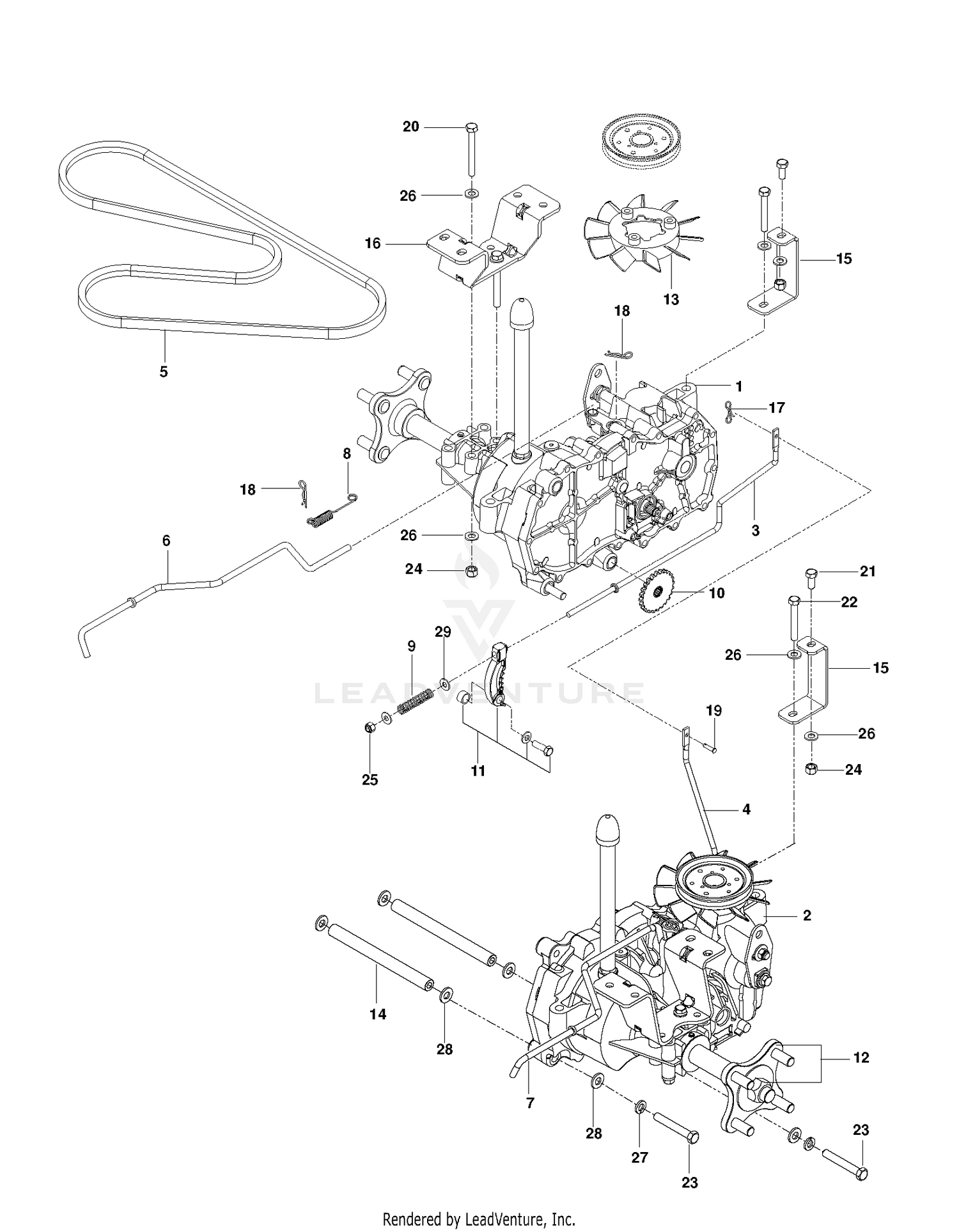

| Ref | Part Number | Description |
|---|
| 1 |
210281 |
Clip-Cable Price: Call Us |
| 1 |
510375601 |
HG_EZT, LT Price: $899.99 |
| 2 |
47_584_02 |
Module-Ignition Price: Call Us |
| 2 |
510375602 |
HG_EZT, RT Price: $899.99 |
| 3 |
596930401 |
Links This part replaces 574030501. Price: $6.99 |
| 3 |
X-67-51 |
Screw Price: Call Us |
| 4 |
47_025_53 |
Flywheel Price: Call Us |
| 4 |
596930701 |
Links This part replaces 574030502. Price: $5.99 |
| 5 |
539110411 |
BELT, HYDRO PUMP Price: $27.99 |
| 5 |
X-46-3 |
Key-Woodruff Price: Call Us |
| 6 |
25_112_04 |
Spacer Price: Call Us |
| 6 |
585474402 |
Rods This part replaces 585474401. Price: $5.99 |
| 7 |
25_157_01 |
Fan Price: Call Us |
| 7 |
585474502 |
Rods This part replaces 585474501. Price: $5.99 |
| 8 |
25_086_21 |
Screw-Hex Wash. Hd. Price: Call Us |
| 8 |
586665101 |
SPRING.ROD.BYPASS.EZT Price: $3.99 |
| 9 |
25_086_24 |
Screw-H.C. Price: Call Us |
| 9 |
596299801 |
Springs This part replaces 539110342. Price: $2.99 |
| 10 |
52_468_15 |
Washer-Flat Price: Call Us |
| 10 |
539120080 |
HG_DISC COG BRAKE 51635 Price: $29.99 |
| 11 |
539120079 |
HG_KIT BRAKE ARM (EZT) Price: $32.99 |
| 11 |
X-67-51 |
Screw Price: Call Us |
| 12 |
237878 |
Stator Price: Call Us |
| 12 |
575507001 |
HG_KIT, HYDRO-GEAR HUB Price: $279.99 |
| 13 |
41_155_03 |
Connector Price: Call Us |
| 13 |
539120785 |
HG_HYDRO FAN 51365 Price: $29.99 |
| 14 |
593852803 |
Spacers This part replaces 510184101. Price: $11.99 |
| 14 |
X-132-6 |
Screw Price: Call Us |
| 15 |
235_173 |
Clip Price: Call Us |
| 15 |
580806502 |
SUPPORT.FRONT.TRANS.PNTX431 Price: $5.99 |
| 16 |
580806602 |
BRACKET.EZT.MOUNT.REAR.PNTX431 Price: $14.99 |
| 16 |
X-728-1 |
Clip Price: Call Us |
| 17 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 17 |
X-67-59 |
Screw-Hex Hd Price: Call Us |
| 18 |
2313202 |
Plug-Spark Price: Call Us |
| 18 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 19 |
25_755_03 |
Kit-Rectifier/Regulator (Incl. Ref. #2) Price: Call Us |
| 19 |
587115301 |
PIN.CLEVIS.3/16X.475 Price: $3.99 |
| 20 |
596218601 |
Bolts This part replaces 874780544. Price: $3.99 |
| 20 |
X-132-5 |
Screw Price: Call Us |
| 21 |
236602 |
Connector Price: Call Us |
| 21 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 22 |
596434801 |
Bolts This part replaces 874780536. Price: $2.99 |
| 23 |
874780640 |
SCREW.HEX HEAD.38-16 X 2.5 Price: $3.99 |
| 24 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 25 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 26 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 27 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 28 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
