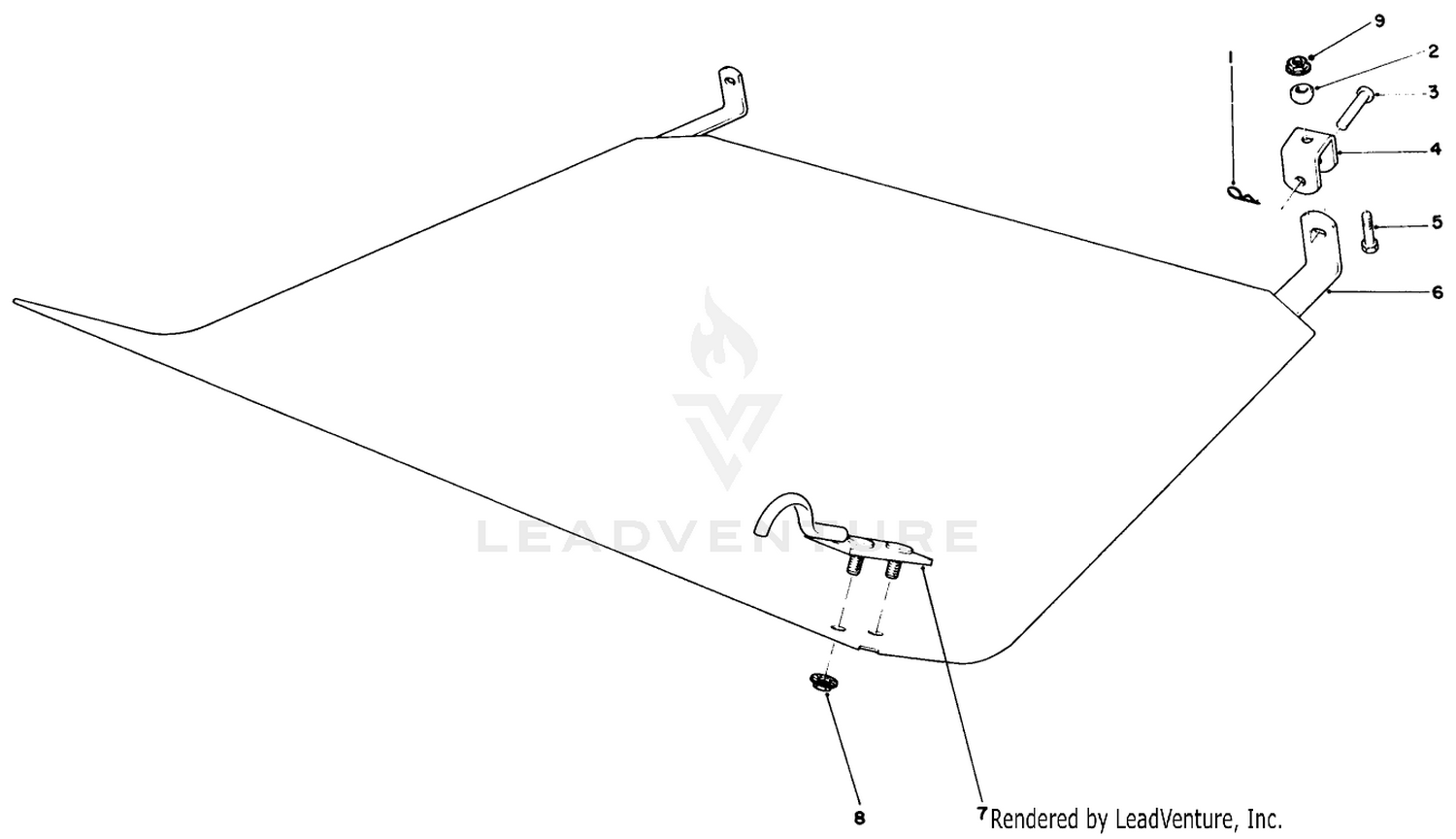

Traction Unit Belly Shield Assembly (for Use With Cutting Unit Model No. 30710 Only)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3290-322 | PIN-HAIR Price: $1.09 |
| 2 | 46-1600 | SPACER Price: $4.40 |
| 3 | 283-82 | PIN-CLEVIS This part replaces 283-23. Price: $3.94 |
| 4 | 39-1470-01 | HANGER-BELLY SHIELD This part replaces 39-1470. Price: $34.44 |
| 5 | 323-7 | SCREW-HH Price: $0.65 |
| 6 | 39-1410-01 | SHIELD BELLY ASM This part replaces 39-1410. Price: $705.69 |
| 7 | 39-1440-01 | BELLY SHIELD HOOK ASM This part replaces 39-1440. Price: $72.41 |
| 8 | 32128-20 | NUT-HF Price: $0.99 |
