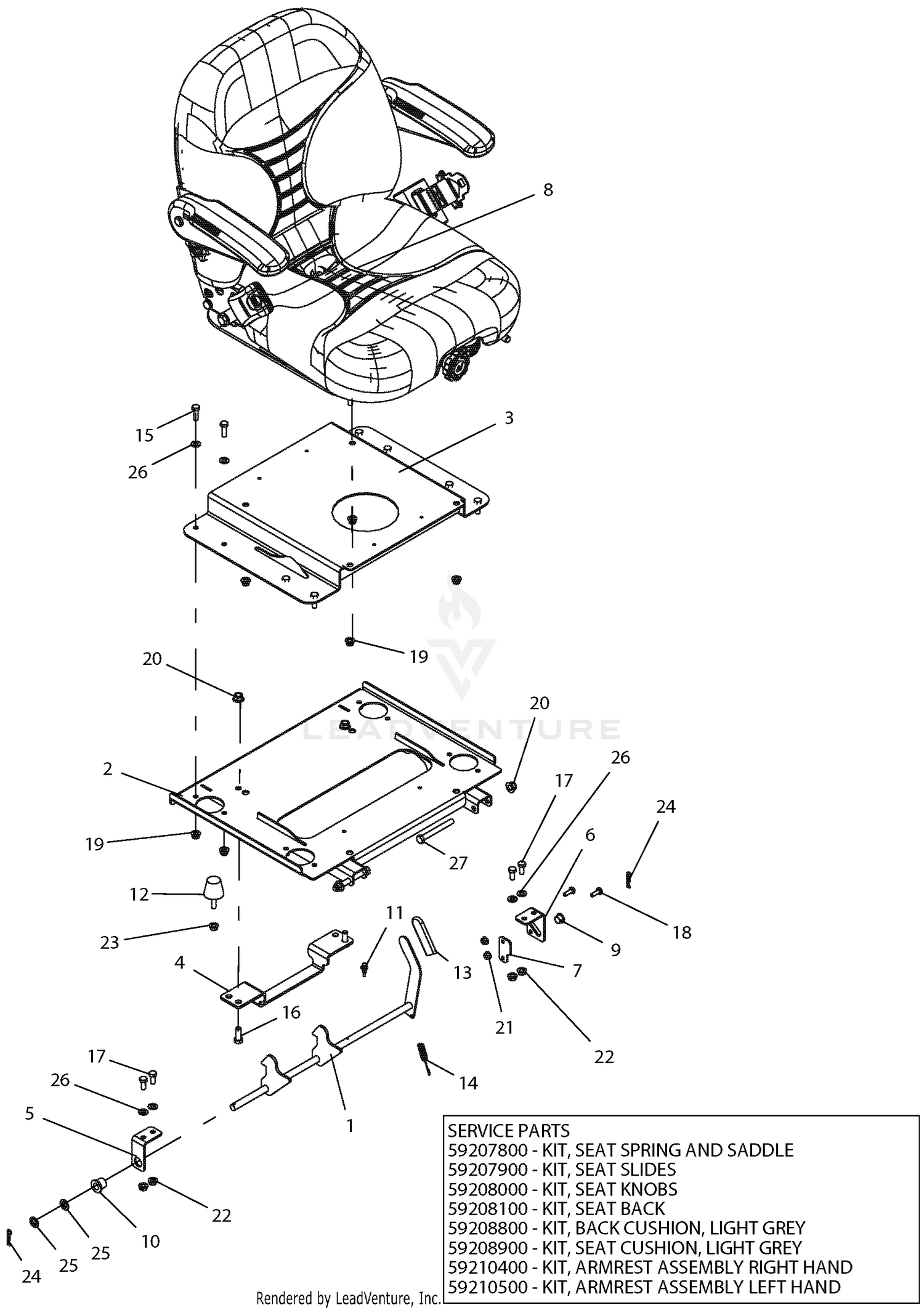

| Ref | Part Number | Description |
|---|
| 1 |
03991651 |
WMT-SEAT LATCH Price: $71.45 |
| 2 |
04383953 |
SEAT ISO MOUNTING WLDMT - RED Price: Call Us |
| 3 |
05254653 |
WLDMT, SEAT PLATE (RED) This part replaces 04671153. Price: $173.45 |
| 4 |
03991551 |
BRACKET - SEAT LATCH Price: $14.95 |
| 5 |
03991751 |
MOUNT-SEAT LATCH-RH Price: Call Us |
| 6 |
03991851 |
MOUNT-SEAT LATCH-LH Price: $5.45 |
| 7 |
03991951 |
RETAINER-SEAT LATCH Price: Call Us |
| 8 |
09680600 |
SEAT- FULL SUSPENSION This part replaces 04052900. Price: $744.95 |
| 9 |
05500026 |
BUSHING, POLYLINER-.50 SPLIT Price: Call Us |
| 10 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 12 |
07500218 |
BUMPER,STUD MOUNTED CONE SHAPE Price: $18.45 |
| 13 |
07539700 |
GRIP-VINYL-YELLOW .125X1.0X3.0 Price: $5.20 |
| 14 |
08321100 |
SG-TENS .043X.44X3.31 WLD 5.8 Price: $5.45 |
| 15 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 16 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 17 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 18 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 19 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 20 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 21 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 22 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 23 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 24 |
06700224 |
PIN, HAIR-INT .08X.38X1.42 ZCC This part replaces 06701000. Price: $2.45 |
| 25 |
06401114 |
WSHR, FLT .520X.827X.062 ZCC This part replaces 06441100. Price: $2.45 |
| 26 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
