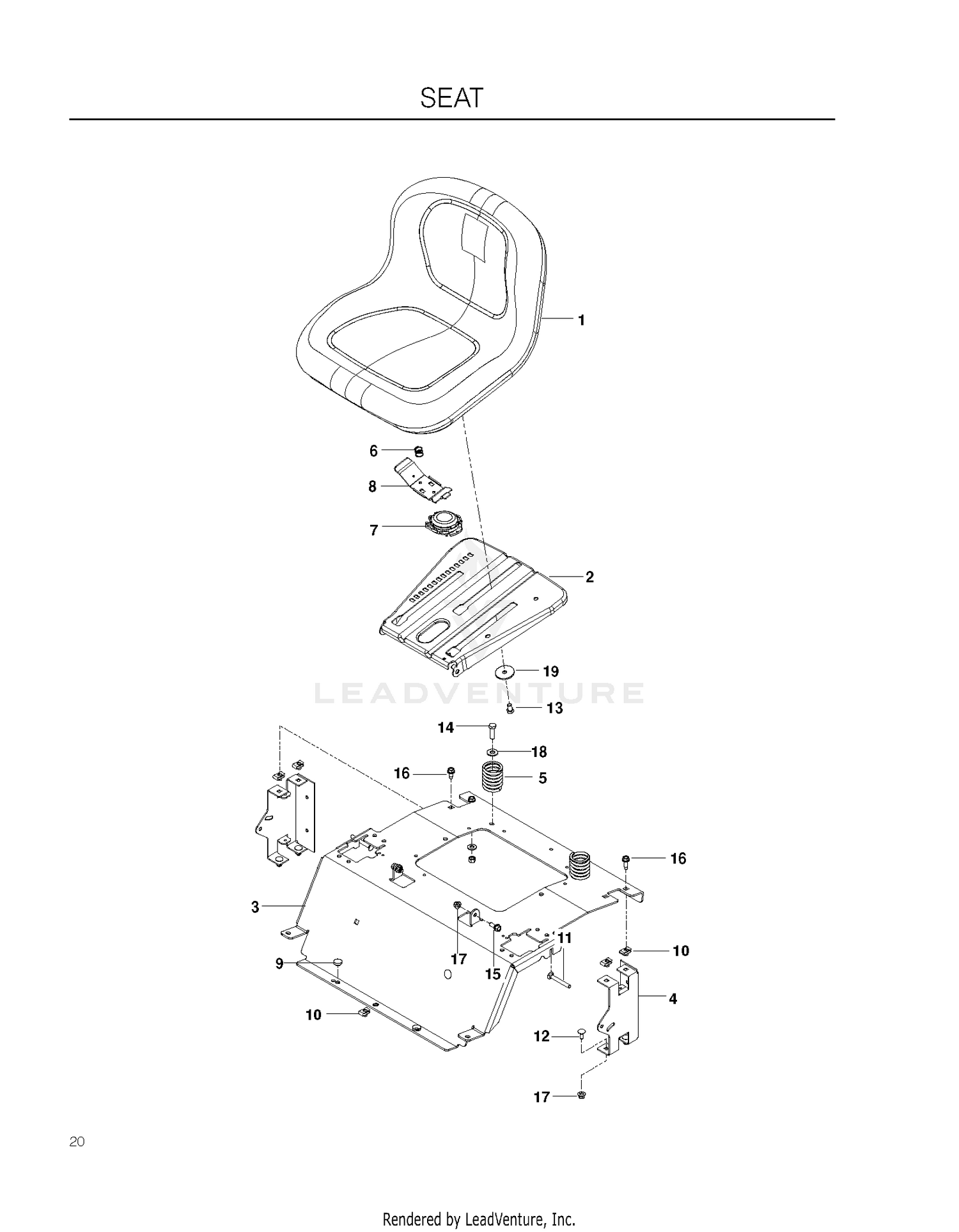

| Ref | Part Number | Description |
|---|
| 1 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX This part replaces 532424068. Price: $159.99 |
| 2 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 2 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 3 |
282-4 |
SHACKLE Price: $32.98 |
| 3 |
589761211 |
PLATE SEAT SUPPORT; RZ ORANGE This part replaces 577260503. Price: $109.99 |
| 4 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 4 |
580308202 |
SUPPORT REAR SEAT BLACK This part replaces 574522702. Price: $19.99 |
| 5 |
32151-48 |
E-RING Price: $1.41 |
| 5 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 539110300. Price: $5.99 |
| 6 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
539132140 |
SWITCH, SEAT N/C Price: $12.99 |
| 8 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 8 |
75-4690-03 |
R/H RR SPRING BRKT ASM This part replaces 75-4690. Price: $66.55 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 10 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 10 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 11 |
510422702 |
Screws This part replaces 510422701. Price: $1.99 |
| 11 |
75-6070 |
HOSE Price: $35.77 |
| 12 |
237-78 |
O-RING Price: $3.85 |
| 12 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 13 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 13 |
539108503 |
HCS 3/8-16 X 5/8 GR 5 ZD Price: $3.99 |
| 14 |
237-21 |
O-RING Price: $0.70 |
| 14 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 15 |
596240701 |
Bolts This part replaces 539110303. Price: $3.99 |
| 15 |
75-3810-01 |
BRACKET-ROLLER ASM This part replaces 75-3810. Price: $64.51 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 17 |
322-6 |
SCREW-HH Price: $0.45 |
| 17 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 18 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 18 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 19 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 20 |
75-5390 |
ROLLER Price: $56.69 |
| 21 |
75-6180 |
HOSE Price: $72.14 |
| 22 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 23 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 24 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 25 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 26 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 27 |
67-1750 |
BUSHING Price: $0.92 |
| 28 |
94-5596 |
ARM-LIFT, RH REAR Price: $649.36 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 32 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 33 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 34 |
75-4590-03 |
ROD-PIVOT ASM This part replaces 75-4590. Price: $64.42 |
| 35 |
325-4 |
SCREW-HH Price: $0.95 |
| 36 |
93-0142 |
BUSHING-STRAIGHT Price: $3.21 |
| 37 |
75-4520 |
SPRING-TORSION, RH Price: $25.31 |
| 38 |
256-287 |
BUSHING Price: $1.76 |
| 39 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 40 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 41 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010. Price: $199.32 |
| 42 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 43 |
92-9097 |
SCREW-HS Price: $1.56 |
| 44 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 45 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 46 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 47 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 48 |
108-4432 |
CYLINDER-HYD, LIFT This part replaces 93-9311. Price: $730.09 |
| 49 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 50 |
322-13 |
SCREW-HH Price: $2.73 |
| 51 |
94-4919-03 |
BRACKET-CLAMP, HOSE This part replaces 94-4919. Price: $19.76 |
| 52 |
93-0069-03 |
PIN-REAR This part replaces 93-0069. Price: $424.34 |
| 53 |
2412-93 |
CLAMP-R Price: $1.02 |
| 54 |
323-6 |
SCREW-HH Price: $0.66 |
| 55 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 56 |
93-3640 |
STOP-RH Price: $12.61 |
| 57 |
82-8170 |
CLAMP Price: $17.27 |
| 58 |
93-7960 |
SPACER Price: $5.67 |
| 59 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 60 |
85-4390 |
DISCONTINUED Price: Call Us |
| 61 |
94-5594 |
ARM-LIFT, LH REAR Price: $670.46 |
