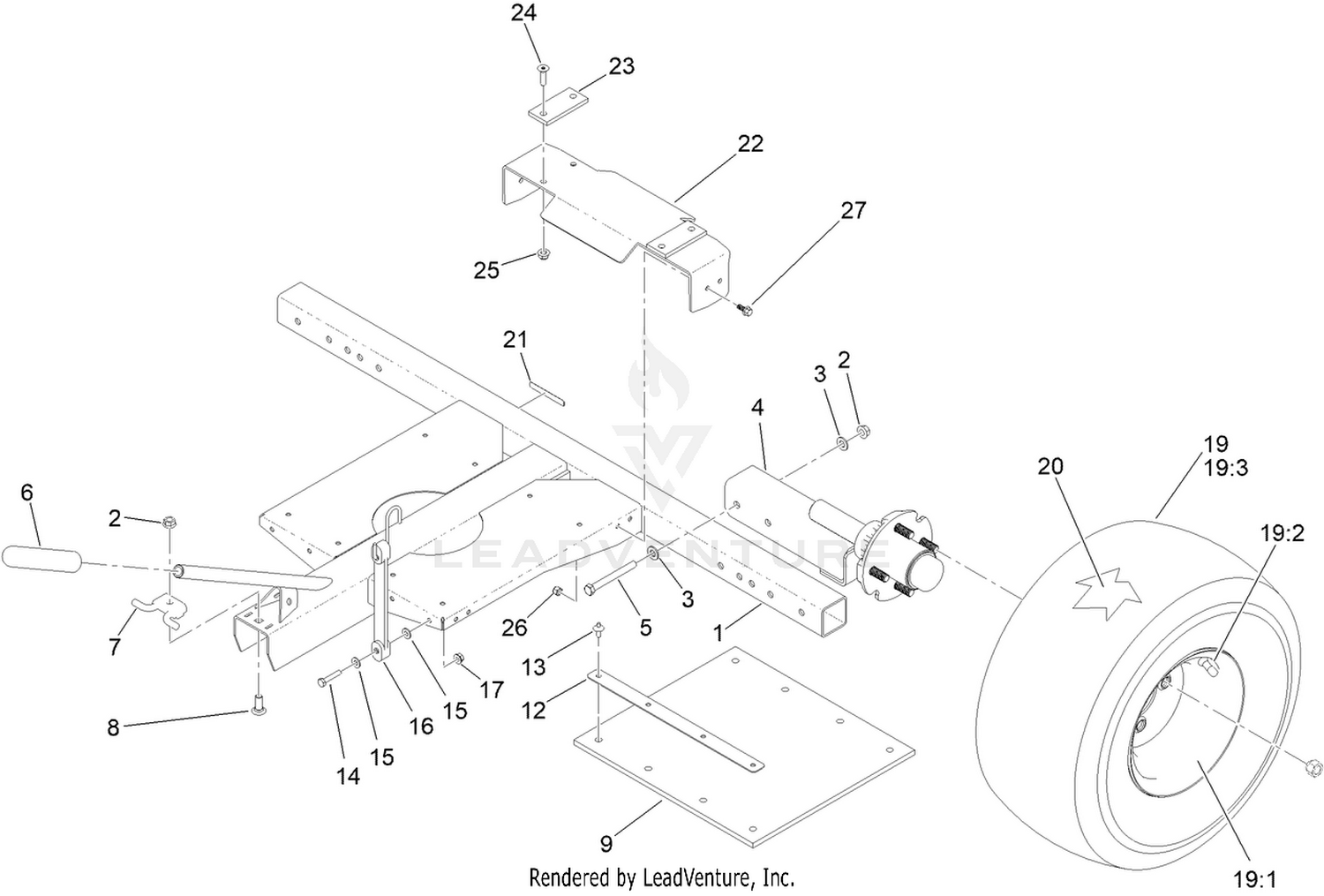

Main Trailer, Hub and Wheel Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-5366-01 | FRAME ASM Price: $402.50 |
| 2 | 32128-21 | NUT-HF Price: $0.39 |
| 3 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 4 | 117-1458 | HUB AND AXLE ASM Price: $325.18 |
| 5 | 323-15 | SCREW-HH Price: $1.53 |
| 6 | 105-1904 | GRIP-HANDLE Price: $8.99 |
| 7 | 145-4590 | LATCH Price: $18.62 |
| 8 | 3231-22 | SCREW-CARR Price: $0.72 |
| 9 | 132-9598 | MAT-ROLLER Price: $61.11 |
| 12 | 106-5384 | STRIP-PAD Price: $17.44 |
| 13 | 105-9626 | RIVET-DRIVE Price: $1.47 |
| 14 | 32-1140 | DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 15 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 16 | 106-8459 | BUNGEE Price: $5.12 |
| 17 | 32128-32 | NUT-HHF Price: $2.69 |
| 19 | 144-3664 | WHEEL-ASSEMBLY Price: $177.38 |
| 20 | 232-37 | TUBE Price: $31.26 |
| 21 | 133-8061 | DECAL-WARNING Price: $0.79 |
| 22 | 147-2289-01 | BRACKET-ROLLER, TP80 Price: $57.16 |
| 23 | 138-4452 | PAD-STOP, DECK Price: $2.98 |
| 24 | 133-4543 | SCREW Price: $5.61 |
| 25 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 26 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
