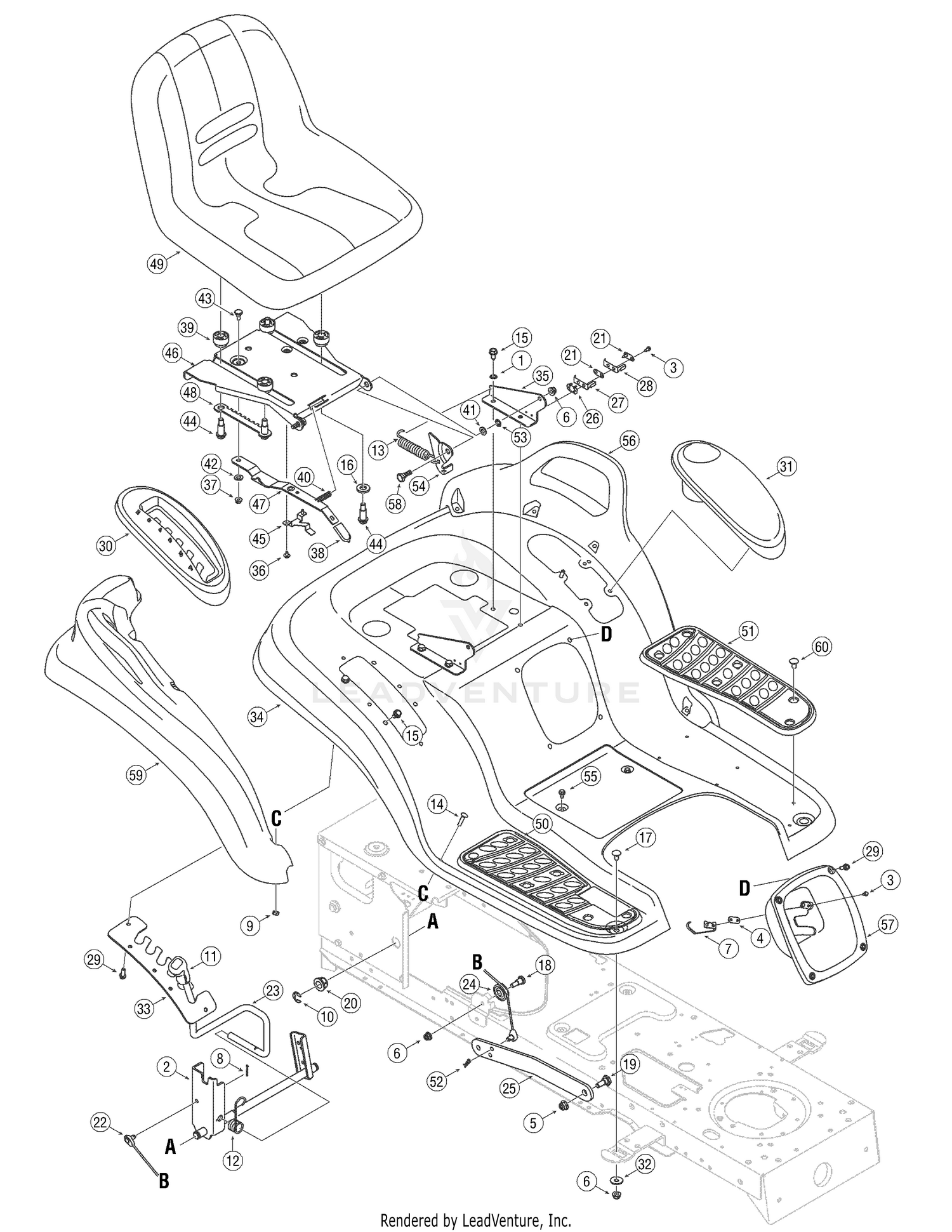

| Ref | Part Number | Description |
|---|
| 1 |
736-0607 |
Wash, Lock, 5/16 Price: $3.66 |
| 3 |
710-0227 |
Screw, AB #8-18 x.500 Price: $3.90 |
| 4 |
926-0320 |
Insulator Nut Plate This part replaces 726-0320. Price: $6.01 |
| 5 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 6 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 7 |
725-1713 |
REVERSE SAFETY SWITCH Not Available Price: |
| 8 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 9 |
712-0271 |
Nut, Sems, 1/4-20 Price: $3.78 |
| 10 |
716-0106A |
E-Ring Price: $4.42 |
| 11 |
720-0311 |
Handle Grip Price: $13.26 |
| 12 |
732-0874 |
Torsion Spring Price: $4.02 |
| 13 |
732-1184 |
Extension Spring,.84 x 4.6 Price: $10.23 |
| 14 |
710-0932A |
SCREW 1/4-20 x 1 GR5 This part replaces 710-0932. Price: $3.66 |
| 15 |
710-0604A |
Screw, TT, 5/16-18 x.625 Price: $3.96 |
| 16 |
736-3019 |
Flat Washer,.31 x 1.062 x.134 Price: $5.45 |
| 17 |
710-0451 |
Bolt, Carriage, 5/16-18 x.750 Price: $3.53 |
| 18 |
738-0138A |
Hex Cap Screw, 5/16-18 x.62 Price: $5.81 |
| 19 |
738-0380 |
Shoulder Screw, 3/8-16 Price: $7.34 |
| 20 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 21 |
726-0279 |
Plate, Insulator Price: $3.22 |
| 22 |
746-0968 |
Lift Cable, 16.16 Price: $18.10 |
| 23 |
747-04155 |
LIFT HANDLE Not Available Price: |
| 24 |
756-1154 |
Roller Pulley Price: $6.63 |
| 25 |
783-0678C |
Deck Lift Link This part replaces 783-0678A. Price: $21.13 |
| 26 |
726-0278 |
Plate, Insulator Boss Price: $5.95 |
| 27 |
725-1439 |
Switch, Inner, Seat Spring Price: $7.18 |
| 28 |
925-1303 |
Outer Seat SPring This part replaces 725-1303. Price: $5.58 |
| 29 |
710-0895 |
Self-tapping Screw, 1/4-15 x.75 Price: $5.82 |
| 30 |
731-06795 |
Cover, Lift Lever This part replaces 731-1990. Price: $21.39 |
| 31 |
731-1993A |
COVER-W/CUP HOLDER Not Available Price: |
| 32 |
736-3078 |
Flat Washer,.349 x 1.0 x.063 Price: $3.95 |
| 33 |
783-0677B |
LIFT ADJUSTMENT BRACKET Not Available Price: |
| 34 |
783-04331A |
FENDER-4 STY,2 SPD Not Available Price: |
| 35 |
783-1489C |
Seat Mounting Bracket This part replaces 783-1489B. Price: $17.99 |
| 36 |
710-1268 |
Screw, #10-16 x.375 Price: $3.90 |
| 37 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 38 |
720-0309A |
Seat Adjuster Grip Price: $8.22 |
| 39 |
731-04074 |
Spacer Price: $6.89 |
| 40 |
732-0499 |
Compression Spring,.41 x 1.5 Price: $8.24 |
| 41 |
736-0242 |
Washer, Bell,.340 x.872 x.060 Price: $3.75 |
| 42 |
736-0204 |
Flat Washer,.344 x.62 x.03 Price: $3.89 |
| 43 |
738-0137A |
Shoulder Screw,.340 x.285,1/4-20 Price: $9.83 |
| 44 |
738-0966A |
Shoulder Bolt,.50 x.925, 3/8-16 Price: $4.08 |
| 45 |
783-0611 |
Seat Stop Price: $9.14 |
| 46 |
783-0738D |
SEAT PIVOT BRACKET Not Available This part replaces 783-0738C. Price: |
| 47 |
783-0739A-0637 |
SEAT ADJUSTMENT LEVER Not Available This part replaces 783-0739A. Price: |
| 48 |
783-0753 |
Seat Adjustment Selector Price: $13.84 |
| 49 |
957-04010 |
HIGH BACK SEAT Not Available This part replaces 757-04010. Price: |
| 50 |
735-0656 |
FOOT PAD (RH) Not Available Price: |
| 51 |
735-0657 |
FOOT PAD (LH) Not Available Price: |
| 52 |
714-0111 |
Cotter Pin Price: $4.20 |
| 53 |
726-0201 |
Nut, Spd.,.3125 ID Price: $6.01 |
| 54 |
783-0209D |
Seat Lift Bracket Price: $14.21 |
| 55 |
710-0599 |
Screw, TT, 1/4-20 x 0.5 Price: $3.86 |
| 56 |
731-2619 |
FENDER FLARE (LH) Not Available Price: |
| 57 |
731-2480A |
Shift Lever Cover Price: $38.11 |
| 58 |
738-0296 |
Shoulder Screw,.437 x.286 Price: $3.93 |
| 59 |
731-2618 |
FENDER FLARE (RH) Not Available Price: |
