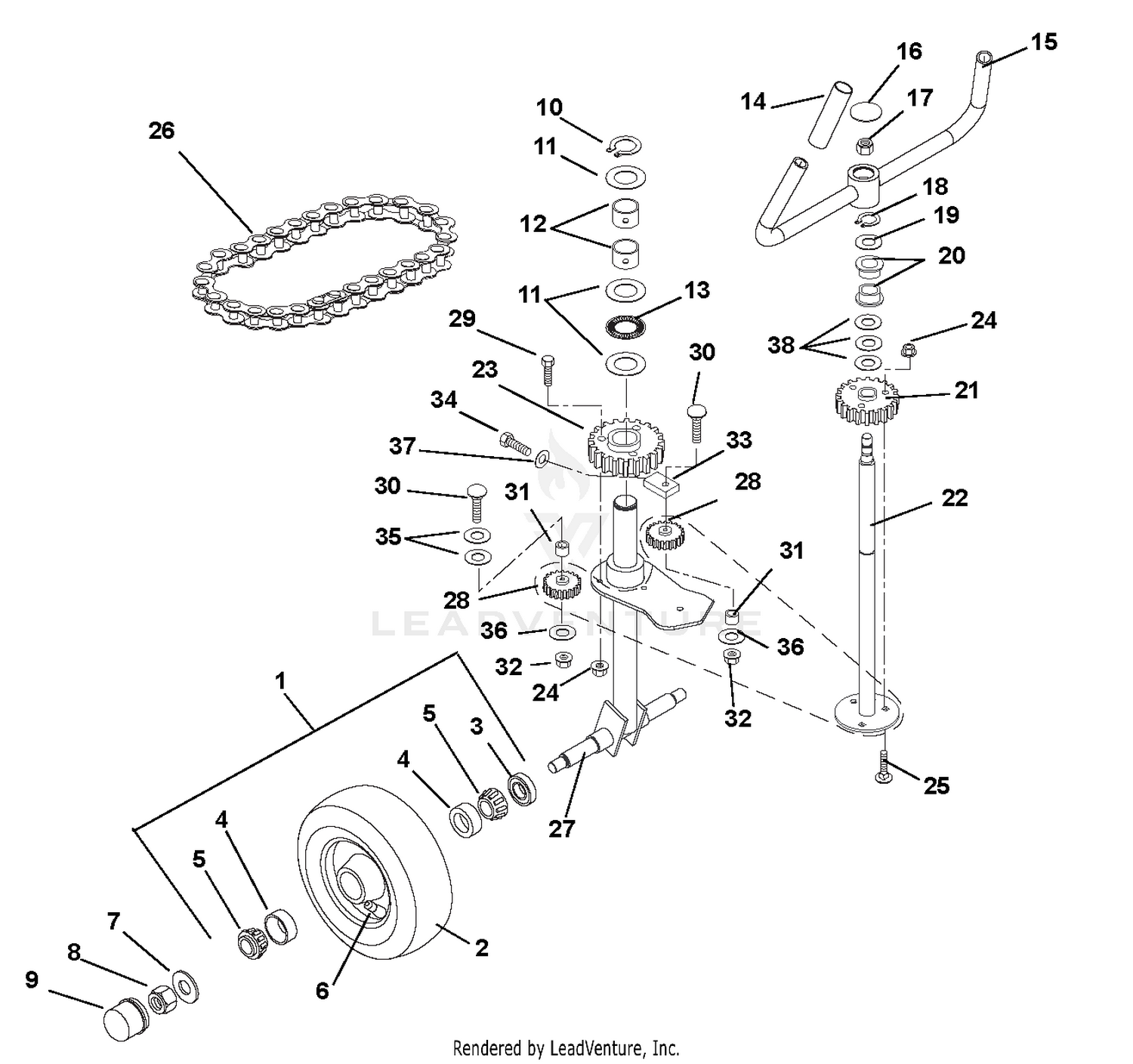

| Ref | Part Number | Description |
|---|
| 2 |
07100221 |
TIRE, 16X6.50-8 Price: $44.95 |
| 3 |
00092498 |
SEAL Price: Call Us |
| 4 |
05407000 |
BRG-CUP1.980X.420 Price: $16.45 |
| 5 |
05406900 |
BRG-CONE 1.0X.58 This part replaces 69000300. Price: $17.95 |
| 6 |
07520000 |
VALVE STEM ASS'Y Price: $2.45 |
| 7 |
06401140 |
WSHR-FL-STL 0.812X1.469X0.134 ZCC This part replaces 06439000. Price: $1.45 |
| 9 |
20655400 |
CAP,DUST Price: $9.45 |
| 10 |
05715500 |
RG-RTNG-EXT 1.500X1.38 Price: $5.45 |
| 11 |
06432200 |
WSHR-THRST 1.50X2.18X.063 Price: $12.95 |
| 12 |
05516500 |
BRG-1.000X1.135X1.002 Price: $38.45 |
| 13 |
05424700 |
BRG-N-THRUST; 1.50X2.187X.0781 Price: $17.95 |
| 14 |
04910200 |
GRIP Price: $9.45 |
| 15 |
04910151 |
WLDMT, HANDLEBAR Price: $154.95 |
| 16 |
07528400 |
HOLE PLUG 1.375 Price: $3.45 |
| 18 |
05707300 |
RG-RTNG-EXT 1.00X.078 Price: $2.95 |
| 19 |
06426500 |
WSHR-THRST 1.55X1.002X.093 Price: $14.95 |
| 20 |
05520100 |
BSHG-FLG1.020X1.385X.75X1.75NY Price: $10.45 |
| 21 |
00176700 |
SPROCKET, 23 TOOTH #40 Price: $155.20 |
| 22 |
04909700 |
WLDMT, STEERING SHAFT Price: $119.95 |
| 23 |
00176600 |
SPROCKET, 28 TOOTH #40 Price: $201.95 |
| 24 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 25 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC This part replaces 06212100. Price: $1.45 |
| 27 |
09098651 |
WMT, CASTER WHEEL Price: Call Us |
| 28 |
00185400 |
SPROCKET, #40 IDLER Price: $134.95 |
| 29 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 30 |
06200301 |
BLT,RHSN .38-16X2.25 G5 ZCC This part replaces 06213400. Price: $3.95 |
| 31 |
00516100 |
SPACER .406X.625X.656 Price: $17.45 |
| 32 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 33 |
09099400 |
PLATE, IDLER ADJUSTMENT Price: $54.90 |
| 34 |
05977400 |
BLT, .31-24X1.50 GR8 YWZC FTD Price: $4.95 |
| 35 |
06309100 |
WSHR-FL-STL.406X1.125X.25 YWZC Price: $9.95 |
| 36 |
06401121 |
WSHR,FLT .406X1.375X.135 ZCC This part replaces 06442400. Price: $5.45 |
| 37 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
