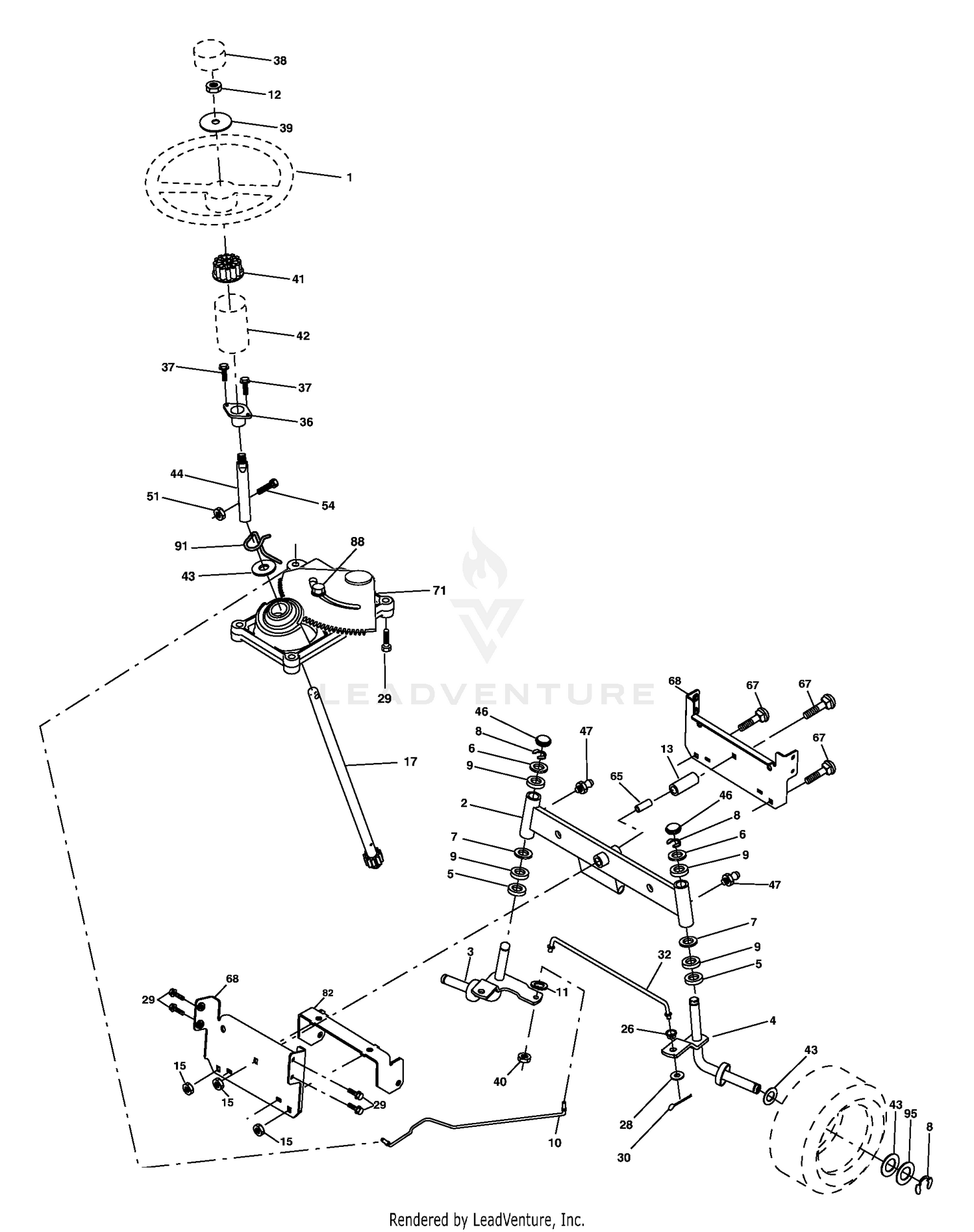

| Ref | Part Number | Description |
|---|
| 1 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 1 |
140044X428 |
Wheel Steering Price: Call Us |
| 2 |
175131 |
Axle Asm Price: Call Us |
| 2 |
62-5550 |
DECAL Price: $9.32 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
69-8510-01 |
COVER-TOWER, STEERING Price: $72.13 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 6 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 7 |
233-17 |
KNOB Price: $10.58 |
| 8 |
106-0483 |
STEERING TOWER PANEL ASM Price: $50.25 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 9 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
107-2562 |
NUT-HEX Price: $19.95 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Price: Call Us |
| 13 |
136518 |
Spacer earing Axle Front Price: Call Us |
| 13 |
44-2212 |
AMBER INDICATOR LIGHT ASM Price: $72.17 |
| 15 |
145212 |
Hex flange Lock Price: Call Us |
| 15 |
32144-64 |
TSCREW-HWH Price: $5.77 |
| 16 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 17 |
33115-030 |
SCREW-HH Price: $0.68 |
| 18 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 19 |
106-0293-03 |
BRACKET-GEAR, STEERING Price: $59.65 |
| 20 |
31-0390 |
DISC-FRICTION Price: $11.25 |
| 21 |
20-9500 |
WASHER Price: $3.53 |
| 22 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 23 |
69-7740-03 |
STEERING GEAR SUPPORT ASM Price: $53.33 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
69-7760-03 |
STEERING GEAR LINK ASM Price: $49.96 |
| 26 |
106-0271 |
COLUMN-STEERING Price: $303.84 |
| 26 |
126847X |
Bushing Link Drag Blk LR Price: Call Us |
| 27 |
130-7942 |
VALVE-STEERING,CONTROL This part replaces 108-1520. Price: $1,254.29 |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 28 |
340-1 |
FITTING-STRAIGHT Price: $10.19 |
| 29 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
32128-23 |
NUT-HF Price: $1.51 |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 31 |
69-5500 |
HOSE ASM Price: $95.30 |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 32 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 33 |
28-0380 |
SPACER-AXLE, FRONT Price: $2.37 |
| 34 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 35 |
325-5 |
SCREW-HH Price: $1.20 |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 36 |
46-1600 |
SPACER Price: $4.40 |
| 37 |
106-0331-03 |
ROD-LATCH, BRAKE Price: $100.63 |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
140045X428 |
Cap Wheel Steer Ayp Price: Call Us |
| 38 |
69-8160-01 |
STEERING TOWER ASM Price: $377.45 |
| 39 |
19183812 |
Washer 9/16 x 2-3/8 Price: Call Us |
| 39 |
69-9230 |
SHAFT-PIVOT, STEERING Price: $63.94 |
| 40 |
69-1560-03 |
DISCONTINUED Price: Call Us |
| 40 |
73540600 |
Nut Crownlock 3/8-24 Price: Call Us |
| 41 |
186737 |
Adaptor Wheel Strg Price: Call Us |
| 41 |
98-1459 |
DECAL Price: $3.93 |
| 42 |
145054X428 |
Boot Dash Mtl Steering Blk Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 44 |
180640 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 x 1-1/4 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt RDHD SQNK 3/8-16 x 2 1/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
| 91 |
175553 |
Clip Steering Price: Call Us |
