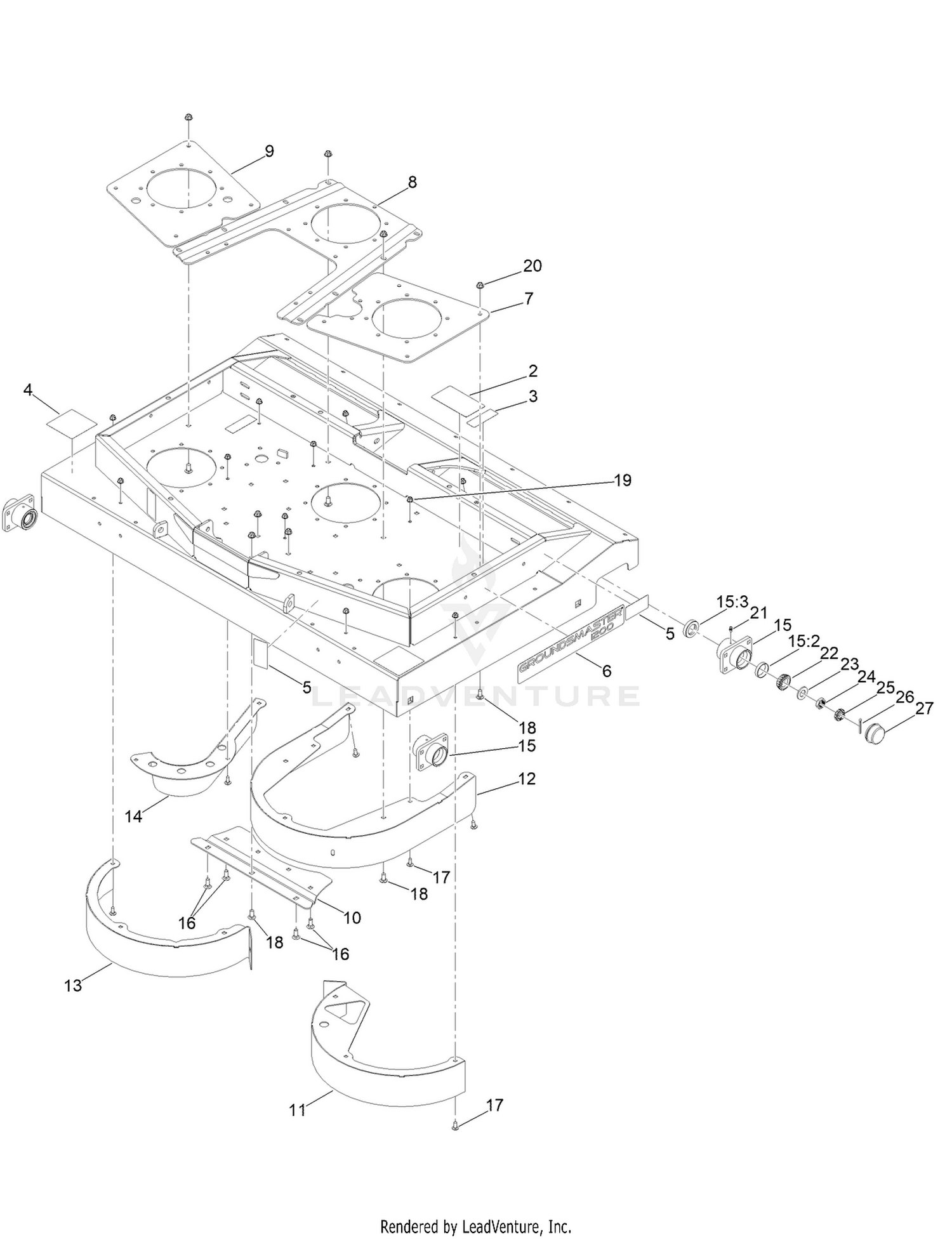

Deck Assembly No. 161-1768
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 138-3078 | DECAL-ROUTING, BELT Price: $10.60 |
| 3 | 117-4979 | DECAL-WARNING Price: $12.04 |
| 4 | 120-6604 | DECAL-DANGER Price: $9.40 |
| 5 | 125-6110 | DECAL-DANGER, CRUSHING Price: $13.78 |
| 6 | 138-3085 | DECAL Price: $37.30 |
| 7 | 139-3181-01 | PLATE-DOUBLER, LH Price: $48.42 |
| 8 | 139-3182-01 | PLATE-DOUBLER, CENTER Price: $105.24 |
| 9 | 139-3183-01 | PLATE-DOUBLER, RH Price: $48.42 |
| 10 | 140-0030-0P | STIFFENER-DECK Price: $33.63 |
| 11 | 139-3188-0P | CHAMBER-LH Price: Call Us |
| 12 | 139-3189-0P | CHAMBER-CENTER Price: $241.59 |
| 13 | 139-3190-0P | CHAMBER-RH Price: Call Us |
| 14 | 137-3665-0P | BAFFLE-INNER Price: $190.79 |
| 15 | 161-1777 | HUB ASM Price: $101.38 |
| 16 | 3231-2 | BOLT-CARR Price: $0.81 |
| 17 | 3230-23 | SCREW-CARR Price: $0.89 |
| 18 | 3231-27 | SCREW-CARR Price: $0.54 |
| 19 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 20 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 21 | 302-5 | FITTING-GREASE Price: $0.59 |
| 22 | 254-94 | BEARING-CONE, TAPERED Price: $8.48 |
| 23 | 110-5054 | WASHER-FLAT Price: $1.75 |
| 24 | 117-8260 | NUT Price: $19.27 |
| 25 | 93-0307 | NUT-LOCK, RETAINER Price: $3.36 |
| 26 | 3272-18 | PIN-COTTER Price: $0.54 |
